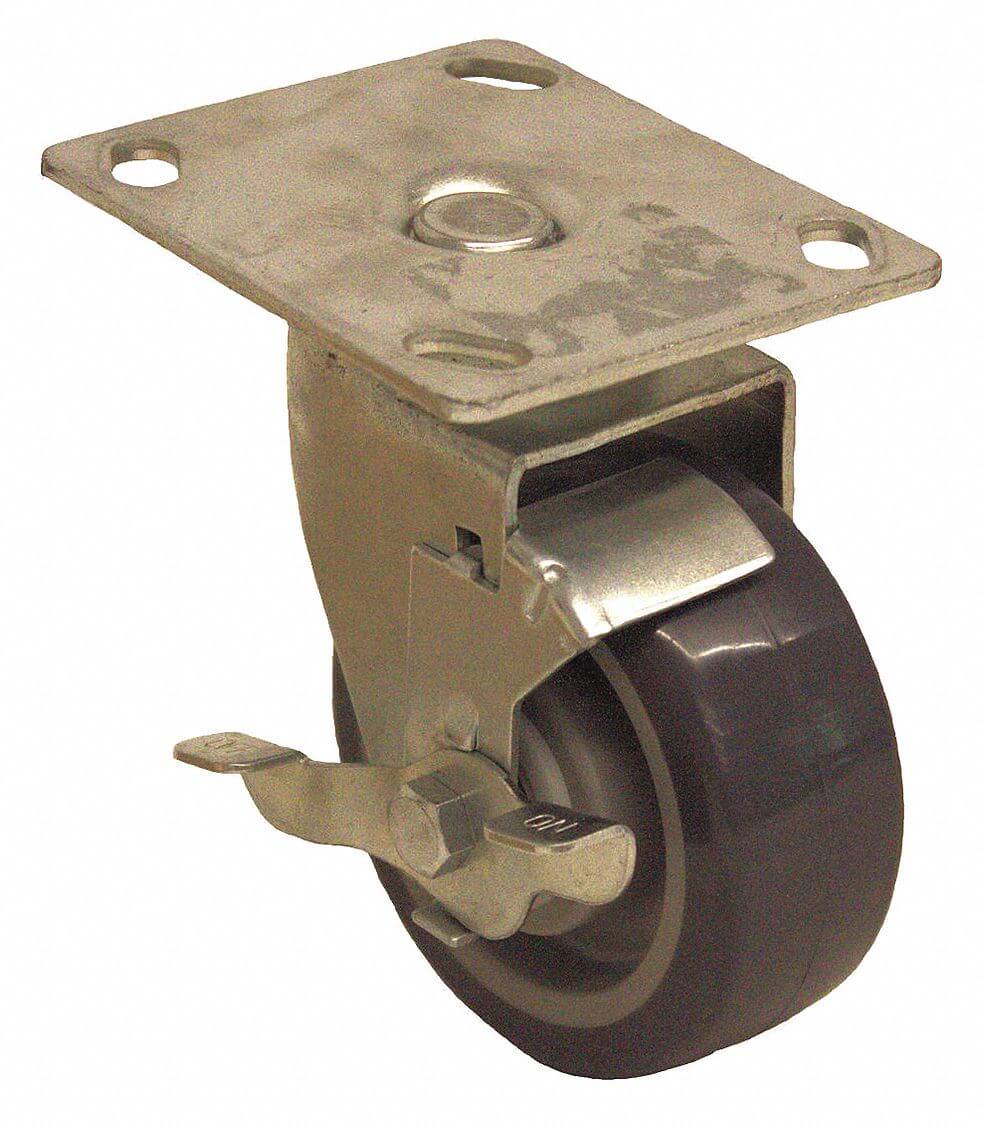

GRAINGER P13S-RP050D-14-SB Standard Plate Caster, Rubber, 240 Lbs. Load Rating, 5 Inch Wheel Dia.
Get it by Monday, Aug 31
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€38.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Food Service Racks And Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts |
| Bearing Type | Delrin |
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Core Material | Plastic |
| Features | Floor Protective, Noise Reduction |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hardness | Shore A 90 |
| Hole Pattern | B |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 240 lbs. |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 6 1/4" |
| Mounting Plate | 4" x 4.5" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. | -15°F to +160°F |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Raceway Type | Double Ball |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 3 7/8" |
| Tread Shape | Standard |
| Wheel Bearing Type | Delrin |
| Wheel Color | Gray |
| Wheel Core Material | Plastic |
| Wheel Dia. | 5" |
| Wheel Material | Thermoplastic Rubber |
| Wheel Width | 1 1/2" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 90 Shore A , Firm |
| Wheel/tread Material | Thermoplastic Rubber |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Country of Origin | China |
Product Variants
| Product | Model | Outside Bolt Hole Spacing | Wheel Dia. | Inside Bolt Hole Spacing | Mounting Height | Wheel Width | Load Rating | Wheel Bearing Type | Wheel/tread Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDP-G-23 | 3 3/8" x 5 1/4" | 6" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | 1 | €342.25 | |
 |
CDP-G-24 | 3 3/8" x 5 1/4" | 6" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | 1 | €250.93 | |
 |
CDP-G-31 | 3 3/8" x 5 1/4" | 8" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €252.72 | |
 |
CDP-G-32 | 3 3/8" x 5 1/4" | 8" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €182.15 | |
 |
S-526-D-BS-SS | 2 5/8" x 3 5/8" | 6" | 3" x 3" | - | 2" | - | Roller | Polyurethane | 1 | €246.95 | |
 |
CDP-G-33 | 3" x 3" | 8" | 2 5/8" x 3 5/8" | 9 1/2" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €256.87 | |
 |
65-GTB-0620-R | 2 5/8" x 3 5/8" | 6" | 2 5/8" x 3" | 7 1/2" | 2" | 1500 lbs. | Precision Ball | Elastomer | 1 | €98.74 |
