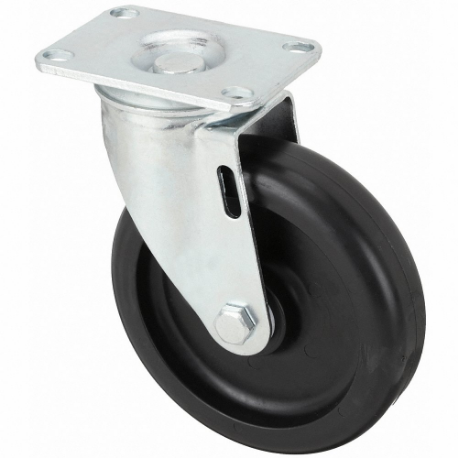

GRAINGER P12S-PB040D-P2 Sanitary Plate Caster, 4 Inch Dia, 5 1/8 Inch Height, C
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€15.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Food Service Racks And Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Black |
| Features | Push/Pull Force Reduction |
| Frame Finish | Zinc Plated |
| Included | Complete Caster |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 2 3/8" x 3 3/8" |
| Load Rating | 275 lbs. |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 5 1/8" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 3 1/8" x 4 1/8" |
| Mounting Plate Size & Bolt Hole Pattern | 3 1/8" X 4 1/8" ( C ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Operating Temp. | -15°F to +160°F |
| Outside Bolt Hole Spacing | 2 3/8" x 3 1/2" |
| Swivel Construction | Kingspin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 1/4" |
| Tread Material, Wheel Material | Polypropylene |
| Tread Shape | Standard |
| Wheel Bearing Type | Delrin |
| Wheel Core Material | Plastic |
| Wheel Dia. | 4" |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 65 Shore D , Hard |
Shipping Info:
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Dia. | Mounting Plate Size | Wheel Width | Wheel Bearing Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
406P68 | Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 4" | 3 3/4" x 4 1/2" | 1 1/2" | Roller | 1 | €35.68 | |
 |
P21-RY060R-14-SET | Rigid, Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 6" | 4.5" x 4" | 2" | Roller | 4 | €182.81 | |
 |
400K63 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 3 1/2" | 2 1/2" x 3 5/8" | 1 1/4" | Delrin | 1 | €20.57 | |
 |
P12S-R035D-12 | Swivel | C | 1.75" x 2.812" | 1 3/4" x 3 1/16" | 3 1/2" | 2 1/2" x 3 5/8" | 1 1/4" | Delrin | 1 | €9.85 | |
 |
P12S-PRP035B-12 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 3 1/2" | 2 1/2" x 3 5/8" | 1 1/4" | Precision Ball | 1 | €18.07 | |
 |
P21S-PH033R-14 | Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 3 1/4" | 4.5" x 4" | 2" | Roller | 1 | €44.04 | |
 |
400K75 | Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 3" | 3 3/4" x 4 1/2" | 1 1/2" | Roller | 1 | €41.93 |
