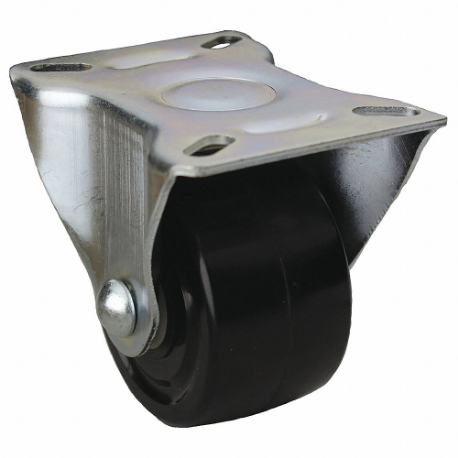

GRAINGER P10R-PH030R-P6-001 Low-Profile Standard Plate Caster, 3 Inch Dia, 3 7/8 Inch Height
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€29.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Rigid |
| Core Color | Black |
| Esd Conductive | No |
| Features | Low Rolling Resistance |
| For Axle Dia. | 3/8" |
| For Surface Type | Concrete |
| Frame Color | Silver |
| Frame Construction | Stamped |
| Frame Finish | Zinc Plated |
| Hub Length | 1 7/8" |
| Includes Fasteners | No |
| Includes Mounting Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1.75" x 3" |
| Load Rating | 500 lbs. |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 3 7/8" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 3 1/8" x 4 1/8" |
| Mounting Plate Size & Bolt Hole Pattern | 3 1/8" X 4 1/8" ( A ) |
| Mounting Plate Thickness | 0.188" |
| Non-marking | Yes |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -20°F to +250°F |
| Outside Bolt Hole Spacing | 2 3/8" x 3 3/8" |
| Overall Wheel Width | 1 13/16" |
| Standards | Icwm |
| Swivel Bearing Seal Type | Open |
| Swivel Construction | Kingspin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Tread Material, Wheel Material | Phenolic |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Ball |
| Wheel Core Material | Phenolic |
| Wheel Core Type | Solid |
| Wheel Diameter | 3" |
| Wheel Type | Flat Free |
| Wheel Width | 1 3/4" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Outside Bolt Hole Spacing | Mounting Plate Size | Inside Bolt Hole Spacing | Wheel Width | Load Rating | Mounting Plate Bolt Hole Pattern | Wheel Bearing Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P12RX-PRP050B-12 | Rigid | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 3/4" x 2 13/16" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €83.27 | |
 |
P12SX-PRP050K-12 | Swivel | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 3/4" x 2 13/16" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €176.21 | |
 |
P12SX-PRP060K-12-WB | Swivel | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 3/4" x 2 13/16" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €91.29 | |
 |
P12SX-PRP060K-12 | Swivel | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1.75" x 2.812" | 1 1/4" | 325 lbs. | C | Precision Ball | 1 | €84.15 | |
 |
LEX-POEV 80XR-SG | Swivel | 2 3/8" x 3 5/32" | 3 3/8" x 3 15/16" | 2 3/8" x 3 5/32" | 1 1/4" | 305 lbs. | D | Roller | 1 | €80.61 | |
 |
LEX-PO 80XR-FI | Swivel | 2 3/8" x 3 5/32" | 3 3/8" x 3 15/16" | 2 3/8" x 3 5/32" | 1 1/4" | 330 lbs. | D | Roller | 1 | €99.91 | |
 |
LEX-POEV 80XR-FI-SG | Swivel | 2 3/8" x 3 5/32" | 3.375" x 3.938" | 2.375" x 3.156" | 1 1/4" | 305 lbs. | D | Roller | 1 | €106.83 |
