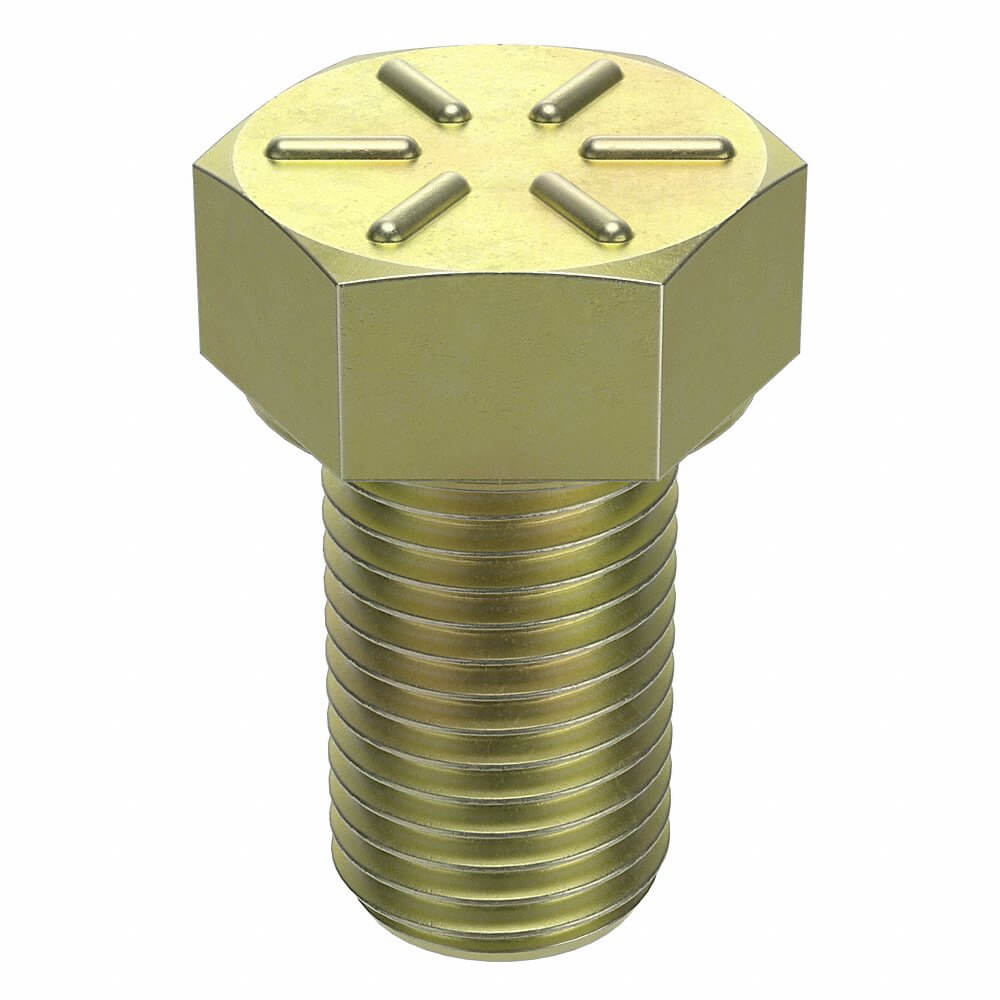

GRAINGER N04360.037.0075 Hex Head Cap Screw, 3/8 In - 24 Thread Size, Steel, 3/4 In Lg., 15/64 In Head Ht., Gr. 8
Item: AH8HLJModel: N04360.037.0075Cross Ref: 38TN51
7 In Stock
Ships within 2 days via
5.00% off
€33.77 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Not Applicable |
| Drive | Hex |
| Fastener Length | 3/4" |
| Finish | Zinc Yellow |
| Grade | Grade 8 |
| Hardness | Rockwell C33-C39 |
| Head Height | 15/64" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 9/16" |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 3/4" |
| Material | Steel |
| Material Grade/class | Grade 8 |
| Material Quality Standards | Sae J429 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 3/4" |
| Overall Length | 3/4" |
| Rockwell Hardness | Hrc33 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 3/4" |
| Thread Size | 3/8"-24 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.82 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U04360.037.0425 | Partially Threaded | 1" | 4 1/4" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 10 | €129.43 | |
|
U04360.037.0450 | Partially Threaded | 1" | 4 1/2" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 10 | €17.92 | |
|
U04360.037.0475 | Partially Threaded | 1" | 4 3/4" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 10 | €113.52 | |
|
U04360.037.0525 | Partially Threaded | 1" | 5 1/4" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 10 | €225.66 | |
|
U04360.037.0575 | Partially Threaded | 1" | 5 3/4" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 10 | €178.67 | |
 |
U04360.037.1000 | Partially Threaded | 1 1/4" | 10" | 1 1/4" | 15/64" | 9/16" | Right Hand | Grade 8 | 5 | €137.11 | |
|
U04360.037.0075 | Fully Threaded | 3/4" | 3/4" | 3/4" | 15/64" | 9/16" | Right Hand | Grade 8 | 50 | €37.98 |
