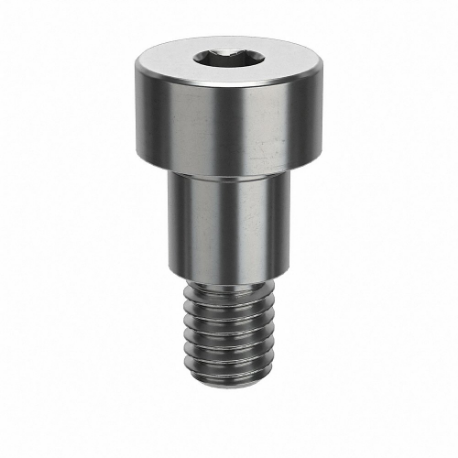

GRAINGER MS51576-2 Shoulder Screw, 4-40 Thread Size, 3/16 In Shoulder Lg., 1/8 In Head Ht., 1/4 In Head Dia.
Item: CQ4MVFModel: MS51576-2Cross Ref: 5GMH4
7 In Stock
Ships within 2 days via
10.00% off
€30.86 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | MS51576-2, QQ-P-35 TYPE 2 |
| Display Qty | 5 |
| Drive Size | 5/64" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B262 |
| Head Dia. | 1/4" |
| Head Height | 1/8" |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Precision Screw | No |
| Rockwell Hardness | B262 Maximum |
| Shoulder Dia. | 1/8" |
| Shoulder Dia. Tolerance | -0.004" to 0" |
| Shoulder Diameter Tolerance | 0.004" to 0" |
| Shoulder Length | 3/16" |
| Shoulder Length Tolerance | -0.003" to +0.003" |
| System Of Measurement | Imperial |
| Tensile Strength | Not Rated |
| Thread Fit | 2A |
| Thread Length | 5/32" |
| Thread Size | #4-40 |
| Type | Mil Spec Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
