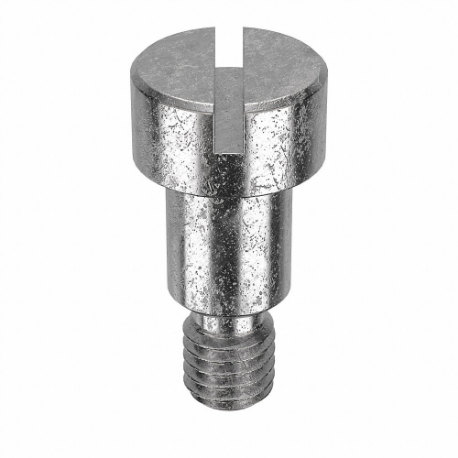

GRAINGER MS51575-19 Shoulder Screw, 10-32 Thread Size, 5/16 In Shoulder Lg., 3/16 In Head Ht., Mil Spec Shoulder Screw
Item: CQ4NPQModel: MS51575-19Cross Ref: 5GMG3
7 In Stock
Ships within 2 days via
10.00% off
€39.73 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | MS51575-19, QQ-P-35 TYPE 2 |
| Display Qty | 5 |
| Drive Type | Slotted |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B262 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Precision Screw | No |
| Rockwell Hardness | B262 Maximum |
| Shoulder Dia. | 1/4" |
| Shoulder Dia. Tolerance | -0.004" to 0" |
| Shoulder Diameter Tolerance | 0.004" to 0" |
| Shoulder Length | 5/16" |
| Shoulder Length Tolerance | -0.003" to +0.003" |
| System Of Measurement | Imperial |
| Tensile Strength | Not Rated |
| Thread Fit | 2A |
| Thread Length | 1/4" |
| Thread Size | #10-32 |
| Type | Mil Spec Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
