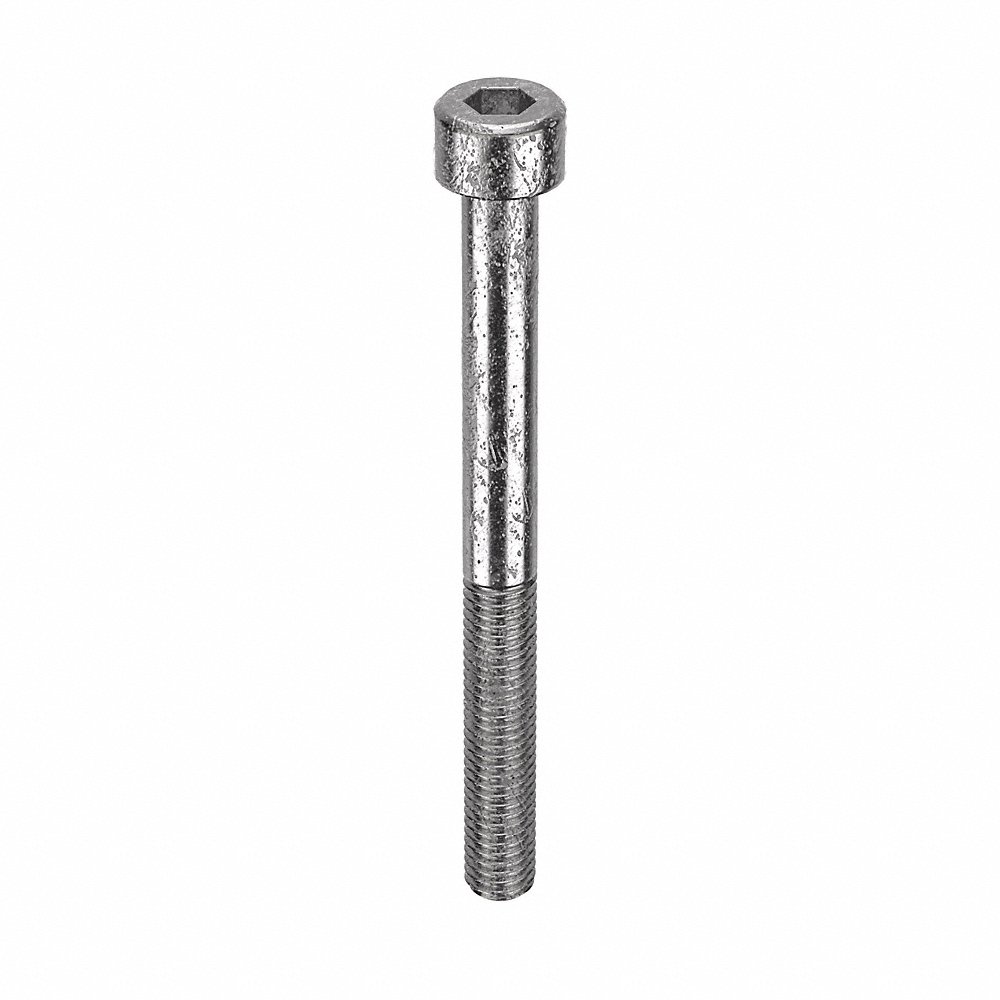

GRAINGER M55050.050.0055 Socket Head Cap Screw, M5x0.8 Thread Size, Cylindrical, 55 mm Lg., 5 mm Head Ht.
Item: AH7XXLModel: M55050.050.0055Cross Ref: 38EA77
7 In Stock
Ships within 2 days via
10.00% off
€34.16 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Grade | Grade 316 |
| Combined Material | Stainless Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 50 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade A4 |
| Head Dia. | 8.5 mm |
| Head Height | 5 mm |
| Head Type | Standard |
| Length | 55 mm |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Material Grade/class | 316 |
| Material Type | Stainless Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 700 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 25 mm |
| Screw Length | 55 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 101500 psi |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Size | M5 x 0.8 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51041.006.0012 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 1/8" | 80000 psi | Rockwell B80-C32 | 100 | €16.27 | |
 |
U51041.006.0018 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 3/16" | 80000 psi | Rockwell B80-C32 | 100 | €15.05 | |
 |
U51041.006.0025 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 1/4" | 80000 psi | Rockwell B80-C32 | 100 | €17.43 | |
 |
U51041.006.0031 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 5/16" | 80000 psi | Rockwell B80-C32 | 100 | €14.59 | |
 |
U51041.006.0037 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 3/8" | 80000 psi | Rockwell B80-C32 | 100 | €18.75 | |
 |
U51041.006.0050 | #0-80 | Fully Threaded | 0.05" | 0.096" | 0.06" | 1/2" | 80000 psi | Rockwell B80-C32 | 100 | €37.29 | |
 |
U51041.007.0012 | #1-72 | Fully Threaded | 1/16" | 0.118" | 0.073" | 1/8" | 80000 psi | Rockwell B80-C32 | 100 | €25.65 |
