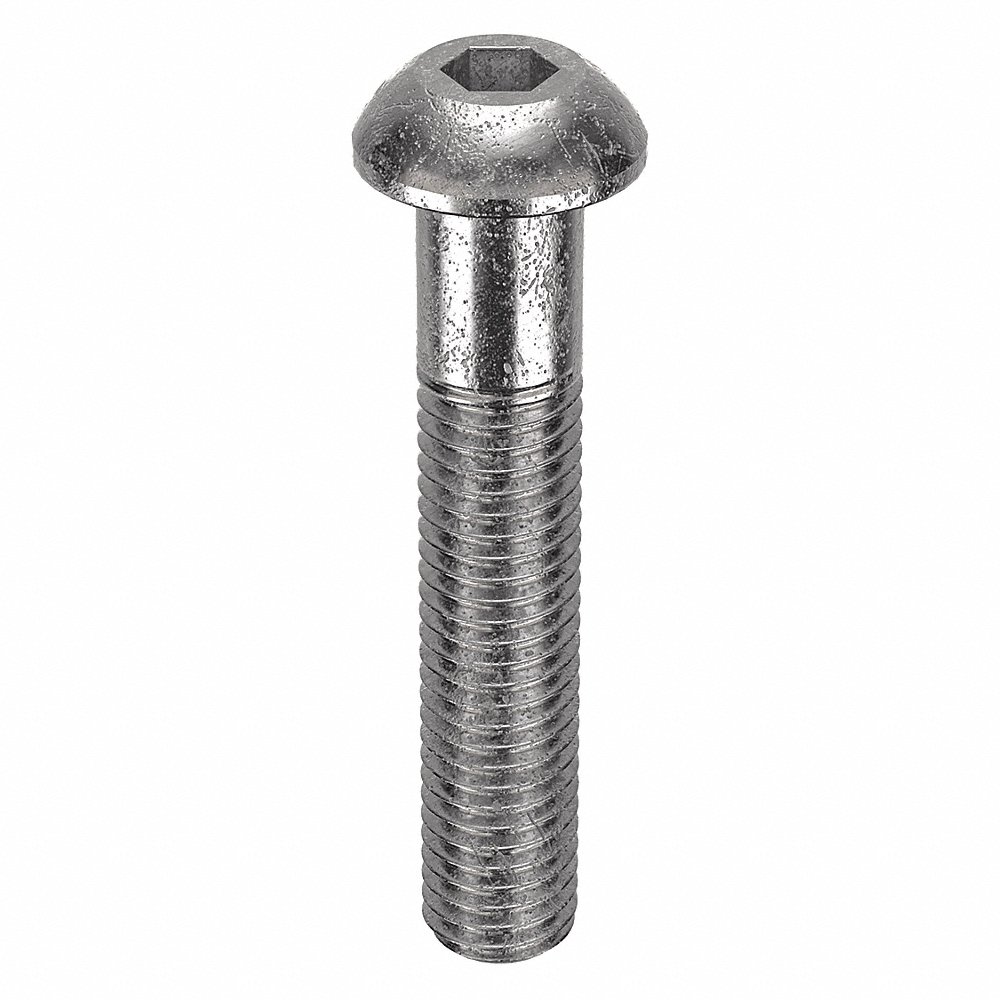

GRAINGER M51030.100.0055 Socket Head Cap Screw, M10x1.5 Thread Size, Button, 55 mm Lg., 5.5 mm Head Ht.
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€38.41 /pkg. of 25
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | 18-8 Stainless Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 25 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade A2 |
| Head Dia. | 17.5 mm |
| Head Height | 5.5 mm |
| Head Type | Button |
| Length | 55 mm |
| Material | Stainless Steel |
| Material Grade | Grade 18-8 |
| Material Grade/class | 18-8 |
| Material Type | Stainless Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 700 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 40 mm |
| Screw Length | 55 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 101500 psi |
| Thread Direction | Right Hand |
| Thread Length | 40 mm |
| Thread Size | M10 x 1.5 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.82 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51030.008.0075 | #2-56 | Fully Threaded | 0.05" | 0.164" | 0.0469" | 3/4" | 85000 psi | Rockwell B80-C32 | 100 | €22.78 | |
 |
U51030.013.0150 | #6-32 | Fully Threaded | 5/64" | 1/4" | 0.073" | 1 1/2" | 85000 psi | Rockwell B80-C32 | 100 | €24.78 | |
 |
U51030.019.0150 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 1 1/2" | 85000 psi | Rockwell B80-C32 | 100 | €40.73 | |
 |
U51030.019.0200 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 2" | 85000 psi | Rockwell B80-C32 | 100 | €83.60 | |
 |
U51030.025.0100 | 1/4"-20 | Fully Threaded | 5/32" | 7/16" | 0.132" | 1" | 85000 psi | Rockwell B80-C32 | 100 | €25.57 | |
 |
U51030.025.0125 | 1/4"-20 | Fully Threaded | 5/32" | 7/16" | 0.132" | 1 1/4" | 85000 psi | Rockwell B80-C32 | 100 | €49.60 | |
 |
U51030.025.0150 | 1/4"-20 | Fully Threaded | 5/32" | 7/16" | 0.132" | 1 1/2" | 85000 psi | Rockwell B80-C32 | 100 | €51.42 |
