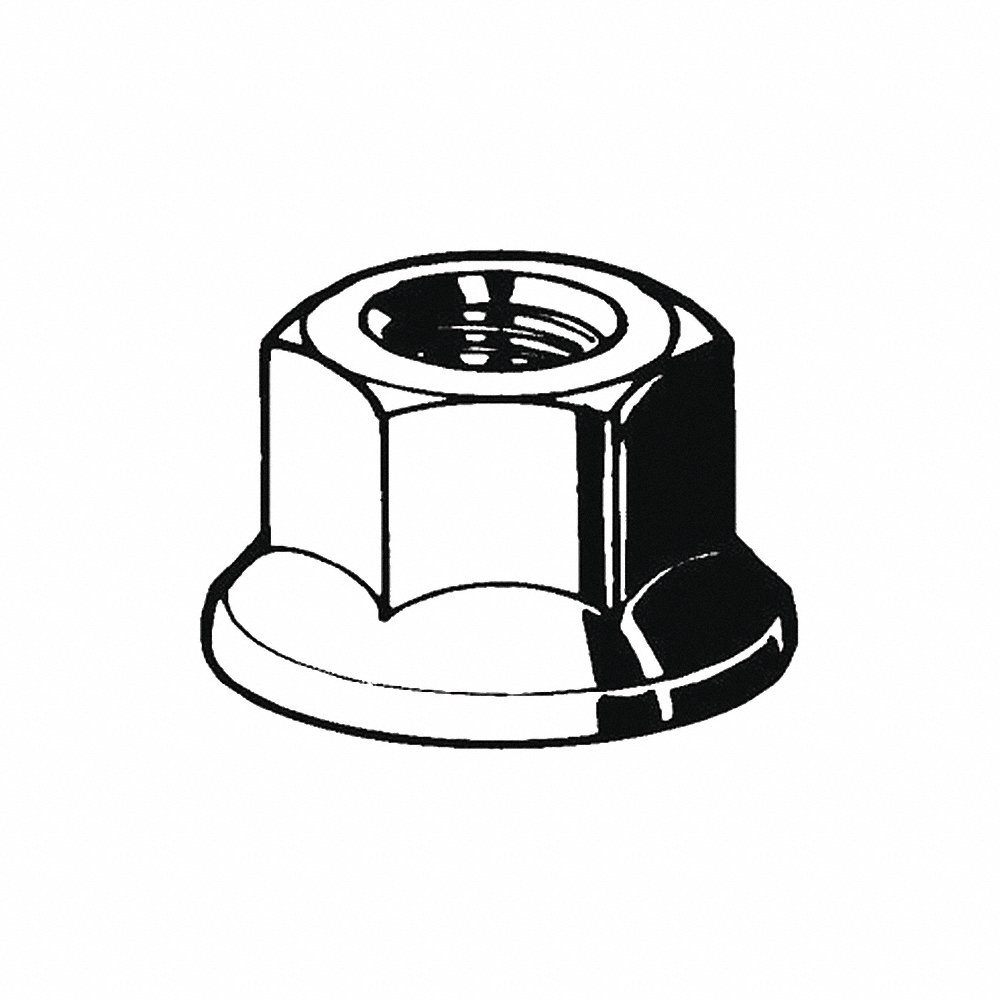

GRAINGER M11590.140.0001 Locknut, M14x2 Thread Size, Steel, 14 mm Nut Ht., 29.9 mm Flange Dia., 21 mm Wd.
Item: AH7VHVModel: M11590.140.0001Cross Ref: 38DH64
7 In Stock
Ships within 2 days via
5.00% off
€80.81 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lock Nut |
| Class | Class 8 |
| Dimensional Standards | Din 6923 |
| Finish | Zinc Plated |
| Flange Dia. | 29.906 mm |
| Hex Height | 14 mm |
| Hex Type | Flange Nut |
| Hex Width | 21 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Nut Height | 14 mm |
| Nut Style | Flange |
| Nut Type | Flange Nut |
| Nut Type | Flange |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Size | M14 x 2 |
| Thread Type | Metric |
| Width | 21 mm |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Hex Width | Hex Height | Flange Dia. | Nut Style | Hex Type | Material | Class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M11590.050.0001 | M5 x 0.8 | 8 mm | 5 mm | 11.797 mm | Flange | Flange Nut | Steel | Class 8 | 100 | €7.00 | |
 |
M11590.060.0001 | M6 x 1 | 10 mm | 6 mm | 14.2 mm | Flange | Flange Nut | Steel | Class 8 | 100 | €4.59 | |
 |
M11590.080.0001 | M8 x 1.25 | 13 mm | 8 mm | 17.9 mm | Flange | Flange Nut | Steel | Class 8 | 100 | €24.95 | |
 |
M11590.100.0001 | M10 x 1.5 | 15 mm | 10 mm | 21.8 mm | Flange | Flange Nut | Steel | Class 8 | 100 | €29.23 | |
 |
M11590.120.0001 | M12 x 1.75 | 18 mm | 12 mm | 26 mm | Flange | Flange Nut | Steel | Class 8 | 100 | €38.12 | |
|
M11590.160.0001 | M16 x 2 | 24 mm | 16 mm | 34.5 mm | Flange | Flange Nut | Steel | Class 8 | 50 | €44.51 | |
|
M11590.200.0001 | M20 x 2.5 | 30 mm | 20 mm | 42.797 mm | Flange | Flange Nut | Steel | Class 8 | 25 | €82.67 |
