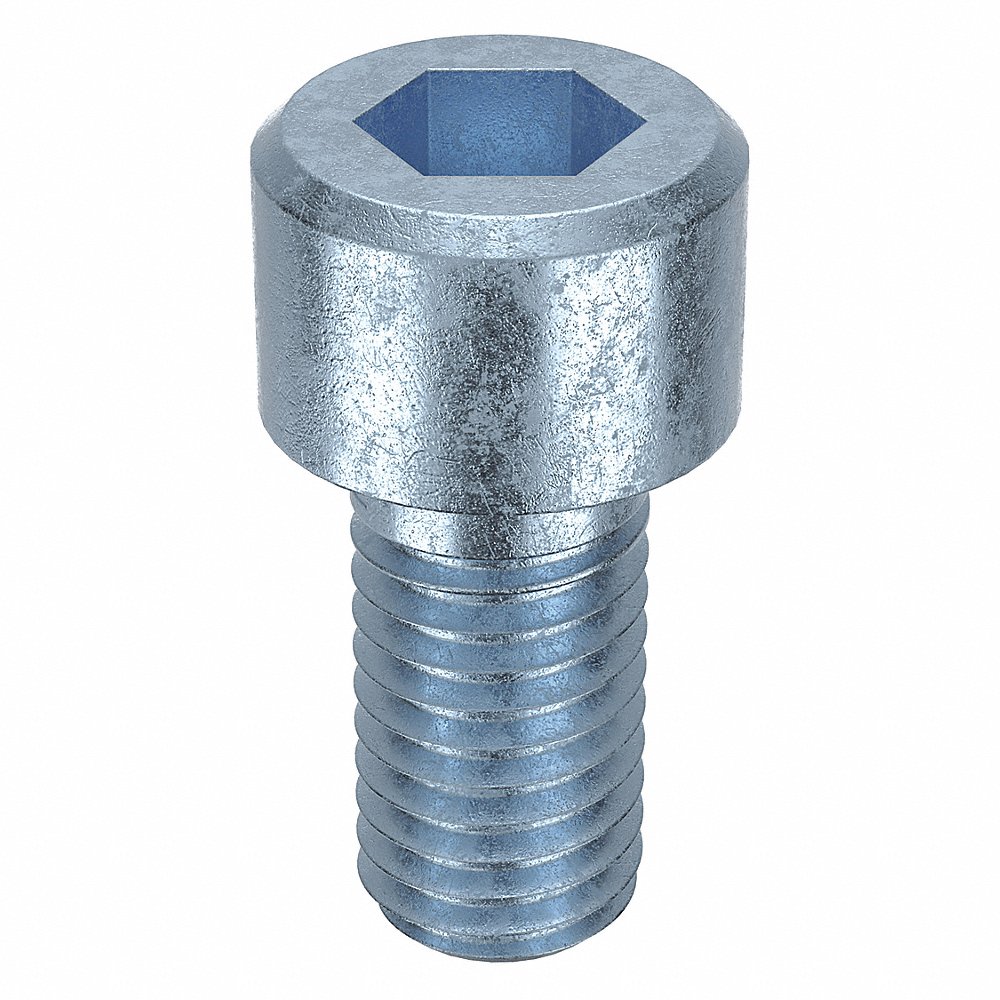

GRAINGER M07160.100.0020 Socket Head Cap Screw, M10x1.5 Thread Size, Cyl., 20 mm Lg., 10 mm Head Ht.
Item: AH7UPMModel: M07160.100.0020Cross Ref: 38DD62
7 In Stock
Ships within 2 days via
5.00% off
€66.63 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 8.8 |
| Combined Material & Grade | Class 8 Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 100 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 16 mm |
| Head Height | 10 mm |
| Head Type | Standard |
| Length | 20 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Min. Thread Length | 20 mm |
| Screw Length | 20 mm |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 20 mm |
| Thread Size | M10 x 1.5 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07001.011.0025 | 0.183" | 3/32" | 0.112" | Fully Threaded | 1/4" | Grade Steel | 1/4" | -50°F to +550°F | 100 | €18.40 | |
 |
U07001.011.0037 | 0.183" | 3/32" | 0.112" | Fully Threaded | 3/8" | Grade Steel | 3/8" | -50°F to +550°F | 100 | €23.52 | |
 |
U07001.011.0050 | 0.183" | 3/32" | 0.112" | Fully Threaded | 1/2" | Grade Steel | 1/2" | -50°F to +550°F | 100 | €19.84 | |
 |
U07001.011.0075 | 1/4" | 3/32" | 0.112" | Fully Threaded | 3/4" | Grade Steel | 3/4" | -50°F to +550°F | 100 | €20.80 | |
 |
U07001.011.0100 | 1/4" | 3/32" | - | Partially Threaded | 3/4" | Grade Steel | 3/4" | -50°F to +550°F | 100 | €70.70 | |
 |
U07001.013.0062 | 1/4" | 7/64" | 1/8" | Fully Threaded | - | - | 5/8" | -50°F to +550°F | 100 | €18.84 | |
 |
U07001.013.0075 | 0.226" | 7/64" | 0.138" | - | 3/4" | Grade Steel | 3/4" | -50°F to +550°F | 100 | €20.46 |
