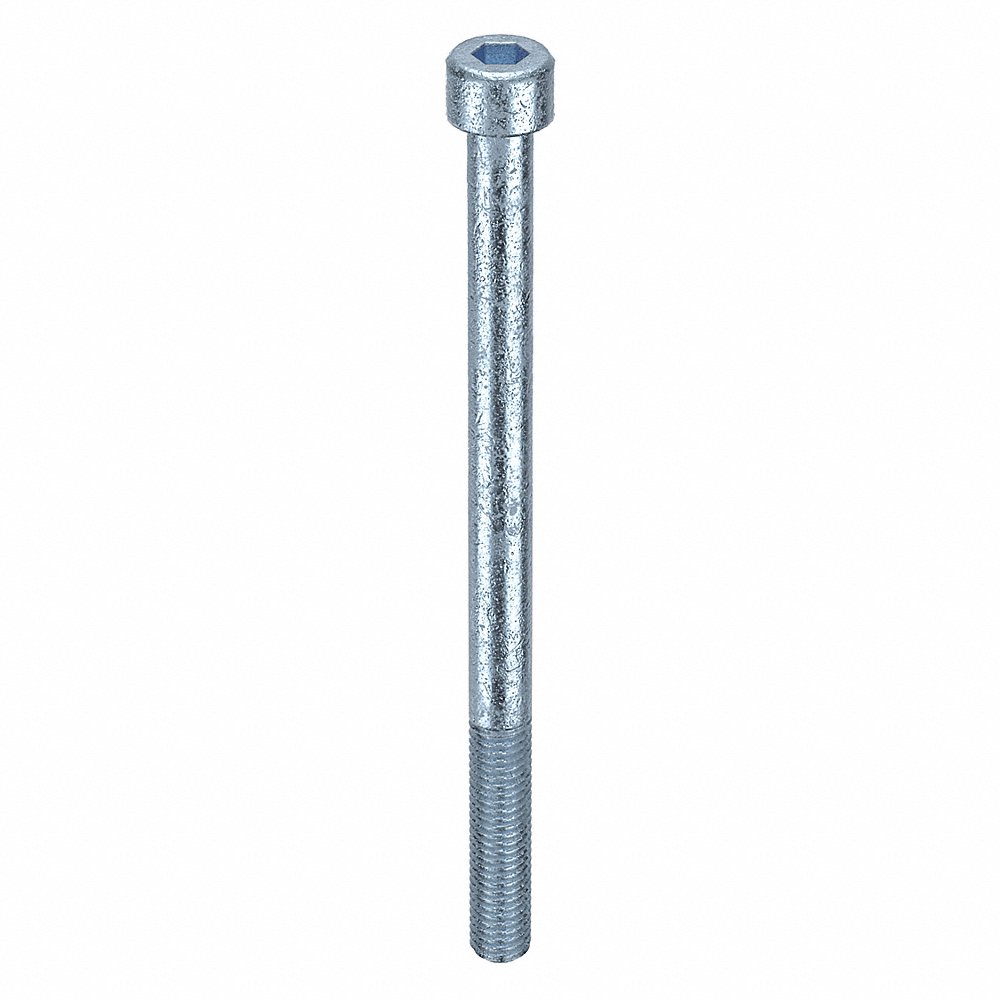

GRAINGER M07160.080.0120 Socket Head Cap Screw, M8x1.25 Thread Size, Cyl., 120 mm Lg., 8 mm Head Ht.
Item: AH7UPFModel: M07160.080.0120Cross Ref: 38DD56
7 In Stock
Ships within 2 days via
10.00% off
€86.86 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 8.8 |
| Combined Material & Grade | Class 8 Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 50 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 13 mm |
| Head Height | 8 mm |
| Head Type | Standard |
| Length | 120 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 35 mm |
| Screw Length | 120 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 35 mm |
| Thread Size | M8 x 1.25 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07001.011.0025 | #4-40 | Fully Threaded | 3/32" | 0.183" | 0.112" | 1/4" | 180000 psi | Rockwell C37-C45 | 100 | €19.17 | |
 |
U07001.011.0037 | #4-40 | Fully Threaded | 3/32" | 0.183" | 0.112" | 3/8" | 180000 psi | Rockwell C37-C45 | 100 | €24.49 | |
 |
U07001.011.0050 | #4-40 | Fully Threaded | 3/32" | 0.183" | 0.112" | 1/2" | 180000 psi | Rockwell C37-C45 | 100 | €20.66 | |
 |
U07001.011.0075 | #4-40 | Fully Threaded | 3/32" | 1/4" | 0.112" | 3/4" | 180000 psi | Rockwell C37-C45 | 100 | €21.67 | |
 |
U07001.011.0100 | #4-40 | Partially Threaded | 3/32" | 1/4" | - | 3/4" | 180000 psi | Rockwell C37-C45 | 100 | €70.70 | |
 |
U07001.013.0062 | #6-32 | Fully Threaded | 7/64" | 1/4" | 1/8" | 5/8" | 180000 psi | Rockwell C37-C45 | 100 | €19.61 | |
 |
U07001.013.0075 | #6-32 | - | 7/64" | 0.226" | 0.138" | 3/4" | 180000 psi | Rockwell C37-C45 | 100 | €20.46 |
