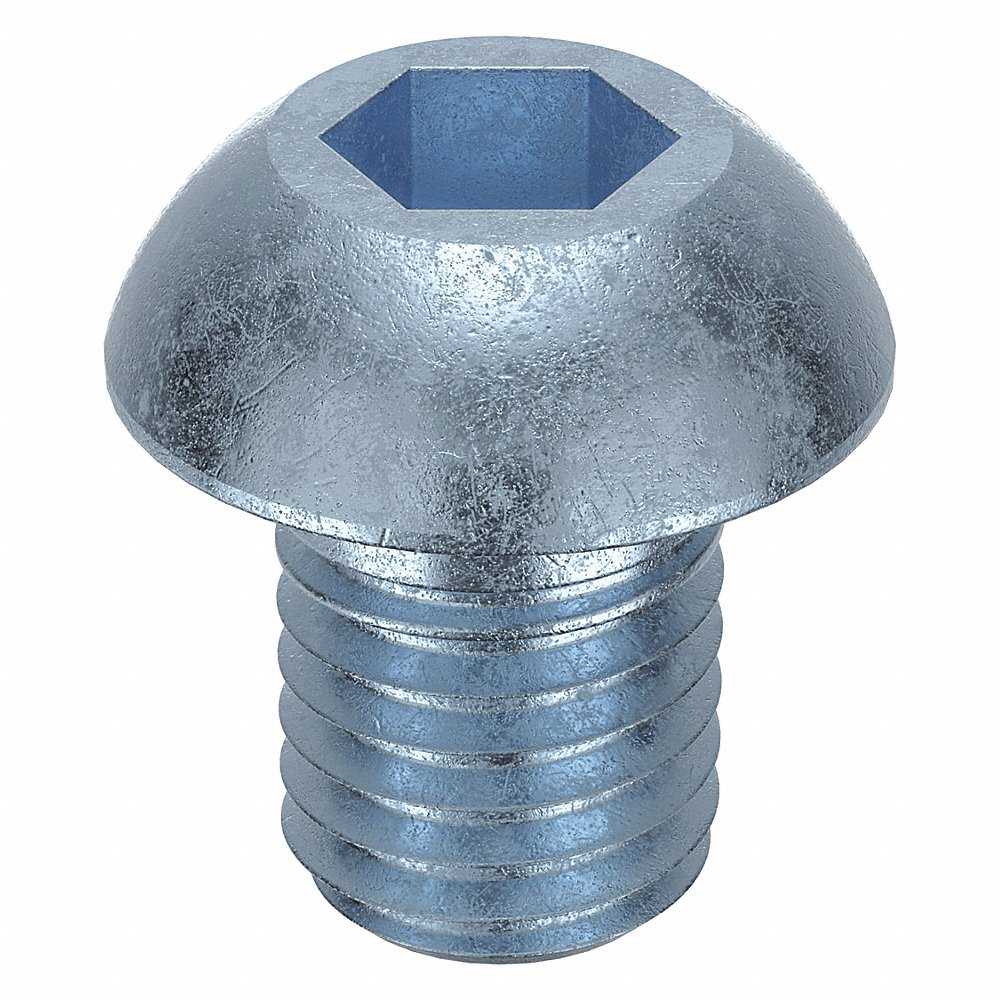

GRAINGER M07151.120.0016 Socket Head Cap Screw, M12x1.75 Thread Size, Button, 16 mm Lg., 6.6 mm Head Ht.
Item: AH7UKBModel: M07151.120.0016Cross Ref: 38DC59
7 In Stock
Ships within 2 days via
5.00% off
€61.22 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 50 |
| Drive Size | 10 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 21 mm |
| Head Height | 6.6 mm |
| Head Type | Button |
| Length | 16 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Min. Thread Length | 16 mm |
| Screw Length | 16 mm |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 16 mm |
| Thread Size | M12 x 1.75 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07151.011.0025 | 0.213" | 1/16" | 0.059" | Fully Threaded | 1/4" | Grade Steel | 1/4" | -50°F to +550°F | 100 | €41.54 | |
 |
U07151.011.0037 | 0.213" | 1/16" | 0.059" | Fully Threaded | 3/8" | Grade Steel | 3/8" | -50°F to +550°F | 100 | €44.76 | |
 |
U07151.011.0050 | 0.213" | 1/16" | 0.059" | Fully Threaded | 1/2" | Grade Steel | 1/2" | -50°F to +550°F | 100 | €36.17 | |
 |
U07151.013.0025 | 1/4" | 5/64" | 0.073" | Fully Threaded | 1/4" | Grade Steel | 1/4" | -50°F to +550°F | 100 | €42.87 | |
 |
U07151.013.0037 | 1/4" | 5/64" | 0.073" | Fully Threaded | 3/8" | Grade Steel | 3/8" | -50°F to +550°F | 100 | €45.45 | |
 |
U07151.013.0050 | 1/4" | 5/64" | 0.073" | Fully Threaded | 1/2" | Grade Steel | 1/2" | -50°F to +550°F | 100 | €42.60 | |
 |
U07151.013.0062 | 1/4" | 5/64" | 1/8" | Fully Threaded | 5/8" | Grade Steel | 5/8" | -50°F to +550°F | 100 | €51.52 |
