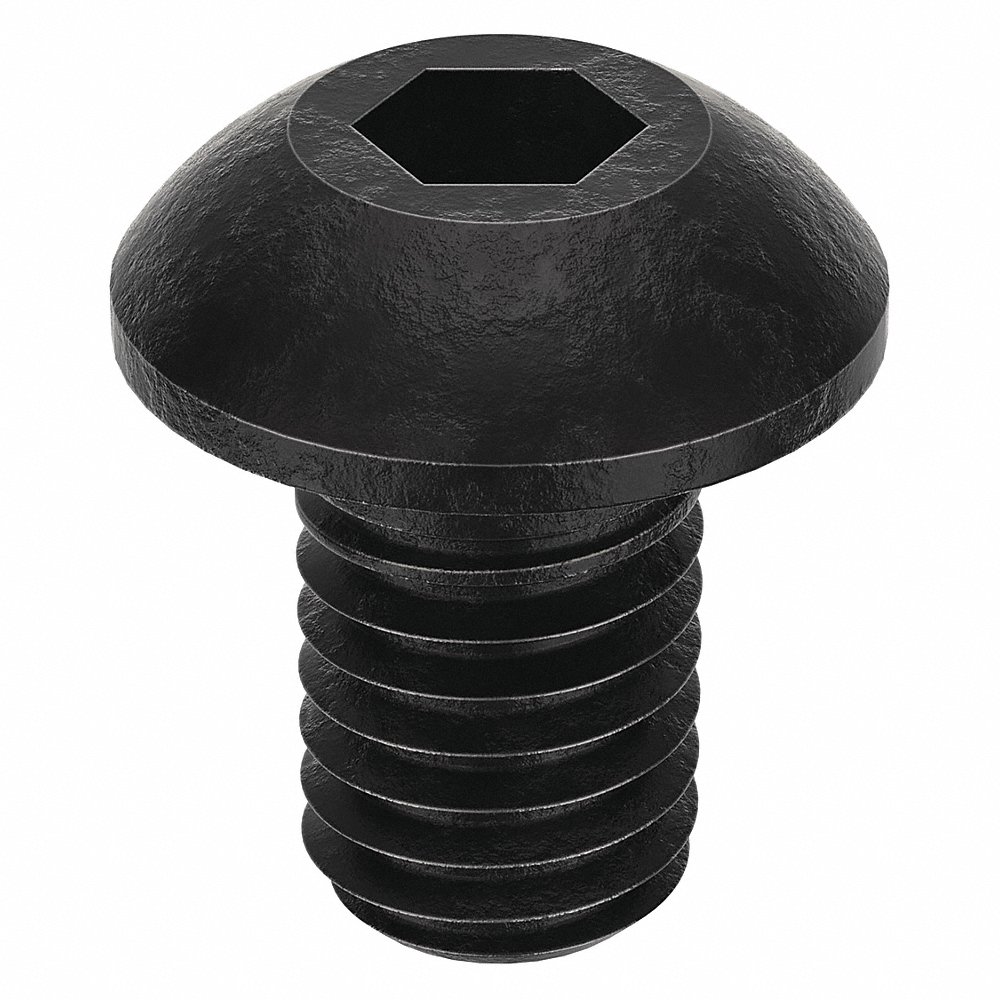

GRAINGER M07150.050.0008 Socket Head Cap Screw, M5x0.8 Thread Size, Button, 8mm Lg., 2.75mm Head Ht., Blk Oxide, Steel
Item: AH7UCXModel: M07150.050.0008Cross Ref: 38DA16
7 In Stock
Ships within 2 days via
10.00% off
€13.29 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 100 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 9.5 mm |
| Head Height | 2.75 mm |
| Head Type | Button |
| Length | 8 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 8 mm |
| Screw Length | 8 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 8 mm |
| Thread Size | M5 x 0.8 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07150.019.0200 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 2" | 145000 psi | Rockwell C37-C45 | 100 | €21.00 | |
 |
U07150.031.0100 | 5/16"-18 | Fully Threaded | 3/16" | 0.547" | 0.166" | 1" | 145000 psi | Rockwell C37-C45 | 50 | €23.47 | |
 |
U07150.037.0150 | 3/8"-16 | Fully Threaded | 7/32" | 0.656" | 0.199" | 1 1/2" | 145000 psi | Rockwell C37-C45 | 25 | €18.11 | |
 |
U07150.050.0075 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 3/4" | 145000 psi | Rockwell C37-C45 | 10 | €16.20 | |
 |
U07150.050.0100 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1" | 145000 psi | Rockwell C37-C45 | 10 | €17.41 | |
 |
U07150.050.0125 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1 1/4" | 145000 psi | Rockwell C37-C45 | 10 | €14.13 | |
 |
U07150.050.0150 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 1 1/2" | 145000 psi | Rockwell C37-C45 | 10 | €16.52 |
