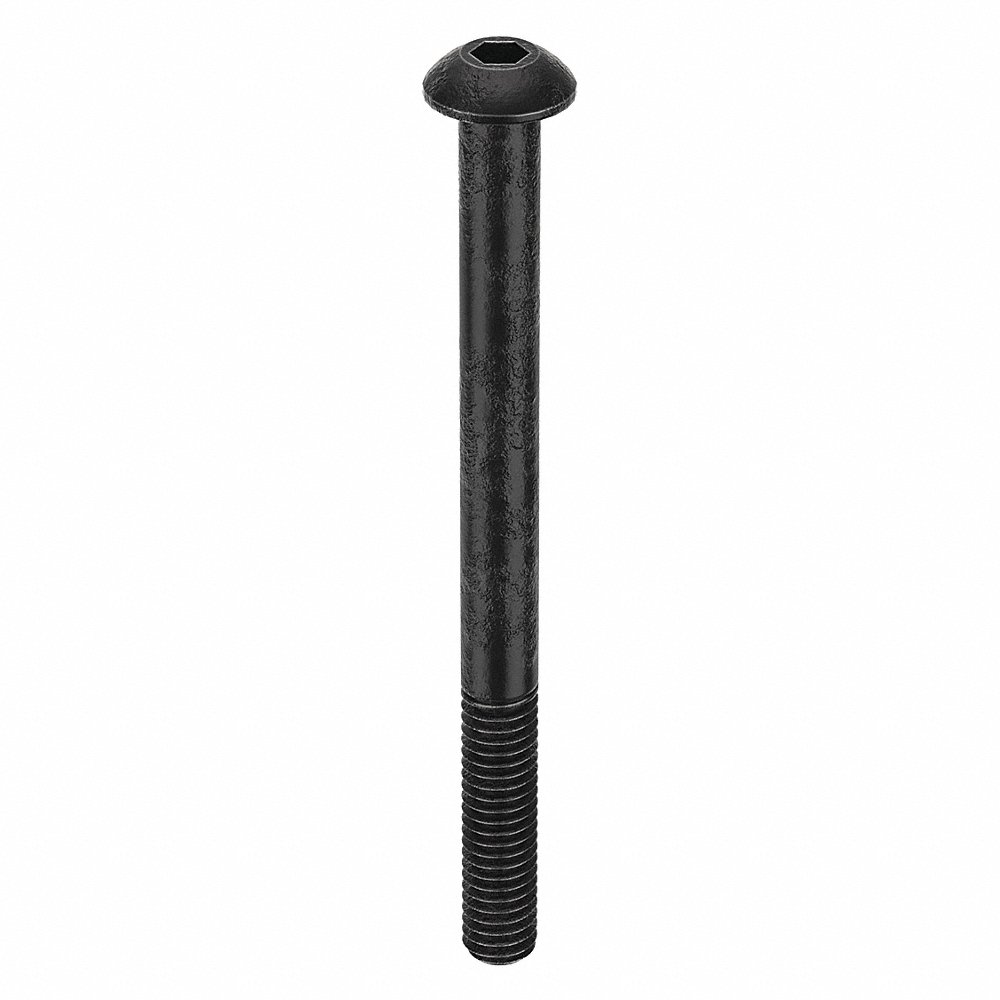

GRAINGER M07150.040.0050 Socket Head Cap Screw, M4x0.7 Thread Size, Button, 50 mm Lg.
Item: AH7UCVModel: M07150.040.0050Cross Ref: 38DA14
7 In Stock
Ships within 2 days via
5.00% off
€33.20 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 100 |
| Drive Size | 3 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 7.6 mm |
| Head Height | 2.2 mm |
| Head Type | Button |
| Length | 50 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Min. Thread Length | 16 mm |
| Screw Length | 50 mm |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 16 mm |
| Thread Size | M4 x 0.7 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07150.019.0200 | 0.361" | 1/8" | 0.101" | Fully Threaded | 2" | Grade Steel | 2" | -50°F to +550°F | 100 | €21.00 | |
 |
U07150.031.0100 | 0.547" | 3/16" | 0.166" | Fully Threaded | 1" | Grade Steel | 1" | -50°F to +550°F | 50 | €23.46 | |
 |
U07150.037.0150 | 0.656" | 7/32" | 0.199" | Fully Threaded | 1 1/2" | Grade Steel | 1 1/2" | -50°F to +550°F | 25 | €13.55 | |
 |
U07150.050.0075 | 7/8" | 5/16" | 0.265" | Fully Threaded | 3/4" | Grade Steel | 3/4" | -50°F to +550°F | 10 | €12.56 | |
 |
U07150.050.0100 | 7/8" | 5/16" | 0.265" | Fully Threaded | 1" | Grade Steel | 1" | -50°F to +550°F | 10 | €16.72 | |
 |
U07150.050.0125 | 7/8" | 5/16" | 0.265" | Fully Threaded | 1 1/4" | Grade Steel | 1 1/4" | -50°F to +550°F | 10 | €10.80 | |
 |
U07150.050.0150 | 7/8" | 5/16" | 0.265" | Fully Threaded | - | - | 1 1/2" | -50°F to +550°F | 10 | €16.28 |
