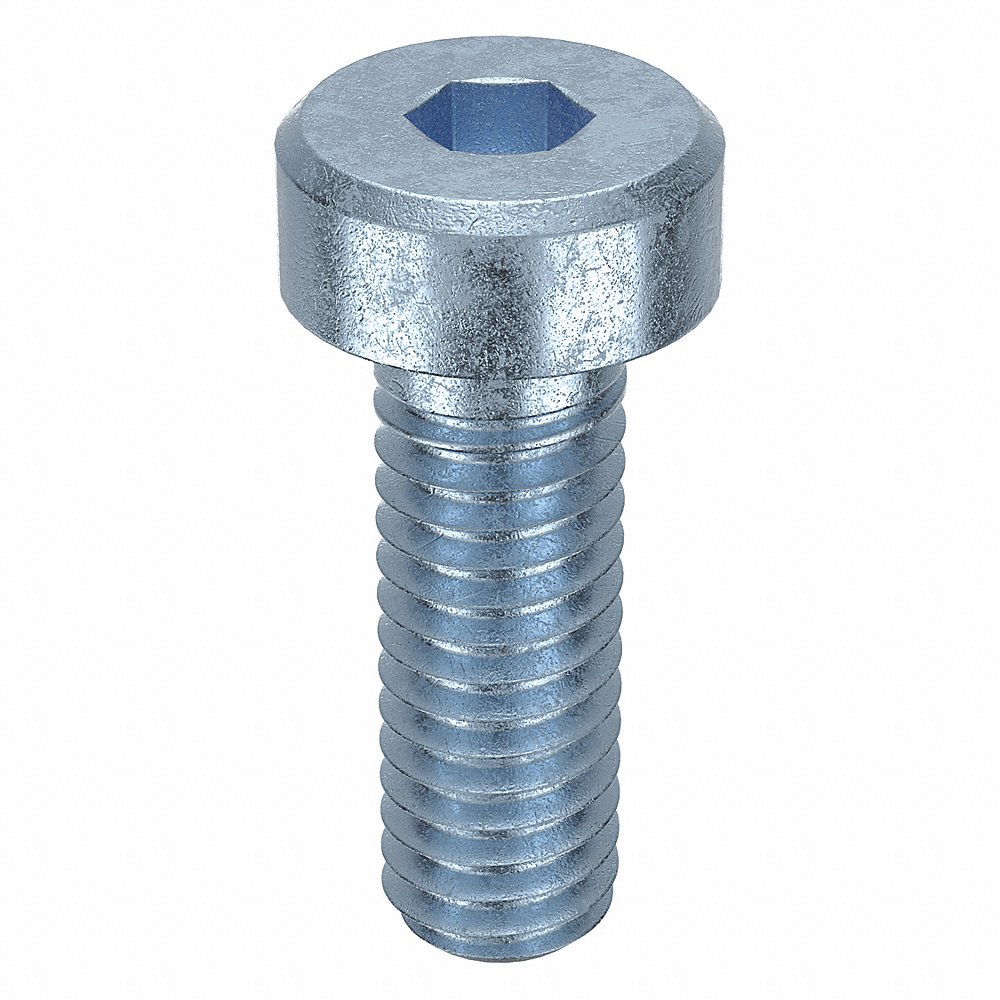

GRAINGER M07090.040.0012 Socket Head Cap Screw, M4x0.7 Thread Size, Low, 12mm Lg., 2.8mm Head Ht., Steel
Item: AH7TWXModel: M07090.040.0012Cross Ref: 38CY76
7 In Stock
Ships within 2 days via
5.00% off
€23.96 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 8.8 |
| Combined Material & Grade | Class 8 Steel |
| Dimensional Standards | Din 7984 |
| Display Qty | 100 |
| Drive Size | 3 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 7 mm |
| Head Height | 2.8 mm |
| Head Type | Low Profile Standard |
| Length | 12 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Min. Thread Length | 12 mm |
| Screw Length | 12 mm |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 12 mm |
| Thread Size | M4 x 0.7 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Thread Length | Display Qty | Drive Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07090.040.0006 | 7 mm | 3 mm | 2.8 mm | Fully Threaded | 6 mm | 6 mm | 100 | Socket | 100 | €34.42 | |
 |
M07090.040.0008 | 7 mm | 3 mm | 2.8 mm | Fully Threaded | 8 mm | 8 mm | 100 | Socket | 100 | €28.27 | |
 |
M07090.040.0010 | 7 mm | 3 mm | 2.8 mm | Fully Threaded | 10 mm | 10 mm | 100 | Socket | 100 | €22.74 | |
 |
M07090.040.0016 | 7 mm | 3 mm | 2.8 mm | Fully Threaded | 16 mm | 16 mm | 100 | Socket | 100 | €30.40 | |
 |
M07090.040.0020 | 7 mm | 3 mm | 2.8 mm | Fully Threaded | 20 mm | 20 mm | 100 | Socket | 100 | €41.94 | |
 |
M07090.050.0008 | 8.5 mm | 3 mm | 3.5 mm | Fully Threaded | 8 mm | 8 mm | 100 | Socket | 100 | €28.27 | |
|
M07090.050.0010 | 8.5 mm | 3 mm | 3.5 mm | Fully Threaded | 10 mm | 10 mm | 100 | Socket | 100 | €20.19 |
