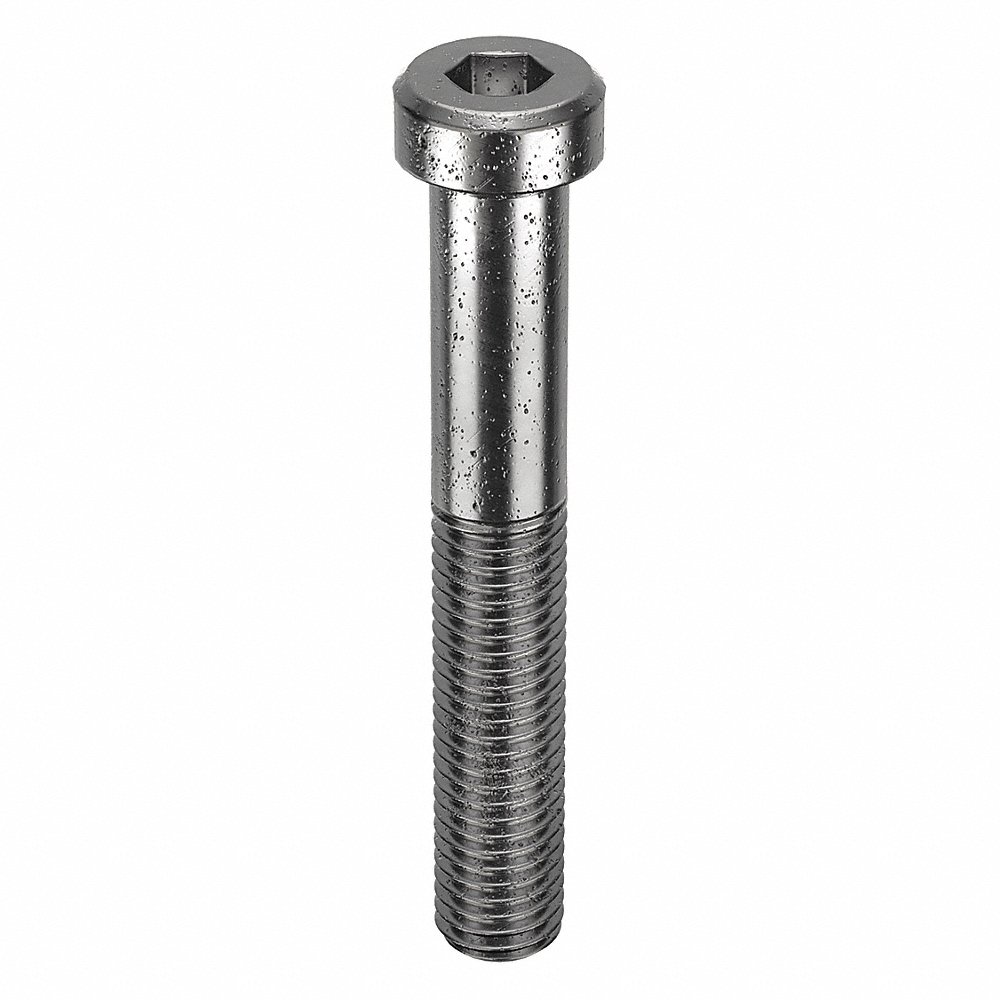

GRAINGER M07080.120.0080 Socket Head Cap Screw, M12x1.75 Thread Size, Low, 80 mm Lg., 7 mm Head Ht., Plain
Item: AH7TVYModel: M07080.120.0080Cross Ref: 38CY54
7 In Stock
Ships within 2 days via
10.00% off
€79.93 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 8.8 |
| Combined Material & Grade | Class 8 Steel |
| Dimensional Standards | Din 7984 |
| Display Qty | 25 |
| Drive Size | 10 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 18 mm |
| Head Height | 7 mm |
| Head Type | Low Profile Standard |
| Length | 80 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 45 mm |
| Screw Length | 80 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 45 mm |
| Thread Size | M12 x 1.75 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07030.040.0008 | M4 x 0.7 | Fully Threaded | 3 mm | 7 mm | 2.8 mm | 8 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €56.98 | |
 |
M07030.040.0010 | M4 x 0.7 | Fully Threaded | 3 mm | 7 mm | 2.8 mm | 10 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €29.91 | |
 |
M07030.040.0012 | M4 x 0.7 | Fully Threaded | 3 mm | 7 mm | 2.8 mm | 12 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €34.24 | |
 |
M07030.040.0016 | M4 x 0.7 | Fully Threaded | 3 mm | 7 mm | 2.8 mm | 16 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €43.67 | |
 |
M07030.040.0020 | M4 x 0.7 | Fully Threaded | 3 mm | 7 mm | 2.8 mm | 16 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €16.10 | |
 |
M07030.040.0025 | M4 x 0.7 | Fully Threaded | 3 mm | 7 mm | 2.8 mm | 16 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €50.12 | |
 |
M07030.050.0010 | M5 x 0.8 | Fully Threaded | 4 mm | 8.5 mm | 3.5 mm | 10 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €43.01 |
