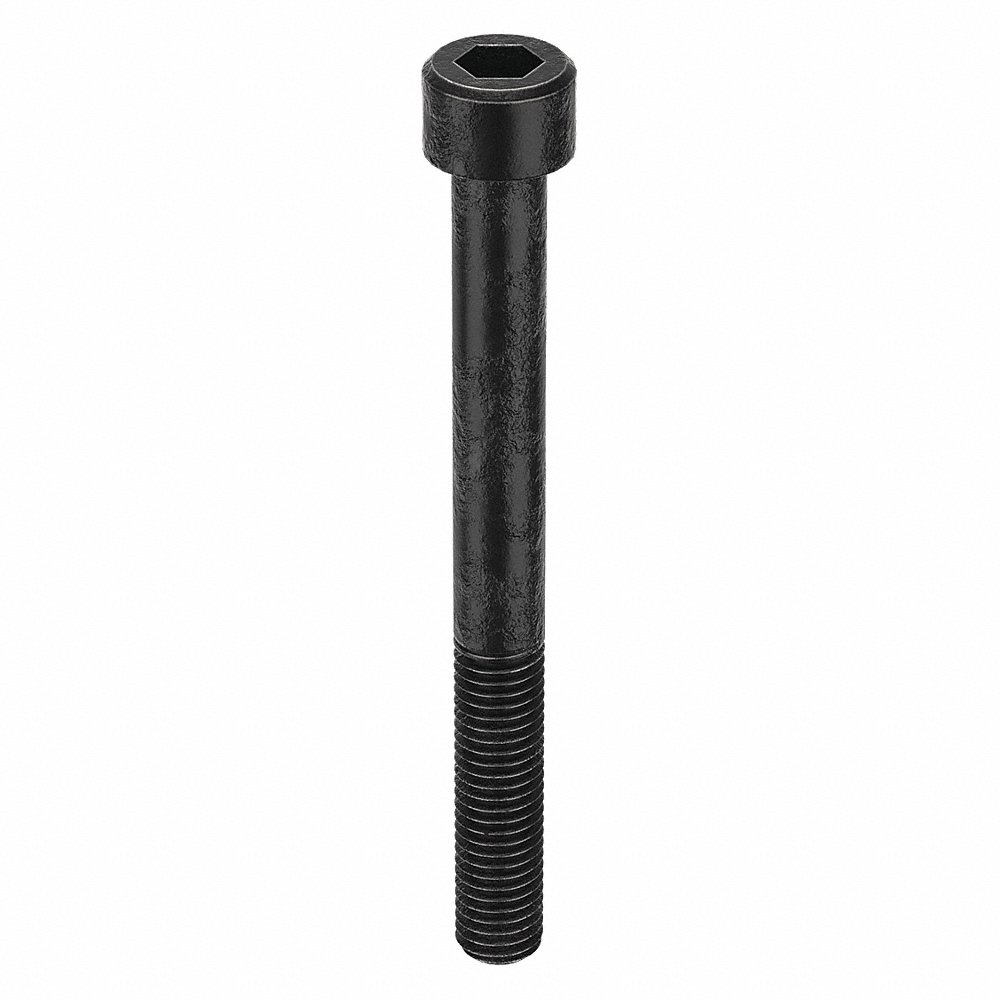

GRAINGER M07041.100.0100 Socket Head Cap Screw, M10x1 Thread Size, Cylindrical, 100 mm Lg., 10 mm Head Ht.
Item: AH7TUQModel: M07041.100.0100Cross Ref: 38CY24
7 In Stock
Ships within 2 days via
10.00% off
€235.49 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 12.9 |
| Combined Material & Grade | Class 12.9 Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 25 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C39-C44 |
| Head Dia. | 16 mm |
| Head Height | 10 mm |
| Head Type | Standard |
| Length | 100 mm |
| Material | Steel |
| Material Grade/class | Class 12.9 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 40 mm |
| Screw Length | 100 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 174000 psi |
| Thread Direction | Right Hand |
| Thread Length | 40 mm |
| Thread Size | M10 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Extra Fine |
Shipping Info:
| Ship weight (kg) | 1.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
