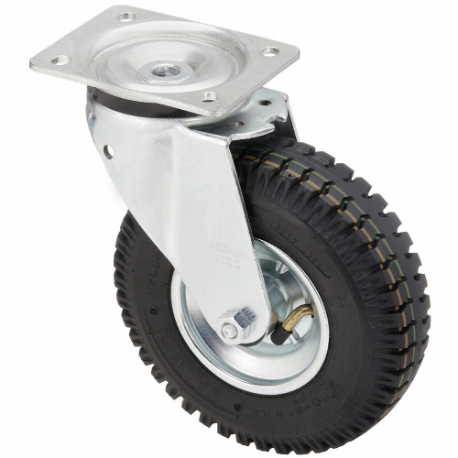

GRAINGER L-P 222R Plate Caster With Pneumatic Wheels, 8 11/16 Inch Dia, Swivel
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€131.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Wheels |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Frame Finish | Zinc Plated |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 15/16" x 4 1/8" |
| Load Rating | 220 lbs. |
| Mounting Bolt Dia. | 7/16" |
| Mounting Height | 10" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 4.312" x 5.5" |
| Mounting Plate Size & Bolt Hole Pattern | 4 5/16" X 5 1/2" ( C ) |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -20°F to +120°F |
| Operating Temperature Range | -15°F to +160°F |
| Outside Bolt Hole Spacing | 3 5/32" x 4 9/64" |
| Swivel Construction | Kingspin |
| Swivel Raceway Type | Double Ball |
| Tire Rim Dia. | 4" |
| Tire Thickness | 2 5/16" |
| Tread | Ribbed |
| Tread Color | Gray |
| Tread Material, Wheel Material | Rubber |
| Wheel Bearing Type | Roller |
| Wheel Dia. | 8 11/16" |
| Wheel Diameter | 8.688" |
| Wheel Width | 2 5/8" |
| Wheel/tread Hardness | 65 Shore A |
| Wheel/tread Hardness Rating | Soft |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Wheel Width | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Load Rating | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
53CM46 | Swivel | B | 3 1/4" | 4" x 4" | 4 7/16" x 4 7/16" | Precision Ball | 300 lbs. | 4.5" x 4" | €48.27 | |
 |
B-RD 250K-VLI | Rigid | D | 2 3/8" | 2 5/16" x 7 1/2" | 2 15/16" x 7 1/2" | Precision Ball | 990 lbs. | 4.75" x 8.688" | €319.36 | |
 |
BS-VLE 410K | Rigid | D | 4 1/8" | 4 3/4" x 6 5/16" | 4 3/4" x 6 5/16" | Precision Ball | 2090 lbs. | 6 5/16" x 7 7/8" | €1,066.74 | |
 |
LS-VLE 410K | Swivel | D | 4 1/8" | 4 3/4" x 6 5/16" | 4 3/4" x 6 5/16" | Precision Ball | 2090 lbs. | 6 5/16" x 7 7/8" | €1,514.56 | |
 |
437V25 | Rigid | B | 2" | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 250 lbs. | 4.5" x 4" | €107.13 | |
 |
L-RD 200K-VLI | Swivel | C | 2" | 2.938" x 4.125" | 3 5/32" x 4 9/64" | Precision Ball | 770 lbs. | 4.312" x 5.5" | €176.99 | |
|
53CM44 | Swivel | B | 2 7/8" | 4" x 4" | 4 7/16" x 4 7/16" | Precision Ball | 275 lbs. | 4.5" x 4" | €43.25 |
