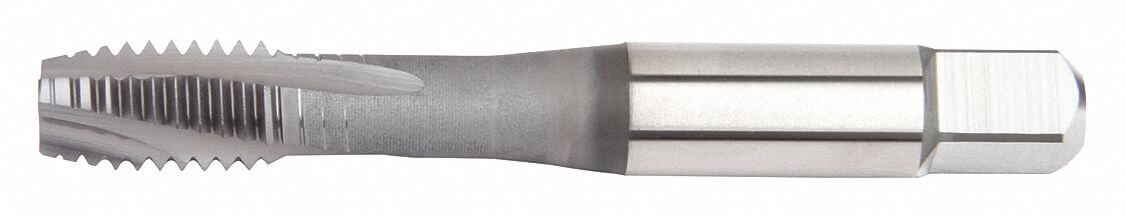

GRAINGER GT925003 Spiral Flute Tap, 4-40 Thread Size, Unc, 1 7/8 Inch Length, High Speed Steel
Item: CH6THVModel: GT925003Cross Ref: 53NW02
7 In Stock
Ships within 2 days via
10.00% off
€47.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 3/32" |
| 65% Thread Drill Size | 2.3 mm |
| 75% Thread Drill Size | 2.2 mm |
| Class Of Fit | Class 3B |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Features | For Nickel And Cobalt Based Alloys |
| Helix Angle | 11° |
| Material Grade - Machining | Grade WS39MG |
| Measurement System | Pipe |
| Number Of Flutes | 3 |
| Overall Length | 1 7/8" |
| Powdered Metal Base Material | Cobalt |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Nickel, Titanium |
| Secondary Material Application Iso Code | S |
| Shank Dia. | 9/64" |
| Shank Length | 15/16" |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 0.108" |
| Tap Chamfer | Plug |
| Tap Material | HSS E PM |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | #4-40 |
| Thread Direction | Right Hand |
| Thread Length | 1/2" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2, 3B |
| Thread Size | #4-40 |
| Thread Standard | UNC |
| Threads Per Inch | 40 |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | USA |
