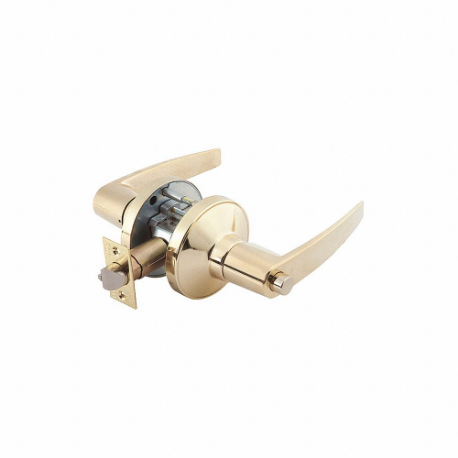

GRAINGER GP 176 MIA 605 234 ASA Door Lever Lockset, Grade 2, Mia Straight, Bright Brass, Not Keyed
Item: CP9CRWModel: GP 176 MIA 605 234 ASACross Ref: 53DL71
7 In Stock
Ships within 2 days via
10.00% off
€151.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Lever Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Privacy |
| Backset | 2 3/4" |
| Bolt Type | Latch Bolt |
| Cylinder Core Type | Not Included |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Electrical/mechanical | Mechanical |
| Features | 1, 500 Lbf-in Lever Torque Resistance, 13 Ga Steel Anti-Rotation Plate |
| Finish | Bright Brass, Clear Coated |
| Fire Rating | 3 hrs. |
| For Use With | Metal Or Wood Doors |
| Function | Privacy |
| General Lockset Function | Privacy Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Zinc |
| Handle Type | Lever |
| Inside Locking Access | Push Button |
| Key Type | Not Keyed |
| Keyway Type | Schlage C |
| Knob/handle Material | Brass |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Churches, Educational, Government, Hospitals, Industrial, Institutional, Multiple Family Residential, Office |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F76 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Medium Duty |
| Lockset Style | Miami Lever |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Cylindrical |
| Mounting Style | Thru Bolt |
| Number Of Keys | 0 |
| Number Of Pins | 0 |
| Outside Locking Access | Pin Hole |
| Performance Duty Rating | 1 |
| Pins | 0 |
| Properties | Weather Resistant |
| Required Door Thickness | 1 3/8" to 1 3/4" |
| Strike Dim. | 4 7/8" x 1 1/4" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Width | 1 1/4" |
| Strike Type | ASA Strike |
| Trim Plate Shape | Round |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Key Type | Style | Keyway Type | Number Of Keys | Pins | Function | Number Of Pins | Visual Indicator Message | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GP 115 BSN 605 234 ASA SCC | Keyed Different | BSN Curved | Schlage C | 2 | 6 | Storeroom | 6 | No Message | €160.35 | |
|
GP 148 BSN 605 234 ASA SCC | Keyed Different | BSN Curved | Schlage C | 2 | 6 | Classroom | 6 | No Message | €164.57 | |
 |
GP 148 BSN 605 234 ASA SFL | Not Keyed | BSN Curved | Schlage C | - | - | Classroom | - | No Message | €184.20 | |
 |
GP 126 BSN 605 234 ASA | Not Keyed | BSN Curved | Schlage C | - | - | Passage | - | No Message | €146.78 | |
 |
GP 176 BSN 605 234 ASA | Not Keyed | - | Schlage C | - | - | Privacy | - | No Message | €155.14 | |
|
GP 116 BSN 605 234 ASA SFL | Not Keyed | BSN Curved | Schlage C | - | - | Entrance Lock | - | No Message | €184.20 | |
 |
GP 116 BSN 613 234 ASA SCC | Keyed Different | BSN Curved | Schlage C | 2 | 6 | Entrance Lock | 6 | No Message | €167.22 |
