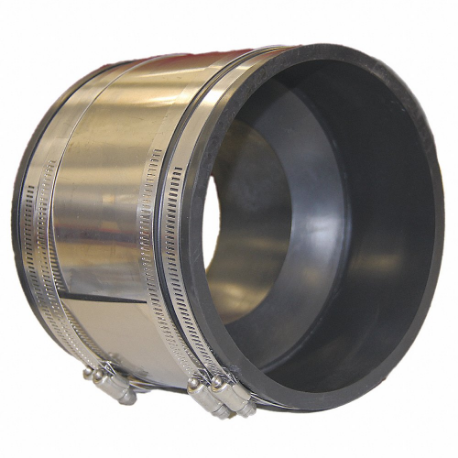

GRAINGER DX1002-44SR Shielded Transition Coupling, Pvc, 4 Inch Pipe, 4 Inch Overall Length
Item: CQ3QMJModel: DX1002-44SRCross Ref: 53UE59
7 In Stock
Ships within 2 days via
10.00% off
€44.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shielded Transition Coupling |
| Application | Non-Potable Water |
| Basic Fitting Shape | Coupling |
| Clamp Grade | Grade 300 |
| Clamp Includes | Yes |
| Clamp Material | Stainless Steel |
| Clamp Type | Interlocked Worm Gear |
| Color | Black |
| Fitting Material | PVC |
| Fitting Side A Gender | Female |
| Fitting Side A Inside Diameter | 5 1/8" |
| Fitting Side A Outside Diameter | 6" |
| Fitting Side A Pipe Size | 4" |
| Fitting Side B Gender | Female |
| Fitting Side B Inside Diameter | 4 1/2" |
| Fitting Side B Outside Diameter | 6" |
| Fitting Side B Pipe Size | 4" |
| For Nominal Pipe Size | 4" |
| Includes Shield | Yes |
| Max. Operating Pressure | 4.3 psi |
| Number Of Clamps Included | 4 |
| Overall Length | 4" |
| Pipe Fitting Material | PVC |
| Shield Grade | Grade 300 |
| Shield Material | Stainless Steel |
| Shield Thickness | 0.012" |
| Specific Fitting Shape | 0.012" Shielded Transition Coupling |
| Standards | Astm C1173 |
| Temp. Range | 140°F |
| Wall Thickness | 5/16" |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Fitting Side A Outside Diameter | Wall Thickness | Fitting Side B Outside Diameter | Fitting Side B Pipe Size | Fitting Side A Pipe Size | For Nominal Pipe Size | Fitting Side A Inside Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DX1001-64SR | 6" | 8 1/8" | 5/16" | 8 1/8" | 4" | 6" | 4", 6" | 7 3/8" | €123.99 | |
|
DX1056-64SR | 6" | 7 1/4" | 5/16" | 7 1/4" | 4" | 6" | 4", 6" | 6 5/8" | €110.82 | |
|
DX1002-64SR | 6" | 8 1/8" | 5/16" | 8 1/8" | 4" | 6" | 4", 6" | 7 3/8" | €113.58 | |
 |

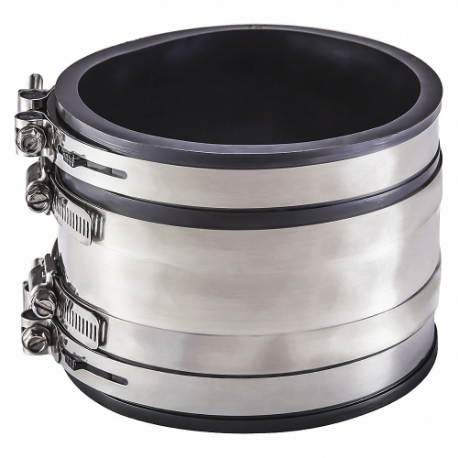

DX5001-44RC | 4" | 6" | 5/16" | 6" | 4" | 4" | 4" | 5 5/16" | €54.49 | |
 |

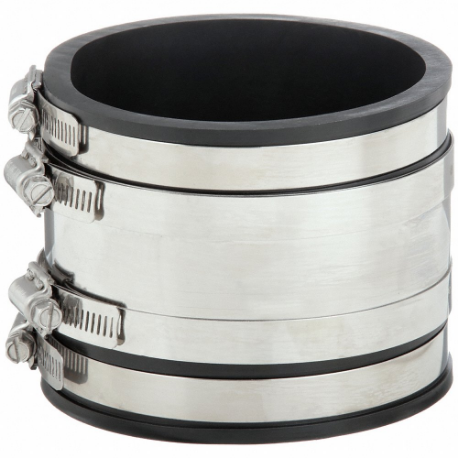

DX1056-44SR | 4" | 5 1/8" | 5/16" | 5 1/8" | 4" | 4" | 4" | 4 9/16" | €36.29 | |
|
DX5056-44RC | 4" | 5 1/8" | 5/16" | 5 1/8" | 4" | 4" | 4" | 4 9/16" | €49.84 | |
 |

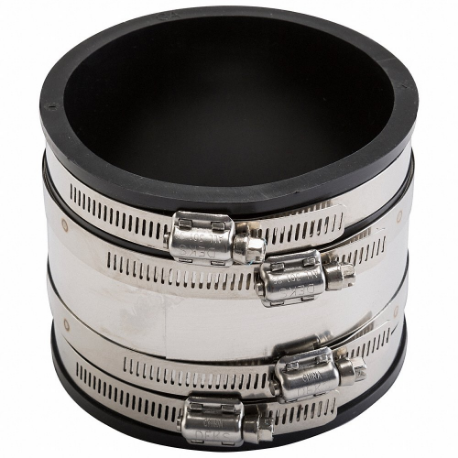

DX1001-44SR | 4" | 6" | 5/16" | 6" | 4" | 4" | 4" | 5 5/16" | €41.89 |
