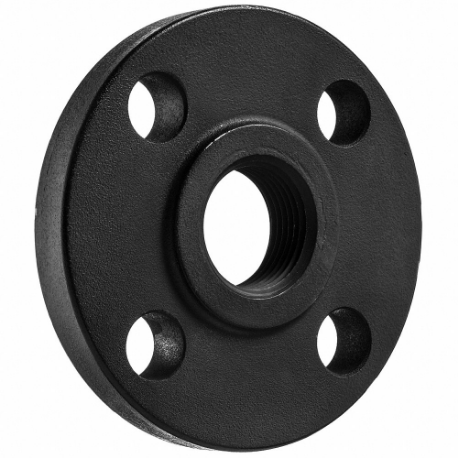

GRAINGER BULK-PF-487 Pipe Flange, Steel, Threaded Flange, 1 Inch Pipe Size, Raised Face Threaded Flange
Item: CQ7WJWModel: BULK-PF-487Cross Ref: 60VM33
7 In Stock
Ships within 2 days via
10.00% off
€103.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange |
| Application | Air, Natural Gas, Non-Potable Water, Oil, Steam |
| Basic Fitting Shape | Flange |
| Bolt Hole Dia. | 5/8" |
| Class | Class 300 |
| Color | Black |
| Connection Surface | Raised Face |
| Connection Type | Flanged x FNPT |
| Finish/coating | Black Coated |
| Fitting Connection Type | Flanged x FNPT |
| Fitting Material | Steel |
| Flange O.d. | 4 7/8" |
| Flange Thickness | 9/16" |
| For Pipe Schedule | 80 |
| Max. Operating Pressure | 725 psi |
| Max. Steam Pressure | 725 psi |
| Number Of Bolt Holes | 4 |
| Overall Length | 4 7/8" |
| Pipe Fitting Material | Steel |
| Pipe Size | 1" |
| Schedule | Schedule 80 |
| Specific Fitting Shape | Threaded Flange |
| Standards | Asme B16.5, Astm A105 |
| Temp. Range | +80°F to +780°F |
Shipping Info:
| Ship weight (kg) | 1.36 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Pipe Size | Max. Operating Pressure | Connection Type | Temp. Range | Fitting Material | Class | Connection Surface | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 130-012-000 | 1 1/2" | 285 psi | Flanged x Blind | -20°F to +100°F | Carbon Steel | Class 150 | Raised Face | 5/8" | €90.69 | |
| 330-012-000 | 1 1/2" | 740 psi | Flanged x Blind | -20°F to +100°F | Carbon Steel | Class 300 | Raised Face | 3/4" | €115.57 | |
| 330-011-000 | 1 1/4" | 740 psi | Flanged x Blind | -20°F to +100°F | Carbon Steel | Class 300 | Raised Face | 11/16" | €140.75 | |
| 330-010-000 | 1" | 740 psi | Flanged x Blind | -20°F to +100°F | Carbon Steel | Class 300 | Raised Face | 5/8" | €112.08 | |
| 130-002-000 | 1/2" | 285 psi | Flanged x Blind | -20°F to +100°F | Carbon Steel | Class 150 | Raised Face | 3/8" | €86.27 | |
| 330-002-000 | 1/2" | 740 psi | Flanged x Blind | -20°F to +100°F | Carbon Steel | Class 300 | Raised Face | 1/2" | €131.51 | |
| 130-022-000 | 2 1/2" | 285 psi | Flanged x Blind | -20°F to +100°F | Carbon Steel | Class 150 | Raised Face | 13/16" | €146.41 |
