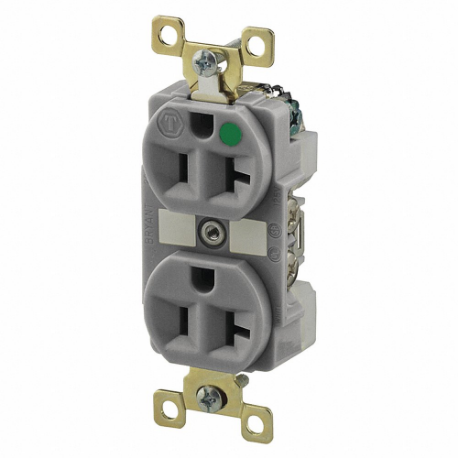

GRAINGER BRY8300GRYL Receptacle, Duplex, 5-20R, 20 A, 125V AC, Gray, 2 Poles, Screw Terminals
Item: CQ2EYAModel: BRY8300GRYLCross Ref: 52HD50
7 In Stock
Ships within 2 days via
10.00% off
€67.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 2.7" |
| Features | Night Light |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Housing Color | Gray |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Surge Protection | No |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Receptacle Type | Housing Color | Grade | Current Rating | Nema Receptacle Configuration | Gfci | Face Plate Height | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1597NTLTRLA | Decorator Duplex | Light Almond | Hospital Grade Fed. Spec. | 15A | NEMA 5-15R | Yes | 2.7" | 15A | €70.72 | |
 |
1597NTLTRW | Decorator Duplex | White | Hospital Grade Fed. Spec. | 15A | NEMA 5-15R | Yes | 2.7" | 15A | €70.72 | |
 |
BRY8200TR | Duplex | Brown | Hospital Grade Fed. Spec. | 15A | NEMA 5-15R | No | 1.3" | 15A | €36.92 | |
 |
BRY8200GRYL | Duplex | Gray | Hospital Grade Fed. Spec. | 15A | NEMA 5-15R | No | 2.7" | 15A | €89.46 | |
 |
BRY8200GTR | Duplex | Gray | Hospital Grade Fed. Spec. | 15A | NEMA 5-15R | No | 1.3" | 15A | €36.92 | |
 |
BRY8200IL | Duplex | Ivory | Hospital | - | NEMA 5-15R | No | 2.69" | 15A | €89.46 | |
 |
BRY8200ITR | Duplex | Ivory | Hospital Grade Fed. Spec. | 15A | NEMA 5-15R | No | 1.3" | 15A | €38.78 |
