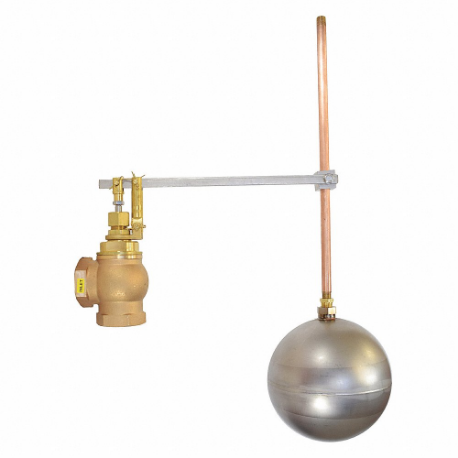

GRAINGER AHLB100-GR Float Valve, Pipe Mount, 1 Inch Size, FNPT, 75 GPM Valve Flow Flow, 1/4 Inch NPT
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,368.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Float Valve |
| Arm Adjustability | Adjustable |
| Body Material | Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | Angle Body Design, Heavy-Duty, Sealed, Threaded Outlet |
| Float | 7" Dia. Cylindrical Stainless Steel |
| Float Diameter | 7" |
| Float Material | Stainless Steel |
| Float Shape | Cylindrical |
| Float Size | 7" |
| Float Valve Type | Floatvalve Assembly (Rod & Float Included) |
| Flow Rate | 75 GPM @ 60 psi |
| For Media | Water |
| Includes Float And Rod | Float And Rod Included |
| Inlet | 1" FNPT |
| Inlet Connection Type | FNPT |
| Manufacturer Warranty | 1 yr. |
| Material | Bronze |
| Max. Media Temperature | 100°F |
| Max. Pressure | 120 psi |
| Max. Pressure (cwp) | 100 psi |
| Max. Temp. | 450°F |
| Media Temperature Range | 33°F to 100°F |
| Min. Media Temperature | 33°F |
| Mounting | Horizontal Piping |
| Outlet | 1" Fnpt |
| Outlet Connection Type | FNPT |
| Pipe Size | 1" |
| Rod | 16" |
| Rod Length | 16" |
| Rod Material | Brass |
| Rod Thread Type | 1/4" , NPT |
| Seal Material | PTFE |
| Seat Style | Single Seated |
| Size | 1" |
| Valve Body Style | Angle |
| Valve Flow - Flow (1) | 75 GPM |
| Valve Flow - Flow (2) | 22 GPM |
| Valve Flow - Pressure (1) | 60 psi |
| Valve Flow - Pressure (2) | 20 psi |
Shipping Info:
| Ship weight (kg) | 5.92 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting | Body Material | Rod Length | Max. Pressure | Seal Material | Float Material | Size | Valve Flow - Flow (1) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R400-1-7 | Horizontal Piping | Brass | 12" | 100 psi | Buna-N | - | 1" | 44 GPM | €63.65 | |
 |
R400-3/8-7 | Horizontal Piping | Brass | 10" | 125 psi | Buna-N | - | 3/8" | 9 GPM | €33.20 | |
 |
R605T-1-1/2-7 | Horizontal Piping | Brass | 12" | 150 psi | Buna-N | - | 1 1/2" | 112 GPM | €141.41 | |
|
R605T-2-7 | Horizontal Piping | Brass | 12" | 150 psi | Buna-N | - | 2" | 112 GPM | €162.55 | |
 |
GHFSS150 | Horizontal Piping | Stainless Steel | 18" | 100 psi | Neoprene | Stainless Steel | 1 1/2" | 100 GPM | €2,263.65 | |
 |
ACF150 | Horizontal Piping | Bronze | 18" | 100 psi | Neoprene | Copper | 1 1/2" | 125 GPM | €767.14 | |
|
AHF150 | Horizontal Piping | Bronze | 18" | 100 psi | Neoprene | Copper | 1 1/2" | 125 GPM | €950.89 |
