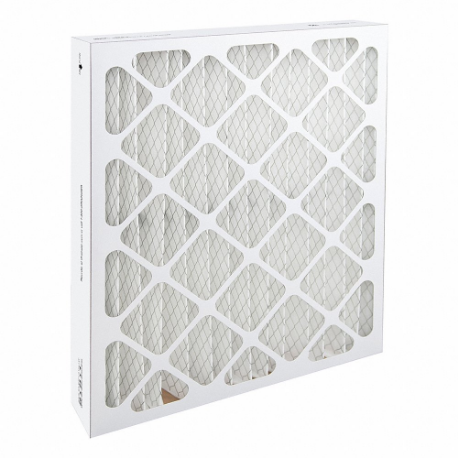

GRAINGER 786EK9 Pleated Air Filters, 20x25x4, MERV 13, High Capacity, Synthetic, Beverage Board
Item: CQ3RBNModel: 786EK9
7 In Stock
Ships within 2 days via
5.00% off
€41.91 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Filter |
| Actual Depth | 3 3/4" |
| Actual Filter Size | 19 1/2" x 24 1/2" x 3 3/4" |
| Actual Height | 19 1/2" |
| Actual Width | 24 1/2" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 500 Fpm | 1736 CFM |
| Airflow @ 300 Fpm | 1042 CFM |
| Common Applications | Leed, Green |
| Filter Efficiency (air Filters) | 85% |
| Filter Frame Color | White |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, Merv 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Recommended Resistance | 1 in. wc |
| For Use With | HVAC Systems |
| For Use With (systems) | Hvac Systems |
| Frame Color | White |
| Frame/header Material | Beverage Board |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Max. Velocity | 500 FPM |
| Media Area | 19.6 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 4" |
| Nominal Filter Size | 20" x 25" x 4" |
| Nominal Height | 20" |
| Nominal Width | 25" |
| Performance Rating | MERV 13 |
| Performance Rating (meets Or Exceeds) | MERV 13 |
| Pleats Per Linear Feet | 15 |
| Style | Pleated |
| Style-air Filters | Pleated |
Shipping Info:
| Ship weight (kg) | 0.94 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Nominal Depth | Nominal Filter Size | Airflow @ 300 Fpm | Actual Height | Air Filter Capacity | Nominal Height | Nominal Width | Performance Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60RD87 | 2" | 16" x 20" x 2" | 667 CFM | 15 1/2" | High Capacity | 16" | 20" | MERV 13 | €26.11 | |
 |
60RD85 | 2" | 16" x 25" x 2" | 833 CFM | 15 1/2" | High Capacity | 16" | 25" | MERV 13 | €30.89 | |
 |
60RD93 | 1" | 20" x 20" x 1" | 833 CFM | 19 1/2" | High Capacity | 20" | 20" | MERV 13 | €22.41 | |
 |
60RD86 | 2" | 2" x 20" x 20" | 833 CFM | 19 1/2" | High Capacity | 20" | 20" | MERV 13 | €28.27 | |
 |
60RD90 | 2" | 2" x 20" x 24" | 1000 CFM | 19 3/8" | High Capacity | 20" | 24" | MERV 13 | €33.92 | |
 |
60RD91 | 4" | 4" x 20" x 24" | 1000 CFM | 19 3/8" | High Capacity | 20" | 24" | MERV 13 | €48.24 | |
 |
60RD88 | 2" | 2" x 20" x 25" | 1042 CFM | 19 1/2" | High Capacity | 20" | 25" | MERV 13 | €36.57 |
