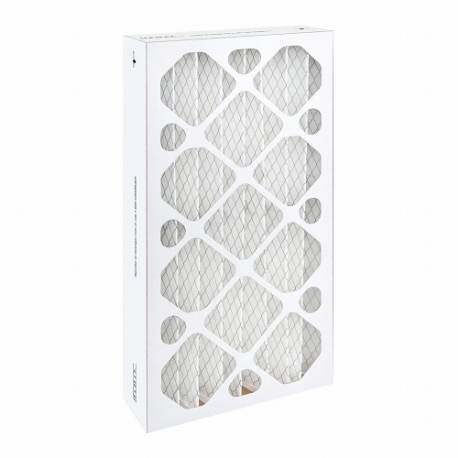

GRAINGER 786EK6 Pleated Air Filters, 12x24x4, MERV 13, High Capacity, Synthetic, Beverage Board
Item: CQ3RBCModel: 786EK6
7 In Stock
Ships within 2 days via
10.00% off
€23.91 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Filter |
| Actual Depth | 3 3/4" |
| Actual Filter Size | 11 3/8" x 23 3/8" x 3 3/4" |
| Actual Height | 11 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 Fpm | 600 CFM |
| Air Flow @ 500 Fpm | 1000 CFM |
| Common Applications | Leed, Green |
| Filter Efficiency (air Filters) | 85% |
| Filter Frame Color | White |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, Merv 13-16 All Bacteria, Most Face Powder, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Recommended Resistance | 1 in. wc |
| For Use With | HVAC Systems |
| For Use With (systems) | Hvac Systems |
| Frame Color | White |
| Frame/header Material | Beverage Board |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Max. Velocity | 500 FPM |
| Media Area | 11.3 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 4" |
| Nominal Filter Size | 12" x 24" x 4" |
| Nominal Height | 12" |
| Nominal Width | 24" |
| Performance Rating | MERV 13 |
| Performance Rating (meets Or Exceeds) | MERV 13 |
| Pleats Per Linear Feet | 9 |
| Style | Pleated |
| Style - Air Filters | Pleated |
Shipping Info:
| Ship weight (kg) | 0.64 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Nominal Filter Size | Nominal Depth | Nominal Height | Nominal Width | Actual Width | Actual Depth | Media Area | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60RD87 | 16" x 20" x 2" | 2" | 16" | 20" | 19 1/2" | 1 3/4" | 9.7 sq. ft. | Panel | €25.38 | |
 |
60RD85 | 16" x 25" x 2" | 2" | 16" | 25" | 24 1/2" | 1 3/4" | 12.2 sq. ft. | Panel | €30.89 | |
 |
60RD93 | 20" x 20" x 1" | 1" | 20" | 20" | 19 1/2" | 3/4" | 5.1 sq. ft. | Panel | €19.60 | |
 |
60RD86 | 2" x 20" x 20" | 2" | 20" | 20" | 19 1/2" | 1 3/4" | 12.2 sq. ft. | Panel | €29.61 | |
 |
60RD90 | 2" x 20" x 24" | 2" | 20" | 24" | 23 3/8" | 1 3/4" | 14.6 sq. ft. | Panel | €33.92 | |
 |
60RD91 | 4" x 20" x 24" | 4" | 20" | 24" | 23 3/8" | 3 3/4" | 18.8 sq. ft. | Panel | €48.24 | |
 |
60RD88 | 2" x 20" x 25" | 2" | 20" | 25" | 24 1/2" | 1 3/4" | 15.2 sq. ft. | Panel | €36.57 |
