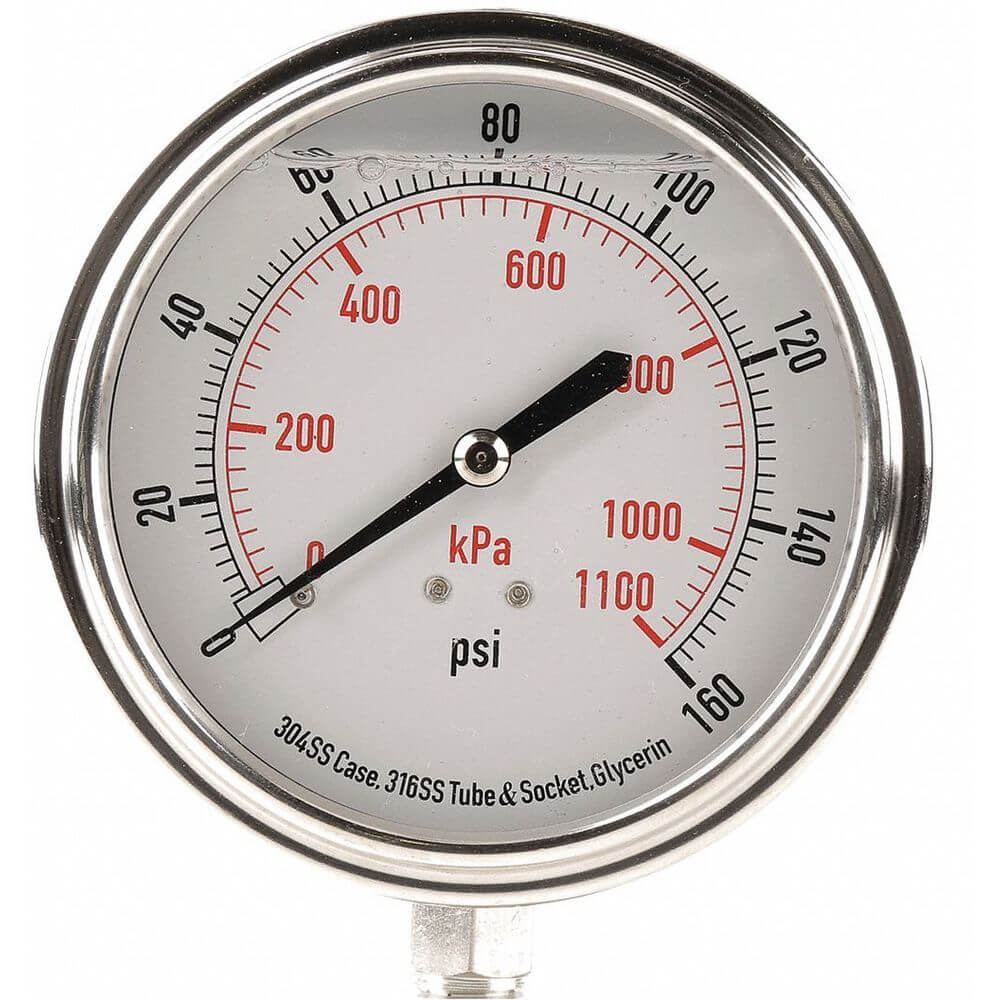

GRAINGER 4CFK1 General Purpose Pressure Gauge, 3-1/2 Inch, 0 to 160 Psi
Item: CD3TLRModel: 4CFK1
7 In Stock
Ships within 2 days via
10.00% off
€77.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +140°F |
| Application | General Purpose |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Case Color | Silver |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Size | 3 1/2" |
| Field Fillable | No |
| Filled With | Glycerin |
| Freeze Resistant Movement | No |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Wetted Parts | Stainless Steel |
| Grade | Grade 316 |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | Yes |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 3 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +140°F |
| Panel-mountable | No |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 0 psi to 160 psi |
| Pressure Range (secondary) | 0 psi to 160 psi |
| Pressure Range Type | Pressure |
| Primary Application | General Purpose |
| Primary Graduations | 1, 2 |
| Primary Pressure Range | 0 to 160 |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Scale Units | Kpa |
| Sensor Material | Stainless Steel |
| Smallest Graduation | 2 |
| Socket Material | 316 Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Materials | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Pressure Gauge Type | Pressure Range | Nominal Dial Size | Application | Case Color | Socket Material | Accuracy | Sensor Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PN22N020G | - | - | - | - | - | - | - | - | €14.13 | |
 |
36JV24 | Industrial Pressure Gauge | 0 psi to 3000 psi | 4 1/2" | Process Industries | Black | Stainless Steel | -1% to +1% | Stainless Steel | €279.34 | |
 |
36JV30 | Industrial Pressure Gauge | 0 psi to 160 psi | 4 1/2" | Process Industries | Black | Brass | -1% to +1% | Phosphor Bronze | €250.94 | |
|
36JV32 | Industrial Pressure Gauge | 0 psi to 300 psi | 4 1/2" | Process Industries | Black | Brass | -1% to +1% | Phosphor Bronze | €248.75 | |
 |
36JV41 | Industrial Pressure Gauge | 0 psi to 600 psi | 4 1/2" | Process Industries | Black | Brass | -1% to +1% | Phosphor Bronze | €283.00 | |
 |
36JV43 | Industrial Pressure Gauge | 0 psi to 60 psi | 4 1/2" | Process Industries | Black | Stainless Steel | -1% to +1% | Stainless Steel | €257.87 | |
 |
4CFK4 | - | - | - | - | - | - | - | - | €86.42 |
