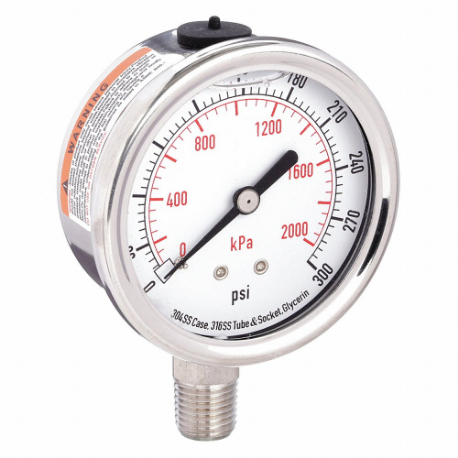

GRAINGER 4CFH7 Commercial Pressure Gauge, 0 To 300 PSI, 2 1/2 Inch Dial, Bottom
Item: CQ2JBXModel: 4CFH7
7 In Stock
Ships within 2 days via
10.00% off
€72.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +140°F |
| Ambient Temp. Range | -40°F to +140°F |
| Application | General Purpose |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Silver |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Dial Color | White |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | Yes |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 0 psi to 300 psi |
| Pressure Range Type | Pressure |
| Primary Graduations | 1, 2 |
| Primary Pressure Range | 0 psi to 300 psi |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 2000 kPa |
| Secondary Scale Units | Kpa |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Socket Grade | Grade 316 |
| Socket Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Materials | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Pressure Range Type | Nominal Dial Size | Application | Pressure Range | Primary Scale Units | Scale Type | Bezel Material | Primary Scale Minor Graduations | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4CFF5 | Compound | 2" | General Purpose | - | In. Hg/psi | Dual | Crimped Stainless Steel | 1, 2 | €70.70 | |
 |
4CFJ6 | Compound | 3 1/2" | General Purpose | - | In. Hg/psi | Dual | Crimped Stainless Steel | 1, 2 | €86.42 | |
 |
4CFH1 | Compound | 2 1/2" | General Purpose | - | In. Hg/psi | Dual | Crimped Stainless Steel | 1, 2 | €80.78 | |
 |
4CFD9 | Compound | 1 1/2" | General Purpose | - | In. Hg/psi | Dual | Crimped Stainless Steel | 1, 2 | €45.81 | |
 |
4CFJ1 | Pressure | 2 1/2" | General Purpose | 0 psi to 1000 psi | Psi | Dual | Crimped Stainless Steel | 1, 2 | €80.78 | |
 |
4CFG5 | Pressure | 2" | General Purpose | 0 psi to 1000 psi | Psi | Dual | Stainless Steel | 1, 2 | €70.70 | |
 |
4CFK6 | Pressure | 3 1/2" | General Purpose | 0 psi to 1000 psi | Psi | Dual | Crimped Stainless Steel | 1, 2 | €86.42 |
