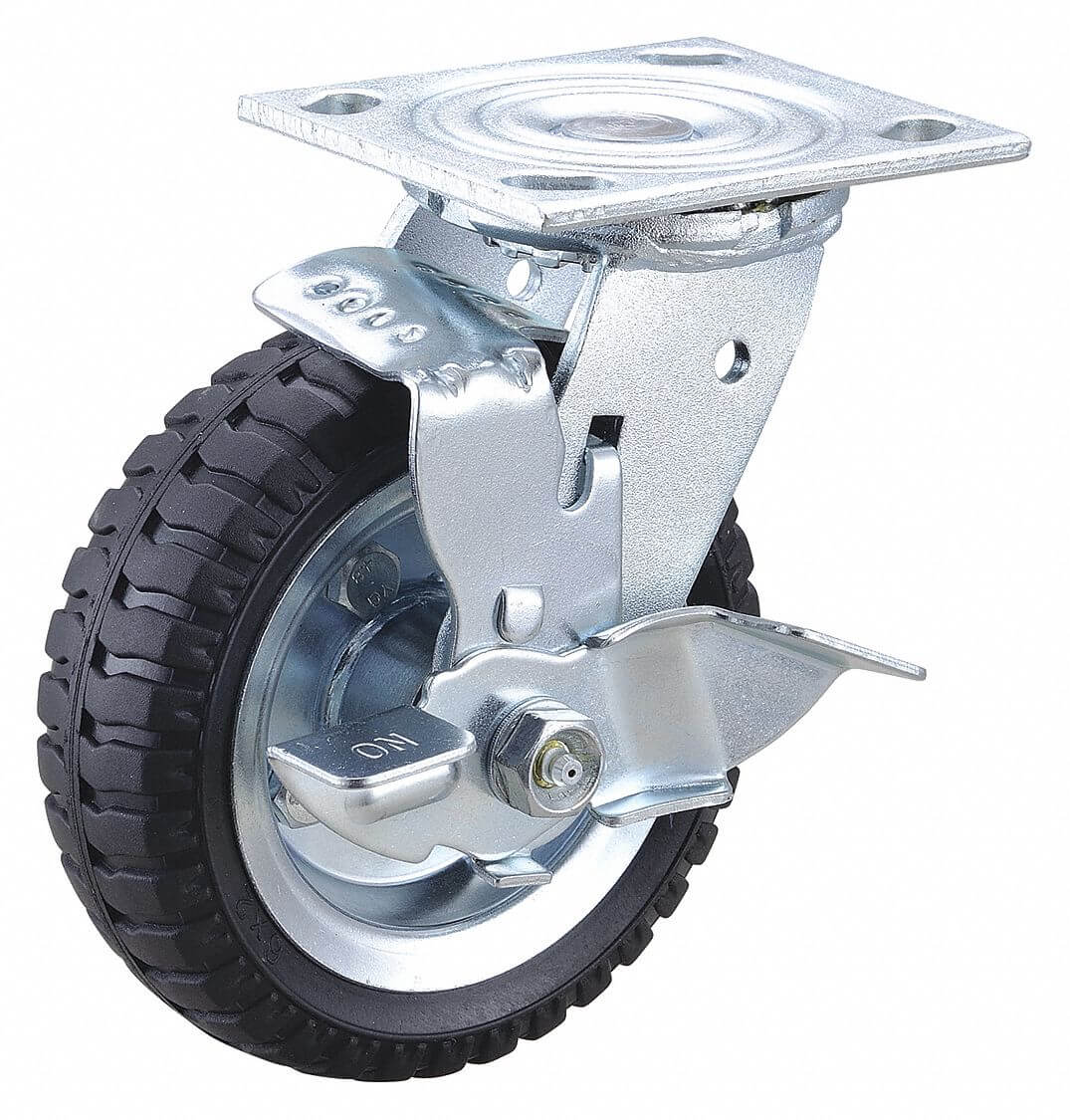

GRAINGER 437V24 Plate Caster With Flat Free Wheels, Swivel, 6 Inch Wheel Dia., Rubber
Get it by Monday, Feb 16
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€38.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | All Purpose Industrial And Commercial Casters |
| Bearing Type | Precision Ball |
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Silver |
| Core Material | Steel |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hardness | Shore A 75 |
| Hole Pattern | B |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/4" |
| Mounting Plate | 4" x 4.5" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Raceway Type | Double Ball |
| Standards | Ansi, Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 7/8" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Black |
| Wheel Core Material | Steel |
| Wheel Diameter | 6" |
| Wheel Material | Rubber |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 75 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
Shipping Info:
| Ship weight (kg) | 2.73 |
| Country of Origin | China |
Product Variants
| Product | Model | Outside Bolt Hole Spacing | Inside Bolt Hole Spacing | Mounting Height | Wheel Width | Load Rating | Wheel Bearing Type | Wheel/tread Material | Caster Sub-type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
26-USB-2313-S6-TG-FG-T2Z | 2 3/8" x 3 1/8" | 2 3/8" x 3 1/8" | 3 25/32" | 1 5/16" | 500 lbs. | Precision Ball | Nylon | Swivel | 1 | €114.21 | |
 |
2-75-GTB-0620-S-SL | 3 3/8" x 5 1/4" | 2 7/16" x 4 15/16" | 8" | 2" | 3000 lbs. | Precision Ball | Elastomer | Swivel | 1 | €609.63 | |
 |
400K28 | 1 3/4" x 3" | - | 6 1/8" | 1 1/2" | 400 lbs. | Precision Ball | Thermoplastic Rubber | Swivel | 1 | €71.43 | |
 |
400K43 | 2 5/8" x 3 5/8" | 3" x 3" | 6 1/2" | 2" | 750 lbs. | Roller | Polyurethane | Swivel | 1 | €38.49 | |
 |
400K47 | 2 5/8" x 3 5/8" | 3" x 3" | 7 1/2" | 2" | 800 lbs. | Roller | Polyurethane | Swivel | 1 | €51.64 | |
 |
400K48 | 2 5/8" x 3 5/8" | 3" x 3" | - | 2" | 800 lbs. | Roller | Polyurethane | - | 1 | €37.41 | |
 |
400K58 | 1 3/4" x 3 1/16" | 1 3/4" x 2 13/16" | 5 3/16" | 1 1/4" | 165 lbs. | Plain | Rubber | Rigid | 1 | €19.28 |
