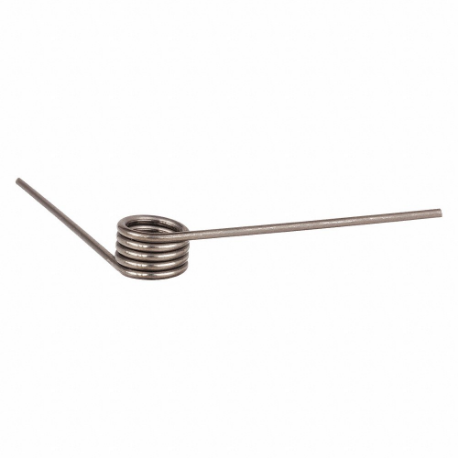

GRAINGER 3HPC8 Torsion Spring, 0.625 Inch Spring Length at Torque, 90 Deflection Angle Deg
Item: CQ7QRHModel: 3HPC8
7 In Stock
Ships within 2 days via
10.00% off
€7.84 /pkg. of 6
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Torsion Spring |
| Deflection Angle | 90° |
| Finish | Plain |
| Inside Diameter | 0.187" |
| Leg Length | 1 1/4" |
| Leg Orientation | Tangential |
| Material | Music Wire |
| Max. Rod Outside Dia. | 0.187" |
| Number Of Coils | 4.25 |
| Outside Dia. | 0.309" |
| Spring Length @ Torque | 0.21" |
| System Of Measurement | Imperial |
| Torque | 0.0164 lbs.-in. |
| Torque @ 1/2 Leg Length | 1.473 lbs.-in. |
| Total Active Coils New | 5.23 |
| Wind Direction | Right Hand |
| Wire Dia. | 1/25" |
| Wire Diameter | 0.04" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Leg Length | Wire Dia. | Outside Dia. | Torque | Torque @ 1/2 Leg Length | Wind Direction | Material | Deflection Angle | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3HPC3 | 1/2" | 0.017" | 4/25" | 0.0014 lbs.-in. | 0.125 lbs.-in. | Right Hand | Music Wire | 90° | 6 | €8.71 | |
| 3HPC4 | 3/4" | 0.025" | 0.235" | 0.0047 lbs.-in. | 0.402 lbs.-in. | Right Hand | Music Wire | 90° | 6 | €8.71 | |
| 3HPC5 | 1" | 0.03" | 0.281" | 0.0074 lbs.-in. | 0.67 lbs.-in. | Right Hand | Music Wire | 90° | 6 | €8.71 | |
| 3HPC6 | 1" | 0.032" | 0.288" | 0.0097 lbs.-in. | 0.879 lbs.-in. | Right Hand | Music Wire | 90° | 6 | €8.74 | |
| 3HPC9 | 1 1/4" | 0.045" | 0.357" | 0.0239 lbs.-in. | 2.143 lbs.-in. | Right Hand | Music Wire | 90° | 6 | €8.71 | |
| 3HPC7 | 1 1/4" | 0.035" | 0.315" | 0.0119 lbs.-in. | 1.071 lbs.-in. | Right Hand | Music Wire | 90° | 6 | €8.71 |
