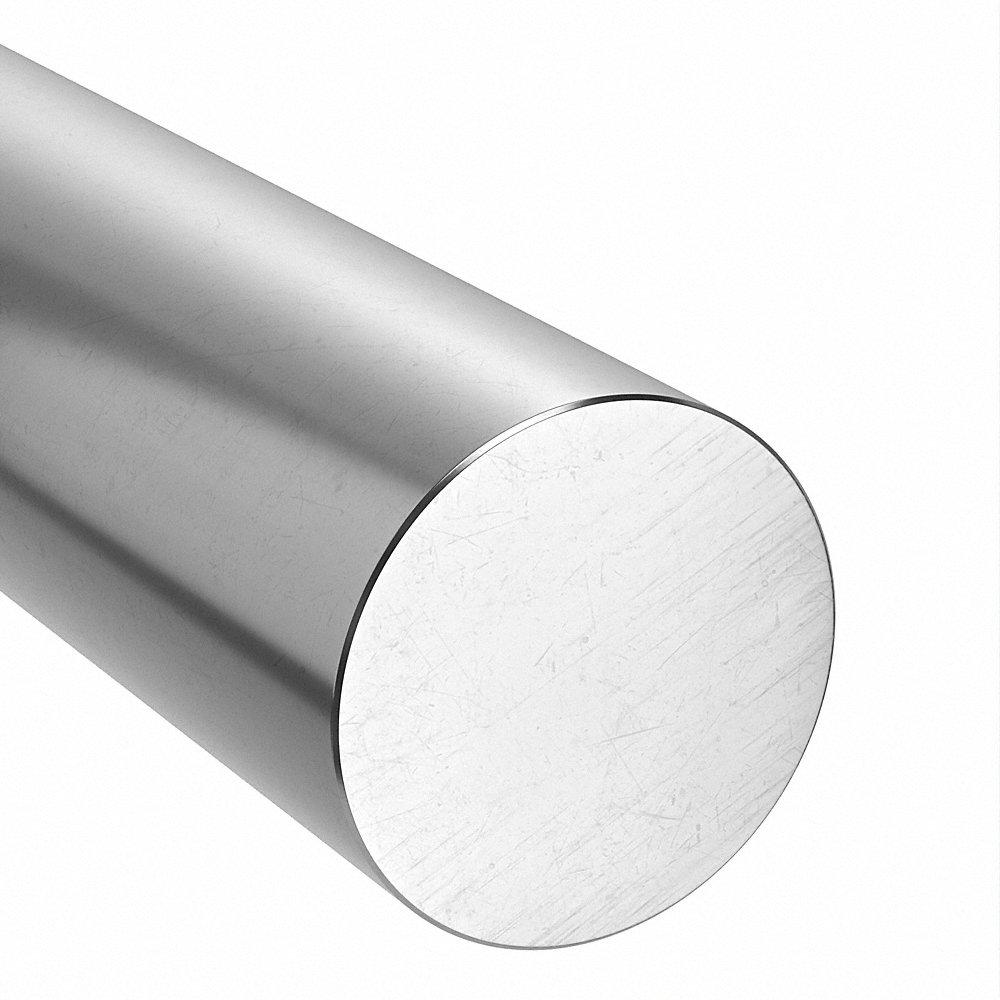

GRAINGER 3GTD2 Stainless Steel Rod 316, 1 3/4 Inch Outside Dia, 6 Ft Overall Length
Get it by Monday, Dec 22
10.00% off
€464.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod |
| Appearance | Shiny |
| Application | Aircraft Industry, Chemical Industry, Food Preparation Equipment, Medical Instruments, Oil Rig Pumps, Paper Pulp Handling Equipment, Pumps And Pump Shafts |
| Brinell Hardness | Brinell 131 |
| Elongation | 39% |
| Fabrication | Cold Finished |
| Heat Treatable | Yes |
| Heat Treatment | Annealed |
| Includes Material Certificate | Yes |
| Length | 6 ft. |
| Length Tolerance | -6" to +6" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Maximum Temperature | 1500°F |
| Mechanical Finish | Mill |
| Min. Temp. | Not Rated |
| Outside Dia. | 1 3/4" |
| Outside Dia. Tolerance | -0.003" to +0.003" |
| Overall Length | 6 ft. |
| Physical Properties/resistance Features | Corrosion Resistant, High Strength |
| Rockwell Hardness | Rockwell 75 |
| Shape | Rod |
| Standards | Ams 5648, Astm A276, Astm A479 |
| Tensile Strength | 80000 psi |
| Yield Strength | 35000 psi |
Shipping Info:
| Ship weight (kg) | 23.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Yield Strength | Tensile Strength | Grade | Heat Treatable | Fabrication | Rockwell Hardness | Brinell Hardness | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 20603_12_0 | 205000 psi | 220000 psi | Grade 18-8 | Yes | Cold Finished | Rockwell 111 | Brinell 421 | 1 1/2" | €1,049.49 | |
| 20603_24_0 | 205000 psi | 220000 psi | Grade 18-8 | Yes | Cold Finished | Rockwell 111 | Brinell 421 | 1 1/2" | €983.90 | |
| 20603_36_0 | 205000 psi | 220000 psi | Grade 18-8 | Yes | Cold Finished | Rockwell 111 | Brinell 421 | 1 1/2" | €1,316.82 | |
| 20603_48_0 | 205000 psi | 220000 psi | Grade 18-8 | Yes | Cold Finished | Rockwell 111 | Brinell 421 | 1 1/2" | €1,696.57 | |
| 20603_72_0 | 205000 psi | 220000 psi | Grade 18-8 | Yes | Cold Finished | Rockwell 111 | Brinell 421 | 1 1/2" | €2,445.71 | |
| 20601_12_0 | 205000 psi | 220000 psi | Grade 18-8 | Yes | Cold Finished | Rockwell 111 | Brinell 421 | 1 1/4" | €893.90 | |
| 20601_24_0 | 205000 psi | 220000 psi | Grade 18-8 | Yes | Cold Finished | Rockwell 111 | Brinell 421 | 1 1/4" | €1,039.51 |
