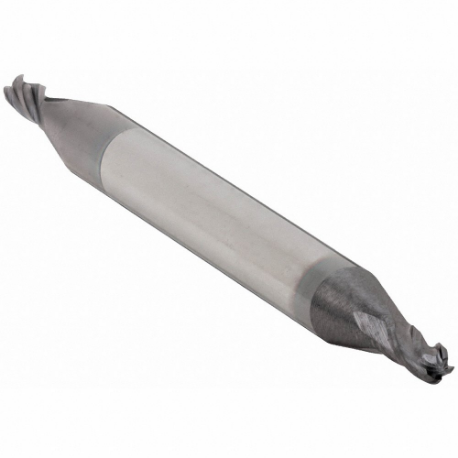

GRAINGER 242-031012 Ball End Mill, 4 Flutes, 3/64 Inch Milling Dia, 0 Inch Neck Length
Item: CQ2MUGModel: 242-031012Cross Ref: 19LW22
7 In Stock
Ships within 2 days via
10.00% off
€39.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Chip-breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 0.094" |
| Cutting Type | Center Cutting |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing, Roughing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Double End |
| Finish | Aluminum Titanium Nitride |
| Finish - Machining | AlTiN |
| Grade | General Purpose |
| Helix Angle | 30° |
| Length Of Cut | 3/32" |
| List Number | 242 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Measurement System | Fractional Inch |
| Milling Dia. | 3/64" |
| Neck Diameter | 0" |
| Neck Length | 0" |
| Number Of Flutes | 4 |
| Overall Length | 1 1/2" |
| Primary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 1/8" |
| Shank Type | Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Single End/double End | Double End |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Finish | List Number | End Type | Milling Dia. | Number Of Flutes | Shank Dia. | Overall Length | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
221-001395 | Bright, Uncoated | 221 | Single End | 1 mm | 2 | 3 mm | 39 mm | - | €18.35 | |
 |
221-001400B | Aluminum Titanium Nitride | 221 | Single End | 1 mm | 2 | 3 mm | 39 mm | - | €26.54 | |
 |
221-001400A | Tin | 221 | Single End | 1 mm | 2 | 3 mm | 39 mm | - | €21.91 | |
 |
221-001400C | Titanium Carbonitride | 221 | Single End | 1 mm | 2 | 3 mm | 39 mm | - | €22.91 | |
|
221-001410 | Bright, Uncoated | 221 | Single End | 1.5 mm | 2 | 3 mm | 39 mm | - | €22.43 | |
|
221-001410B | Aluminum Titanium Nitride | 221 | Single End | - | 2 | 3 mm | 39 mm | - | €28.27 | |
|
221-001410A | Tin | 221 | Single End | 1.5 mm | 2 | 3 mm | 39 mm | - | €20.03 |
