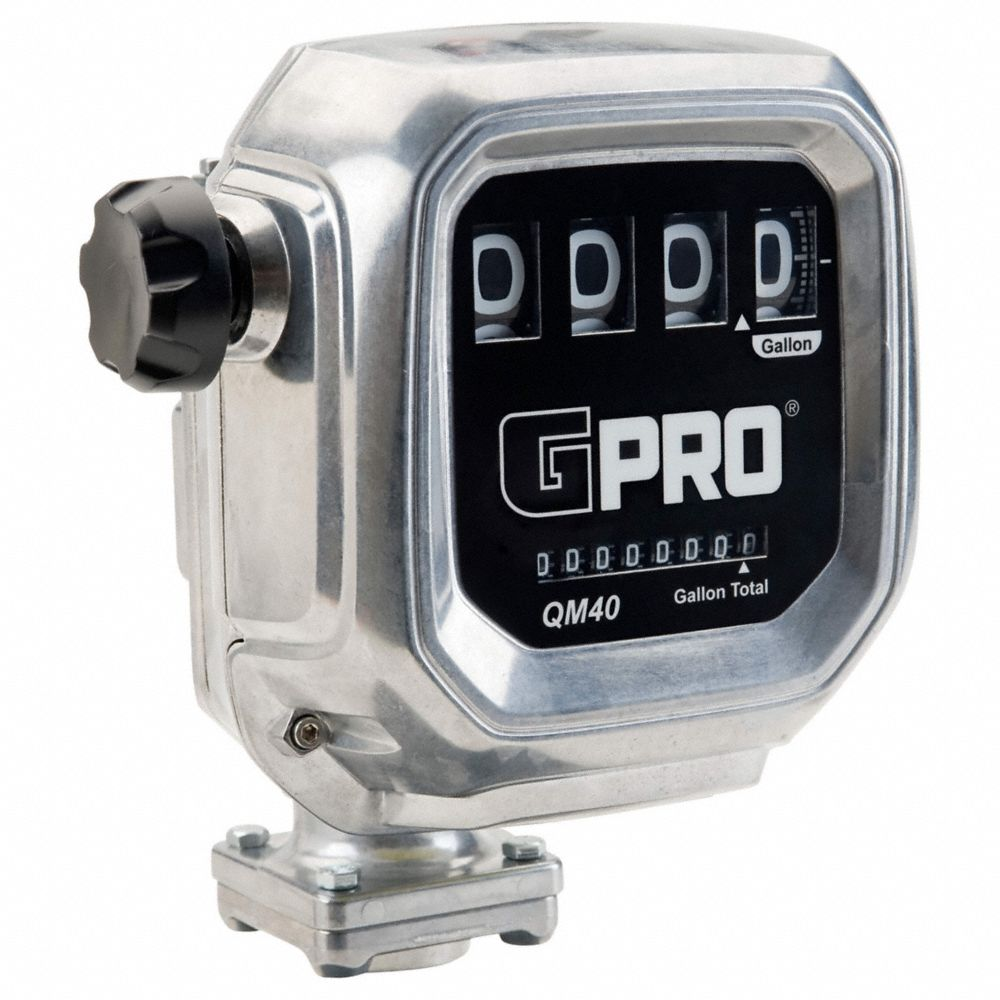

GPI QM40G8N Mechanical Fuel Meter, Modular, 2 - 40 GPM, 50 PSI, -40 to 52 Deg C Operating Temperature
Item: EA4CGJModel: QM40G8NCross Ref: 812N59
7 In Stock
Ships within 2 days via
5.00% off
€792.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical |
| Accuracy | +/-0.5% |
| Compatible Flow Material | B20, Diesel, E15, Gasoline, Kerosene , Diesel, B20, E15, Gasoline, Kerosene |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display Type | Mechanical |
| Flow Rate | 2-40 GPM |
| Flowmeter Type | Positive Displacement |
| Fluid Connection | 1" FNPT |
| Housing Material | Aluminum |
| Includes Pressure Gauge | No |
| Max. Flow Rate | 40 GPM |
| Max. Media Temp. | 125°F |
| Max. Operating Pressure | 50 psi |
| Max. Viscosity | 50 SUS |
| Min. Flow Rate | 2 GPM |
| Min. Media Temp. | -40°F |
| Mounting Location | Inline |
| Mounting Orientation | Horizontal |
| Output Type | Standard Frequency Pulse |
| Product Datasheet | gpi-qm40g8n.pdf |
| Product Type | Fuel Meter |
| Rotor Material | PPS |
| Shaft Material | Stainless Steel |
| Wetted Material | Acetal, Aluminum, Buna N, PPSU, Stainless Steel |
Shipping Info:
| Ship weight (kg) | 3.42 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 25.91 |
| Ship width (cm) | 19.56 |
| Country of Origin | US |
Documentation:
