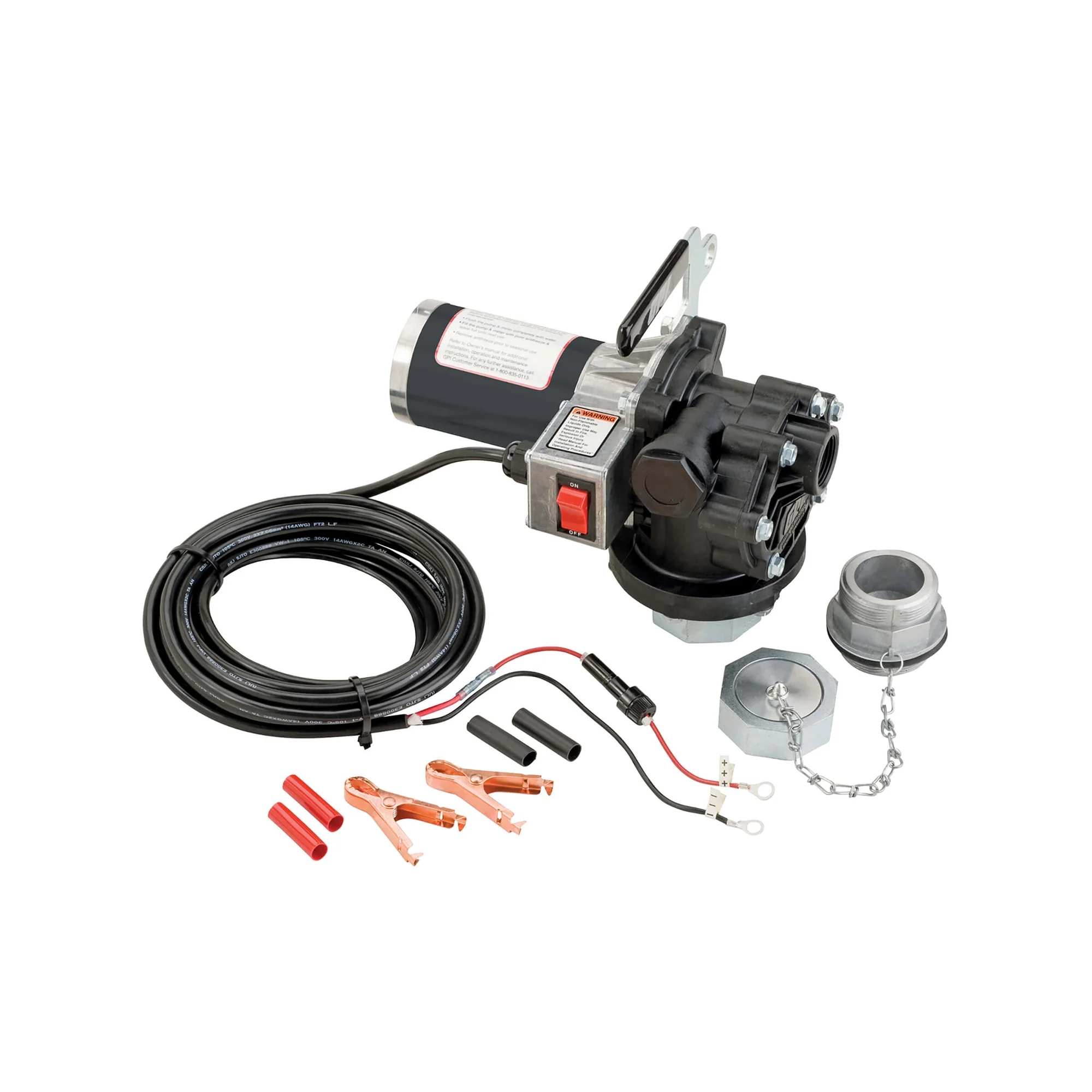

GPI P-200H-2UR 118000-2 Drum Pump, Agricultural, 1/3 hp, 12V DC, 3500 RPM, 8 gpm Max. Flow Rate
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,492.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Adapter Material | Aluminum |
| Adapter Type | Spin Collar |
| Agency Compliance | CSA |
| Amps | 15A |
| Compatible Chemicals | Automatic Transmission Fluid, Brake Fluid, Deionized Water, Fresh Water, Fungicides, Herbicides, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil, Pesticides, Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid |
| Cord Length | 15 ft. |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | NPT |
| Discharge Tube Inside Dia. | 1" |
| Discharge Tube Outside Dia. | 1" |
| Display Qty | 1 |
| Duty Cycle | Intermittent |
| Explosion Proof | No |
| Features | 12 V(Dc), 15 Ft (4.6 M) Power Code, 2 In NPT Union Ring, 8 Gpm (30 L/Min), Chemical Transfer Pump, Corrosion Resistance., Gpi 118000-2, Lightweight, Molded Plastic, P-200H-2Ur |
| Fits Container Size | 55 gal., 275 gal., 330 gal. |
| Fluid Temp. Range | -20°F to +120°F |
| Food Grade | No |
| For Container Size | 55 gal., 275 gal., 330 gal. |
| For Container Type | Drum, Tote |
| For Media Type | Automatic Transmission Fluid, Brake Fluid, Fungicides, Herbicides, Hydraulic Oil, Motor Oil, Pesticides, Stoddard Solvent, Water, Windshield Washer Fluid |
| For Use With | Gpi 118000-2, P-200H-2UR |
| Full Load Amps | 15A |
| Gasket Material | Fluorocarbon |
| Height Above Container | 11" |
| Hose Inside Dia. | 1" |
| Housing Material | Polyethylene |
| Housing Material - Pumps | Polyethylene |
| Includes | 15 Ft Power Cord |
| Includes Bung Adapter | No |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Length | 11" |
| Max. Flow Rate | 8 GPM |
| Max. Fluid Temp. | 120°F |
| Max. Head | 18 ft. |
| Max. Head Pressure | 16 psi |
| Max. Oil Flow | 8 GPM |
| Max. Outlet Pressure | 6 psi |
| Max. Pressure | 6 psi |
| Max. Temp. | 120°F |
| Max. Viscosity | 450 cPS |
| Media Type | Automatic Transmission Fluid, Brake Fluid, Fungicides, Herbicides, Hydraulic Oil, Motor Oil, Pesticides, Stoddard Solvent, Water, Windshield Washer Fluid |
| Metered | No |
| Min. Fluid Temp. | -20°F |
| Min. Temp. | -20°F |
| Motor Enclosure | Tenv |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Hp | 1/3 hp |
| Motor Speed | 3500 RPM |
| Motor Type | Electric DC |
| Nominal Voltage | 12V DC |
| Outlet Type | NPT |
| Overall Length | 11" |
| Phase | 1 |
| Power Source | Electric |
| Product Datasheet | gpi-p-120h-2ur.pdf |
| Pump Connection Inside Dia. | 1" |
| Pump Connection Outside Dia. | 1 1/4" |
| Pump Connection Type | NPT |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Runs Dry | Yes |
| Seal Material | NBR |
| Self-priming | Yes |
| Suction Tube Type | Plastic Adjustable |
| Variable Speed | No |
| Voltage Rating | 12V DC |
| Wetted Material | Stainless Steel, Polybutylene Terephthalate Polyester |
| Wetted Material Grade | Grade 316 |
| Wetted Materials | 316 Stainless Steel, PBT Polyester |
Shipping Info:
| Ship weight (kg) | 7.83 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 29.72 |
| HS code | 8413110000 |
| Country of Origin | US |
Product Details:
- DEF Compatible (No)
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Max. Viscosity | Includes Suction Tube | Motor Type | Motor Hp | Voltage Rating | Nominal Voltage | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P-120H-2UR | 12 GPM | 10 cPS | No | Electric DC | 1/5 hp | 12V DC | 12V DC | 15A | €1,450.31 | |
 |

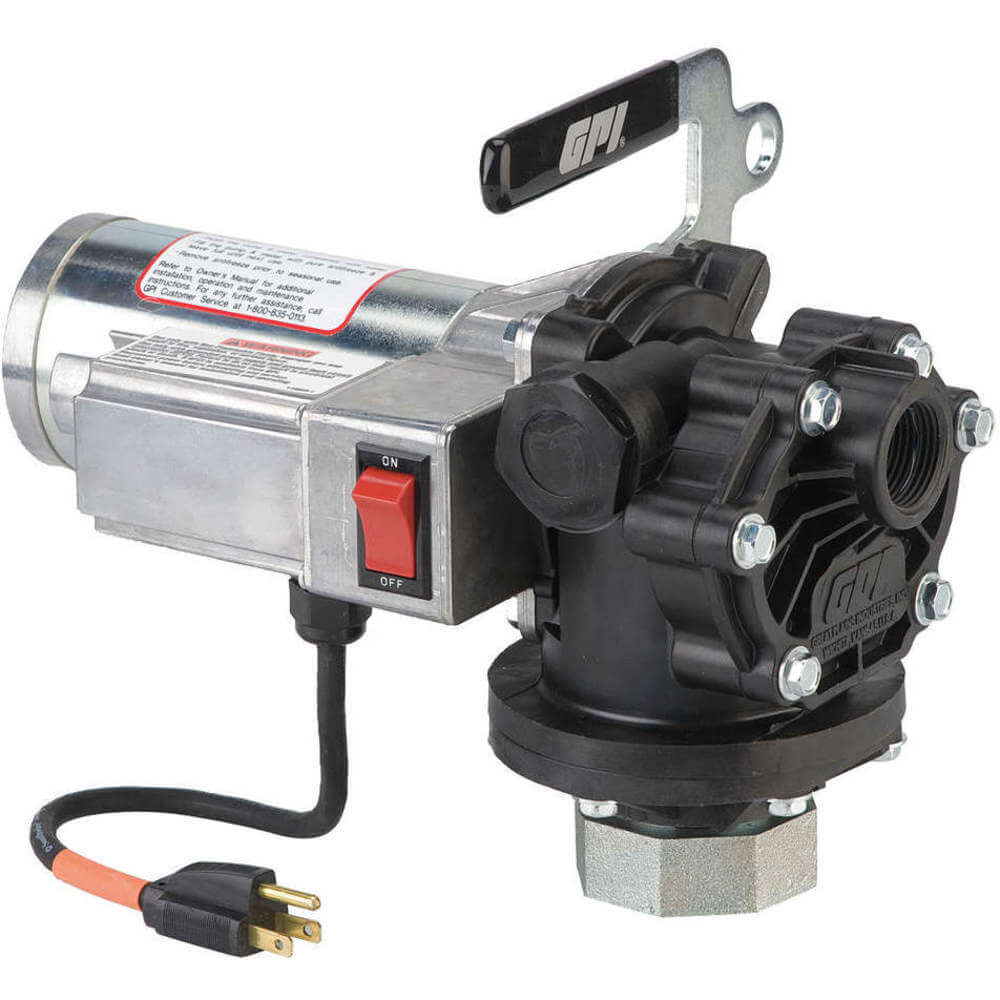

PA-120H-2UR | 12 GPM | 10 cPS | Yes | Electric AC | 1/4 hp | 115V AC | 110V AC | 3A | €1,847.82 | |
 |

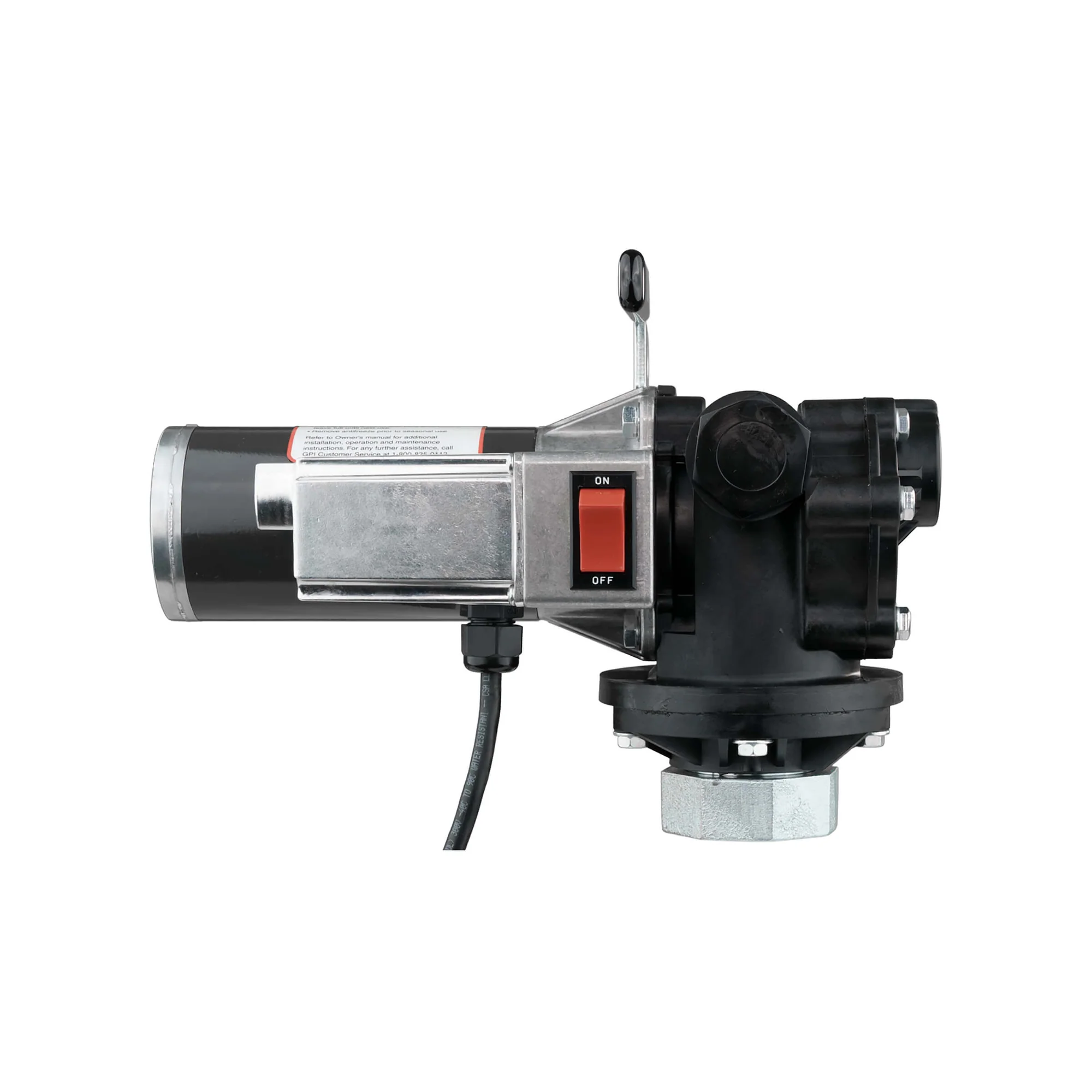

PA-200H-2UR | 8 GPM | 450 cPS | Yes | Electric AC | 1/4 hp | 115V AC | 110V AC | 3A | €2,176.24 |
