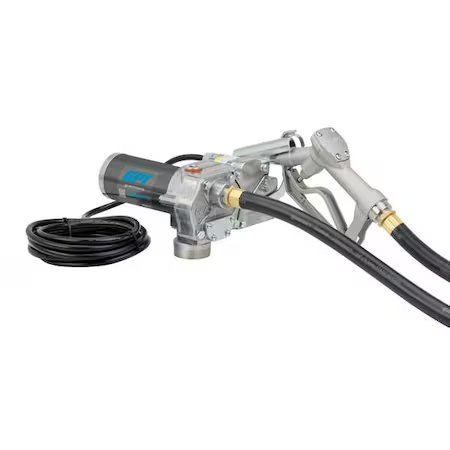

GPI M-150S-AU 110000-100 Fuel Pump, Automatic, 3 2/5 Inch Outlet Size
Get it by Tuesday, Aug 25
5.00% off
€682.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuel Pump |
| Agency Compliance | Ce, Class I Div 2, Culus, Eec |
| Amps | 18A |
| Bung Adapter Connection Type | MNPT |
| Bung Adapter Material | Aluminum |
| Bung Connection Dia. | 2" |
| Compatible Fluids | Gasoline, Diesel, Kerosene |
| Container Size | 10 gal., 500 gal. |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | FNPT |
| Discharge Hose Size | 3/4" x 12 ft. |
| Discharge Lift | Up to 15 ft. (4.5m) at Sea Level 70°F (21.1°C) |
| Dispensing Hose Size | 12 ft. x 3/4" |
| Dispensing Hose Type | MNPT |
| Duty Cycle | 30 min. On, 30 min. Off , 30 min. On/30 min. Off |
| Explosion Proof | Yes |
| Flow Rate | 15 GPM |
| Food Grade | No |
| For Container Size | 10 gal., 500 gal. |
| For Media Type | Diesel, Gasoline, Kerosene |
| Frequency | 60 Hz |
| Full Load Amps | 25A |
| Fuse Amps | 25A |
| Height Above Container | 11" |
| Hose Cover Material | Nitrile |
| Hose Dia. | 3/4" |
| Hose Length | 12 ft. |
| Hose Tube Material | Nitrile |
| Housing Finish | Powder Coating |
| Housing Material | Aluminum |
| Hp | 1/5 hp |
| Included | Automatic Unleaded Nozzle, Dispensing Hose, Factory Installed Power Cord, Fuse Assembly, Lockable Nozzle Holder, Pump With Spin Collar, Tank Adapter, Telescoping Suction Pipe |
| Included Bung Adapter | Yes |
| Included Spout | No |
| Included Suction Tube | Yes |
| Inlet Size | 1" |
| Inlet Type | FNPT |
| Max. Discharge Pressure | 15 psi |
| Max. Flow Rate | 15 GPM |
| Max. Fluid Temp. | 125°F |
| Max. Head | 4.08 ft. |
| Max. Outlet Pressure | 15 psi |
| Max. Viscosity | 50 SUS |
| Meter | Not Included |
| Min. Fluid Temp. | -20°F |
| Motor Enclosure | Explosion Proof |
| Motor Hp | 1/5 hp |
| Motor Speed | 1900 RPM |
| Mounting Size | 2" |
| Mounting Thread Size | 2" |
| Mounting Thread Type | MNPT |
| Mounting Type | Bung , Spin Collar |
| No. Of Phase | 1 |
| Nozzle Holder Type | Lockable |
| Nozzle Material | Aluminum |
| Nozzle Size | 3/4" |
| Nozzle Type | Automatic Diesel , FNPT Inlet, Automatic Shut Off, Unleaded |
| Operating Pressure | 15 psi |
| Operating Temp. | -20°F to +125°F |
| Outlet Size | 3/4" |
| Outlet Type | FNPT |
| Power Cord | 18 ft. (5.5m), 12/2 AWG, Factory Installed |
| Power Cord Length | 18 ft. |
| Power Source | Electric |
| Pump Connection Type | FNPT |
| Pump Housing Material | Corrosion Resistant Die-Cast Aluminum |
| Pump Kit Type | Pump With Hose, Nozzle |
| Runs Dry | No |
| Seal Material | Buna N |
| Self Priming | Yes |
| Spout Material | Aluminum |
| Suction Lift | Up to 5 ft. (1.5m) at Sea Level 70°F (21.1°C) |
| Suction Pipe | Polypropylene, Telescoping 15" to 40" x 1" MNPT |
| Suction Tube Length | 40" |
| Suction Tube Material | Polypropylene |
| Suction Tube Outside Dia. | 1" |
| Technology | Rotary Gear |
| Thermal Protection | Yes |
| Type | Rotary Gear |
| Variable Speed | No |
| Voltage | 12V DC |
| Voltage Input | 12V DC |
| Wetted Material | Acetal, Aluminum, FKM, NBR, PPS, Stainless Steel |
| Working Temp. | -20°F to +125°F |
| Working Temp. | -20 To 125 Deg. F |
Shipping Info:
| Ship weight (kg) | 11.37 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Details:
- Sub-Brand: GREAT PLAINS INDUSTRIES
Product Variants
| Product | Model | Mounting Type | Duty Cycle | Max. Head | Nozzle Holder Type | Agency Compliance | Max. Flow Rate | Housing Material | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M-150S-EM | Direct | 30 min. On/30 min. Off | 5.5 ft. | Non-Lockable | Ce, Class I Div 2, Culus | 15 GPM | Aluminum | 12V DC | €603.68 |
