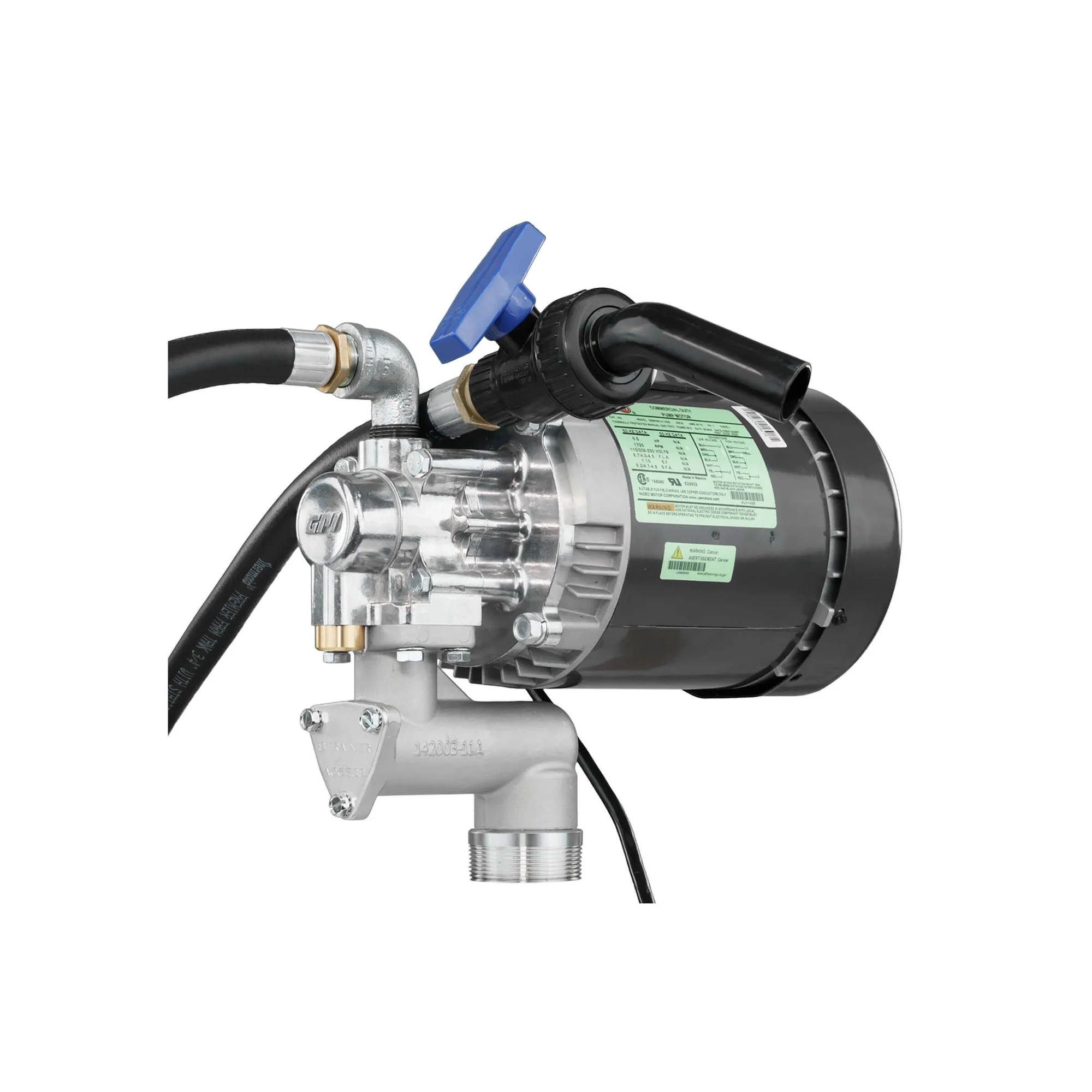

GPI L5116 142100-01 Oil Transfer Pump, 115/230V AC, 1/2 hp, 4 gpm Max. Flow
Get it by Tuesday, Mar 31
5.00% off
€1,376.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Oil Transfer Pump |
| Adapter Connection Type | MNPT |
| Adapter Material | Aluminum |
| Amps Rated | 7.5/3.7A |
| Body Material | Aluminum |
| Compatible Chemicals | Anti-Freeze, Hydraulic Fluid, Oil |
| Container Size | 10 gal., 500 gal. |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | FNPT |
| Dispensing Hose Size | 8 ft. x 3/4" |
| Display Qty | 1 |
| Duty Cycle | 30 Min. On/30 Min. Off |
| Explosion Proof | Yes |
| Flow Rate | 4 GPM |
| Food Grade | No |
| For Container Size | 10 gal., 500 gal. |
| For Media Type | Anti-Freeze, Hydraulic Fluid, Oil |
| Frequency (hz) | 60 Hz |
| Height Above Container | 12" |
| Horsepower | 1/2 hp |
| Hose Cover Material | Nitrile |
| Hose Outside Dia. | 3/4" |
| Hose Tube Material | Nitrile |
| Housing Material - Pumps | Aluminum |
| Hp | 1/2 hp |
| Includes | Adjustable Suction Pipe, Ball Valve Nozzle, Dispensing Hose, Street Elbow |
| Includes Bung Adapter | No |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | Yes |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Inlet Type | FNPT |
| Max. Discharge Pressure | 50 psi |
| Max. Flow Rate | 4 gpm |
| Max. Flow Rate | 16 QPM , 4 GPM |
| Max. Fluid Temp. | 140°F |
| Max. Outlet Pressure | 50 psi |
| Max. Temp. | 140°F |
| Maximum Viscosity | 813 SUS |
| Metered | No |
| Min. Fluid Temp. | 0°F |
| Motor Enclosure | Explosion Proof |
| Motor Hp | 2/5 hp |
| Motor Rpm | 1800 RPM |
| Mount Type | Bung |
| Mounting Thread Size | 2" |
| Mounting Thread Type | MNPT |
| Mounting Type | Center Base |
| Nominal Voltage | 110V AC |
| Nozzle | Spout, Thermoplastic |
| Nozzle Material | Thermoplastic |
| Nozzle Operation | Manual |
| Number Of Phases | 1 |
| Operating Temp. | See Viscosity Chart For Operating Temperature Range |
| Outlet Size | 3/4" |
| Outlet Type | FNPT |
| Power Cord | 3 ft. (0.91 m) |
| Power Cord Length | 3 ft. |
| Power Source | Electric |
| Product Datasheet | gpi-l5116.pdf |
| Pump Connection Type | FNPT |
| Pump Housing Material | Corrosion Resistant Aluminum |
| Rated Voltage | 12V DC |
| Runs Dry | No |
| Seal Material | Buna-N |
| Self-priming | Yes |
| Spout Material | Poly |
| Suction Pipe | Polypropylene, Telescoping 15" to 40" x 1" MNPT |
| Suction Tube Length | 40" |
| Suction Tube Material | Polypropylene |
| Suction Tube Od | 1" |
| Technology | Gerotor |
| Thermal Protection | Yes |
| Type | Electric |
| Variable Speed | No |
| Voltage Input | 115/230V AC |
| Wetted Materials | Aluminum, Brass, NBR, Stainless Steel, Steel, Zinc Plated Steel |
Shipping Info:
| Ship weight (kg) | 13.43 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 35.56 |
| HS code | 8413309030 |
| Country of Origin | US |
Product Details:
- Sub-Brand: GREAT PLAINS INDUSTRIES
Documentation:
