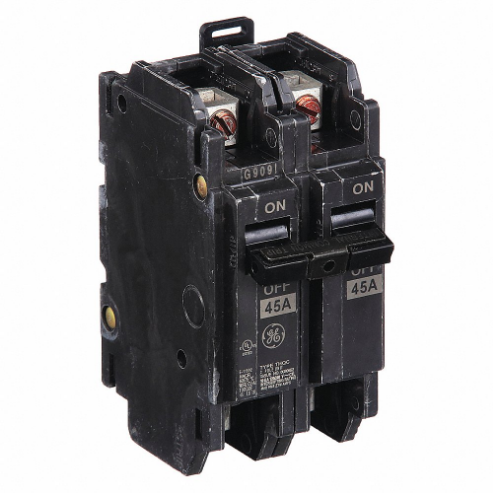

GENERAL ELECTRIC THQC2145WL Molded Case Circuit Breaker, 2 Poles, 45A, 120 / 240V
Item: CE6KJUModel: THQC2145WLCross Ref: 6AXU3
7 In Stock
Ships within 2 days via
10.00% off
€204.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 45A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Surface/Din Rail |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 2.38" |
| For Use With | Ge Panelboards |
| Frame Size | 100A, THQ |
| Frame Type | THQC |
| Length | 3.28" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 8 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Terminal Connection | Lug |
| Voltage | 240V AC |
| Voltage Type | AC |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 5.08 |
Product Details:
- GE THQC2145WL circuit breaker designed to prevent overload and short circuit hazards
- Features feed-thru connection design with line & load side lug terminals for hassle free installation and wiring
- Thermal magnetic trip provides both long time & instantaneous trip functions for reacting against severe short-circuits at once while avoiding tripping on mild overloads
- Meets UL standards
Product Variants
| Product | Model | Number Of Poles | Amps | Max. Wire Size | Circuit Breaker Type | Frame Size | Ac Voltage Rating | Phase | Voltage Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
THQC1115GF | 1 | 15A | - | - | - | - | - | AC | - | RFQ
|
|
THQC1115GFT | 1 | 15A | - | - | - | - | - | AC | €140.78 | RFQ
|
|
THQC1120GFT | 1 | 20A | - | - | - | - | - | AC | €140.78 | RFQ
|
|
THQC1130GFT | 1 | 30A | - | - | - | - | - | AC | €140.78 | RFQ
|
 |
THQC21100WL | 2 | 100A | - | - | - | - | - | AC | €104.64 | RFQ
|
|
THQC2115WL | 2 | 15A | 8 AWG | Standard | 100A, THQ | 120/240V AC | Single | AC | €225.12 | |
 |
THQC2120WL | 2 | 20A | 8 AWG | Standard | 100A, THQ | 120/240V AC | Single | AC | €225.76 |
