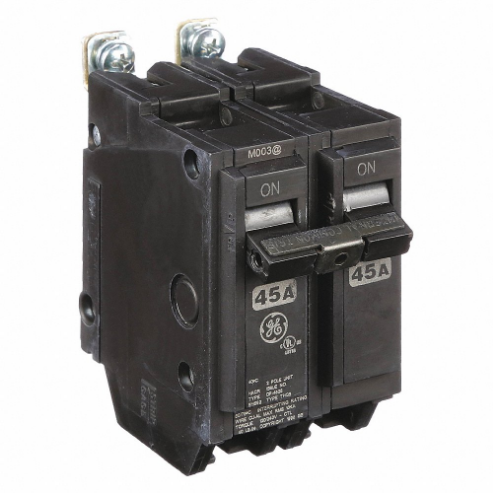

GENERAL ELECTRIC THQB2145 Molded Case Circuit Breaker, 45A, 2P, Bolt-On Style
Item: CE6KHUModel: THQB2145Cross Ref: 3HXV5
7 In Stock
Ships within 2 days via
10.00% off
€198.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 45A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 3.28" |
| For Use With | Lighting Panels, Load Centers |
| Frame Size | 100A, THQ |
| Frame Type | THQB |
| Length | 3.53" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 8 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Terminal Connection | Lug |
| Voltage | 240V AC |
| Voltage Type | AC |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 8.97 |
| Ship width (cm) | 2.54 |
Product Details:
- GE THQB2145 circuit breaker designed for limiting let through currents, offering protection to sensitive downstream components
- Thermal magnetic trip unit offers instantaneous and time delayed trip functions for maximum overcurrent protection
- Bolt-on design provides easy installation and complete protection from vibrations, eliminating the risk of loose connections
- Molded case holds the current carrying components, trip devices and other mechanisms in a compact space
- UL-listed
Product Variants
| Product | Model | Number Of Poles | Ac Voltage Rating | Dc Voltage Rating | Max. Air Rating | Price | |
|---|---|---|---|---|---|---|---|
 |
THHQB1115 | 1 | - | - | - | €48.76 | |
 |
THHQB1115AF | 1 | - | - | - | €281.95 | |
 |
THHQB1115GFT | 1 | - | - | - | €298.06 | |
 |
THHQB1130GFT | 1 | - | - | - | €298.06 | |
|
THHQB1135 | 1 | - | - | - | €50.74 | |
 |

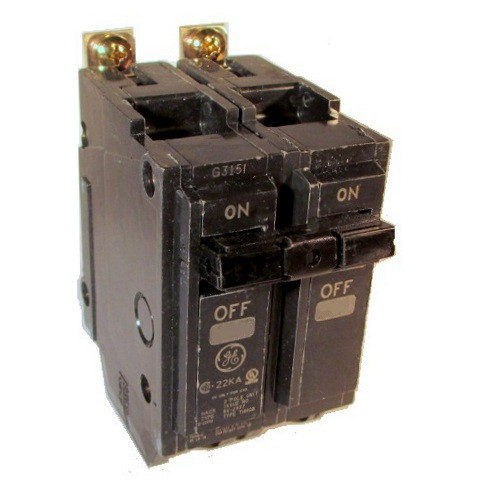

THHQB21100 | 2 | - | - | - | €142.40 | |
|
THHQB2115 | 2 | - | - | - | €112.31 |
