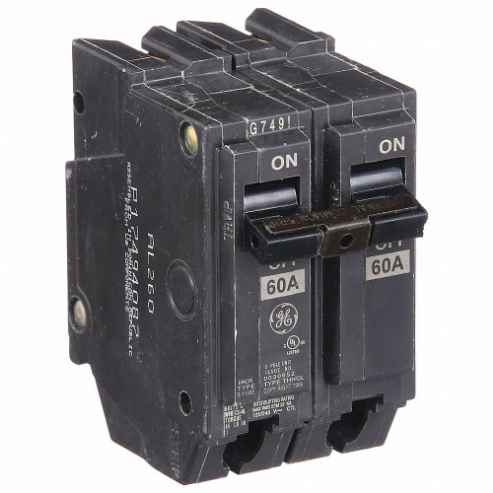

GENERAL ELECTRIC THHQL2160 Molded Case Circuit Breaker, 2 Poles, 60A, 22kAIC at 240V
Item: CE6KKVModel: THHQL2160Cross Ref: 3HXG8
7 In Stock
Ships within 2 days via
10.00% off
€70.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 60A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | High Interrupting Capacity |
| Compatible Panelboard/load Center Series | Series AQ |
| Dc Voltage Rating | Not Rated |
| Depth | 2.38" |
| For Use With | Power Mark Gold Load Centers And Aq Lighting Panels |
| Frame Size | THQ |
| Frame Type | THQL |
| Length | 3.28" |
| Max. Air Rating | 22 kA At 120/240V AC |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 8 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Terminal Connection | Lug |
| Voltage | 240V AC |
| Voltage Type | AC |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 5.08 |
Product Details:
- GE THHQL2160 circuit breaker designed to prevent overload and short circuit hazards
- Features thermal-magnetic trip mechanism to offer long-time and instantaneous trip functions
- Plug-in connection for easy installation
- Load side lug terminals for secure connection in limited loadcentre space
- Adheres to UL standards
