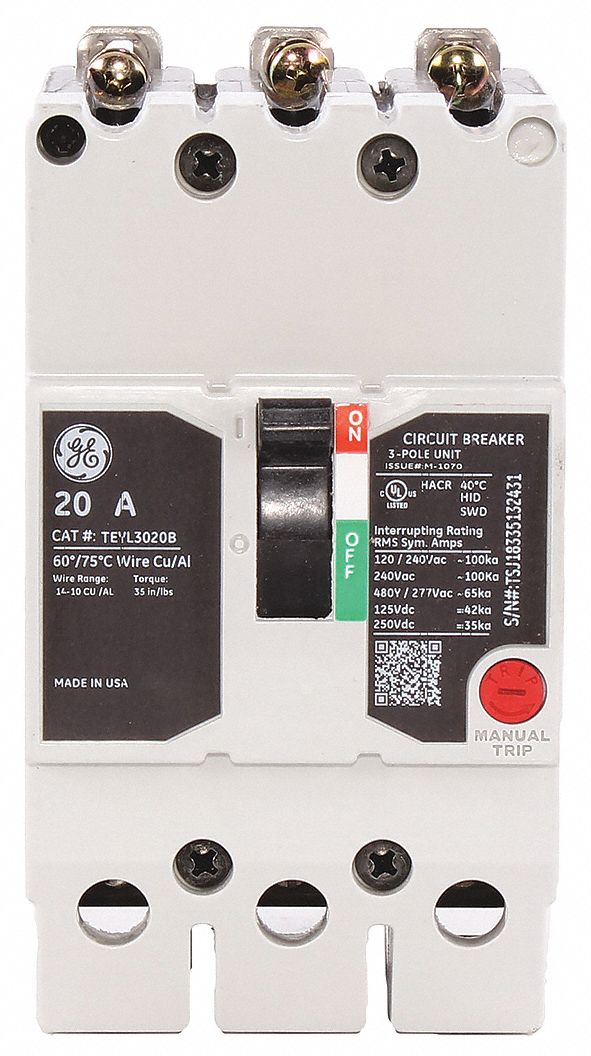

GENERAL ELECTRIC TEYL3020B Circuit Breaker 20a 3p 277/480vac 65ka
Item: AG2VJBModel: TEYL3020BCross Ref: 32HZ54
7 In Stock
Ships within 2 days via
5.00% off
€887.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 277/480V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage | 250V AC , 250V DC |
| Depth | 3" |
| For Use With | Ge As Lighting Panels |
| Frame Size | 125A, TEY |
| Height | 5 1/5" |
| Instantaneous Trip | Fixed |
| Max. Air Rating | 65kA |
| Max. Air Rating | 65 kA At 277/480V AC |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 14 AWG |
| Mounting | Bolt On Panelboard |
| No. Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Series | TEY Series |
| Terminal Connection | Lug |
| Terminal Connection Type | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.98 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 15.24 |
| HS code | 8536200020 |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | No. Of Poles | Amps | Phase | Ac Voltage Rating | Dc Voltage | Min. Wire Size | Terminal Connection Type | Max. Air Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TEYL1015B | 1 | 15A | 1 | 277V AC | 125V DC | 14 AWG | Screw Clamp | 65 kA At 277/480V AC | €346.57 | |
| TEYL1020B | 1 | 20A | 1 | 277V AC | 125V DC | 14 AWG | Screw Clamp | 65 kA At 277/480V AC | €346.57 | |
| TEYL1025B | 1 | 25A | 1 | 277V AC | 125V DC | 10 AWG | Lug | 65 kA At 277/480V AC | €371.14 | |
| TEYL1030B | 1 | 30A | 1 | 277V AC | 125V DC | 10 AWG | Lug | 65 kA | €346.57 | |
| TEYL1035B | 1 | 35A | 1 | 277V AC | 125V DC | 10 AWG | Lug | 65 kA At 277/480V AC | €404.80 | |
| TEYL1040B | 1 | 40A | 1 | 277V AC | 125V DC | 10 AWG | Lug | 65 kA At 277/480V AC | €404.80 | |
| TEYL1045B | 1 | 45A | 1 | 277V AC | 125V DC | 10 AWG | Lug | 65 kA | €404.80 |
