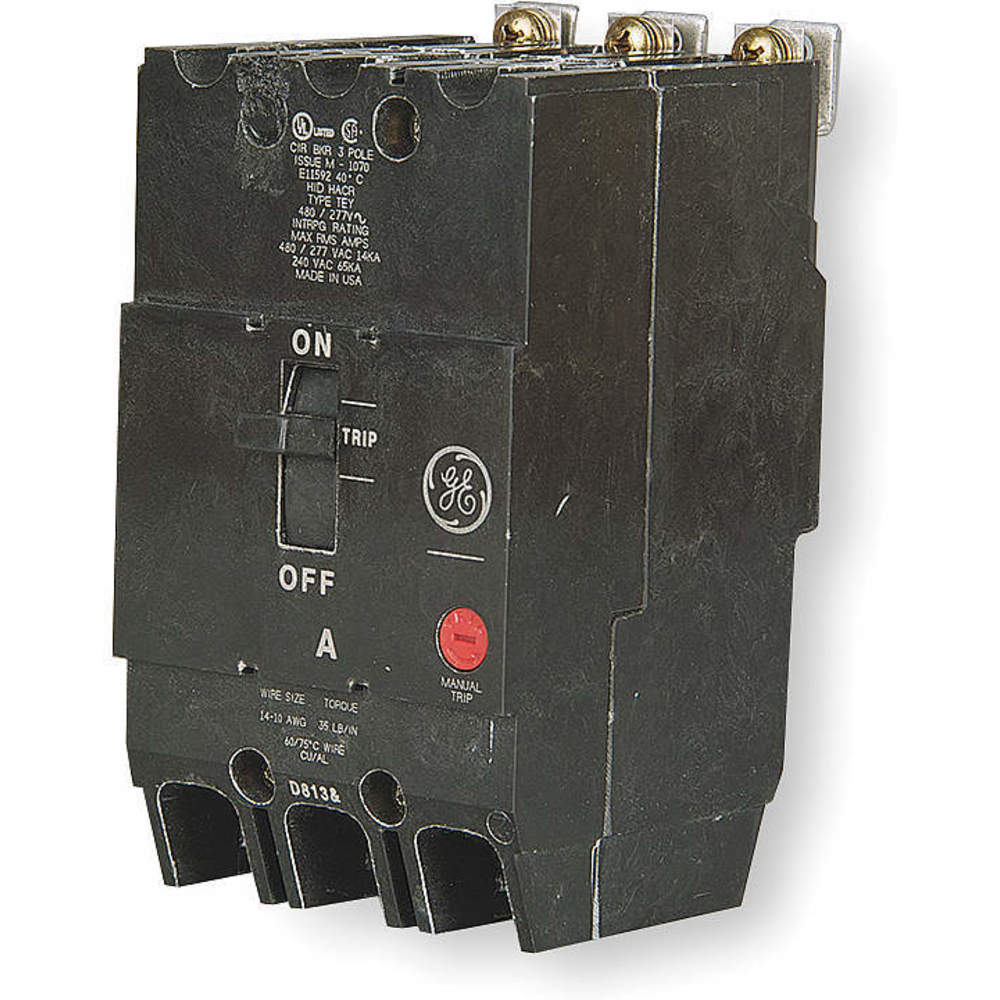

GENERAL ELECTRIC TEY360 Circuit Breaker 3pole 60a Tey 277/480v
Item: AC9PRZModel: TEY360Cross Ref: 3HXF7
7 In Stock
Ships within 2 days via
10.00% off
€1,101.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 277/480V AC |
| Air @ 120v Ac | 14 kA |
| Air @ 240vac | 14 kA |
| Air @ 277v Ac | 14 kA |
| Air @ 480v Ac | 14 kA |
| Amps | 60A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | 250V AC |
| Depth | 3.06" |
| For Use With | Ge Ae Lighting Panels |
| Frame | 125A/TEY |
| Height | 5 1/4" |
| High Amp Trip Setting | 1250A |
| Instantaneous Trip | Fixed |
| Length | 5 1/4" |
| Max. Air Rating | 14kA |
| Max. Air Rating | 14 kA At 277/480V AC |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 10 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | TEY Series |
| Standards | Csa, Ul |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.93 |
| Ship height (cm) | 14.22 |
| Ship length (cm) | 22.1 |
| Ship width (cm) | 16.26 |
| HS code | 8536308000 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Amps | Ac Voltage Rating | Phase | Phase Connection | Frame Size | Min. Wire Size | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TEY1100 | 1 | 100A | 277/480V AC | Single | Any | - | 4 AWG | Lug | €557.19 | |
| TEY115 | 1 | - | 277V AC | - | - | TEY | 14 AWG | Screw Clamp | €324.83 | |
| TEY120 | 1 | 20A | 277/480V AC | Single | Any | - | 14 AWG | Screw Clamp | €150.64 | |
| TEY125 | 1 | 25A | 277/480V AC | Single | Any | - | 14 AWG | Screw Clamp | €324.81 | |
| TEY130 | 1 | 30A | 277/480V AC | Single | Any | - | 14 AWG | Screw Clamp | €324.83 | |
| TEY135 | 1 | 35A | 277/480V AC | Single | Any | - | 10 AWG | Lug | €353.89 | |
| TEY140 | 1 | 40A | 277V AC | - | - | TEY | 10 AWG | Lug | €324.83 |
