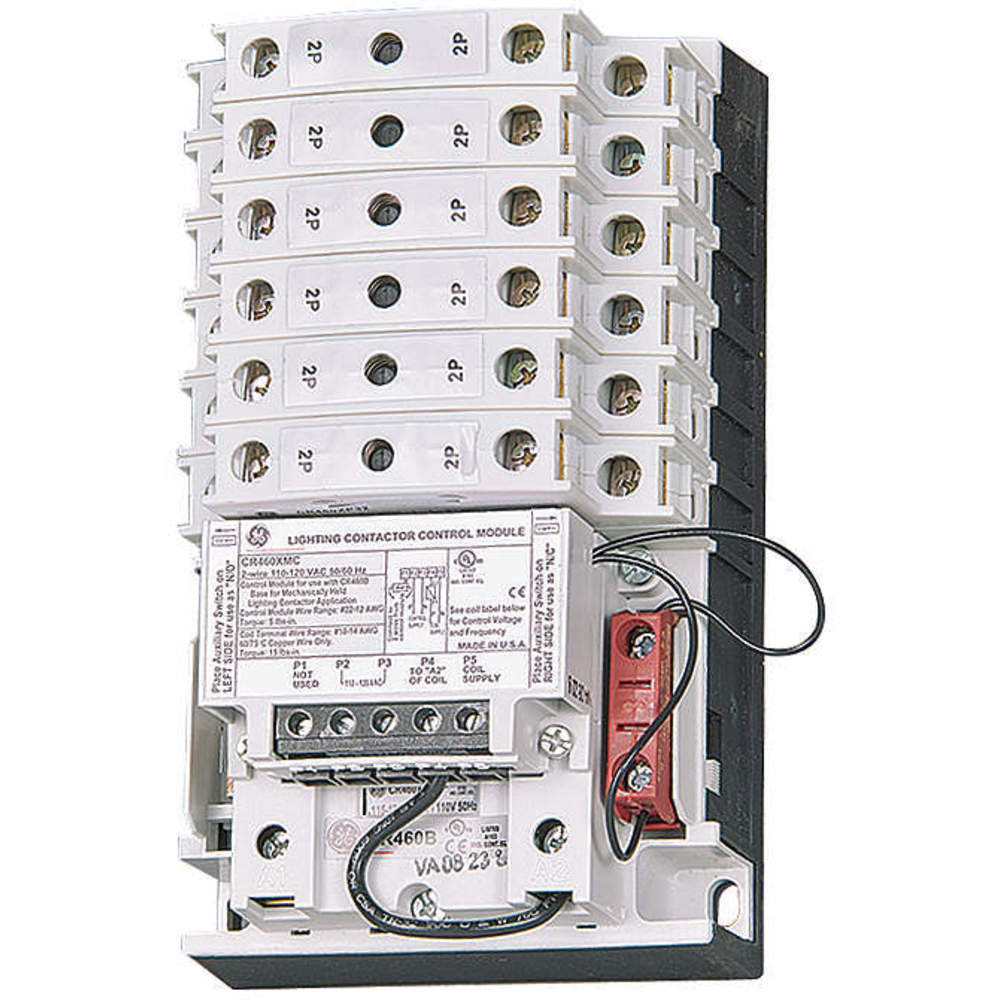

GENERAL ELECTRIC CR463MD0CJA Light Contactor Mech 120vac 30a Open 12p
Item: AC9QAKModel: CR463MD0CJACross Ref: 3HYH7
7 In Stock
Ships within 2 days via
10.00% off
€1,906.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lighting Contactor |
| Contactor Style | Mechanically Held Lighting Contactor |
| Contactor Type | Mechanically Held |
| Depth | 3.9" |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Fluorescent Lighting Amps Rating | 30A |
| Frame Size | Not Applicable |
| Frequency | 60 Hz |
| Full Load Amps | 30A |
| Full Load Inductive Amps | 30A |
| Height | 7 2/5" |
| Horsepower @ Single Phase | 2 hp |
| Horsepower @ Single Phase - 120v Ac | 1 hp |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 208v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 15 hp |
| Hp @ 1 Phase - 120v | 1 hp |
| Hp @ 1 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 208v | 3 hp |
| Hp @ 3 Phase - 230v | 5 hp |
| Hp @ 3 Phase - 240v | 5 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 15 hp |
| Hz | 60 Hz |
| Incandescent Lighting Current Rating | 20A |
| Includes Shunt | Not Applicable |
| Inductive Full Load Amps | 30A |
| Input Control For Mechanical Latching | 2-Wire |
| Led Lighting Current Rating | 10A |
| Lighting Compatability | Flourescent Lighting, Led Lighting |
| Lighting Contactor Style | Mechanically Held Lighting Contactor |
| Main Pole Contact Form | 12NO |
| Maximum Operating Temperature | 104°F |
| Minimum Operating Temperature | -13°F |
| Mounting Postion | Vertical |
| Mounting Style | Surface |
| Nema Enclosure Material | Not Applicable |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Normally Open Main Contacts | 12 |
| Number Of Poles | 12 |
| Overall Depth | 3.9" |
| Overall Height | 7 2/5" |
| Overall Width | 4 1/5" |
| Resistive Full Load Amps | Not Applicable |
| Reversing Capability | Non-reversing |
| Series | CR460 Series |
| Tungsten Lighting Current Rating | 20A |
| Width | 4 1/5" |
Shipping Info:
| Ship weight (kg) | 1.59 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 19.05 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Resistive Full Load Amps | Coil Volts | Contactor Type | Height | Hz | Depth | Hp @ 3 Phase - 480v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CR463L20AJA | 2 | Not Applicable | 120V AC | Electrically Held | 7 2/5" | 50/60 Hz | 3.9" | 10 hp | €441.89 | |
 |
CR463L20AJA10A0 | 2 | Not Applicable | 120V AC | Electrically Held | 10" | 50/60 Hz | 4.63" | 10 hp | €597.67 | |
|
CR463L20ANA | 2 | Not Applicable | - | Electrically Held | 7 2/5" | 50/60 Hz | 3.9" | 10 hp | €544.90 | |
|
CR463L20ANA10A0 | 2 | Not Applicable | - | Electrically Held | 10" | 50/60 Hz | 4.63" | 10 hp | €573.91 | |
 |
CR463L40AJA | 4 | Not Applicable | 120V AC | Electrically Held | 7 2/5" | 50/60 Hz | 3.9" | 10 hp | €709.90 | |
 |
CR463L40AJA10A0 | 4 | Not Applicable | 120V AC | Electrically Held | 10" | 50/60 Hz | 4.63" | 10 hp | €835.47 | |
|
CR463L40ANA | 4 | Not Applicable | - | Electrically Held | 7 2/5" | 50/60 Hz | 3.9" | 10 hp | €741.43 |
