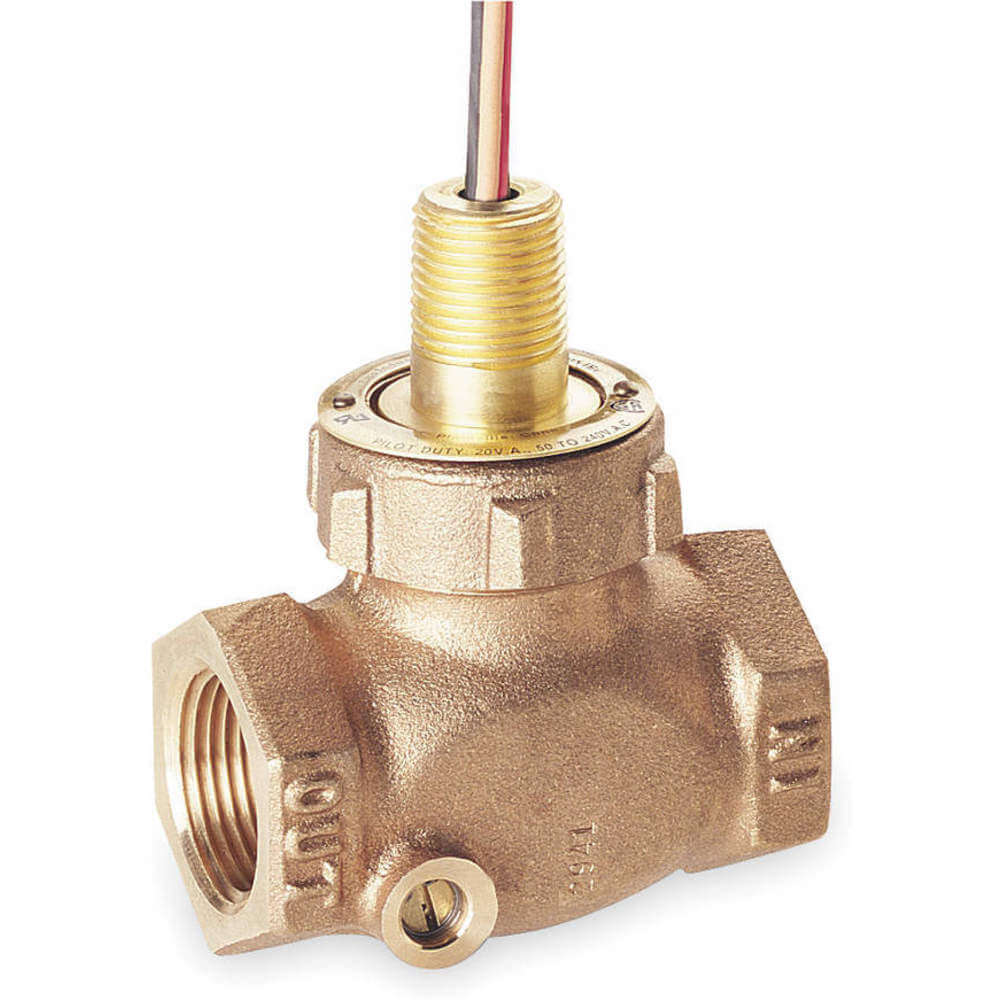

GEMS SENSORS FS-200 26615 Liquid Flow Switch Shuttle Spdt 20va
Item: AA8WKUModel: FS-200 26615Cross Ref: 1ALD5
7 In Stock
Ships within 2 days via
10.00% off
€489.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Liquid Flow Switch |
| Connection | 1" FNPT |
| Connection Size | 1" |
| Connection Type | FNPT |
| Contact Rating | 20 VA |
| Contact Rating (dc) | 20V |
| Filter Rating - Maximum | 150 µm |
| Flow Rate - Maximum | 6 GPM |
| Flow Rate - Minimum | 1 GPM |
| Flow Rate Range | 1-6 GPM |
| Flow Switch Type | Piston |
| Hazardous Location Rating | Class I, DIV 2, Group A, B, C, D |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
| Height | 3" |
| Housing Material | Bronze |
| Length | 3.3" |
| Max. Ambient Temp. | 200°F |
| Max. Filter Rating | 150 µm |
| Max. Flow Rate | 6 GPM |
| Max. Media Temp. | 200°F |
| Max. Pressure | 400 psi |
| Media Temp. Range | -20°F to +200°F |
| Min. Ambient Temp. | -20°F |
| Min. Flow Rate | 1 GPM |
| Min. Fluid Temp. | -20 F |
| Min. Media Temp. | -20°F |
| Overall Height | 3" |
| Overall Length | 3.3" |
| Overall Width | 1 4/5" |
| Recommended Filtration (microns) | 150 µm |
| Series | FS-200 Series |
| Set Point Configuration | Adjustable |
| Set Point Type | Adjustable |
| Switch Position | Normally Closed, Normally Open |
| Switch Type | SPDT |
| Type | Shuttle |
| Wetted Material | Stainless Steel, Bronze, Ceramic, PTFE, Viton |
| Wetted Material Grade | Grade 316 |
| Width | 1.8" |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 9.91 |
| Ship width (cm) | 6.6 |
| HS code | 8481809015 |
| Country of Origin | US |
Product Variants
| Model | Connection Size | Min. Flow Rate | Max. Flow Rate | Max. Pressure | Media Temp. Range | Max. Ambient Temp. | Height | Max. Filter Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FS-200 26616 | 1" | 5 GPM | 15 GPM | 400 psi | -20°F to +200°F | 200°F | 3" | 150 µm | €570.23 | |
| FS-200 26838 | 1" | 2 GPM | 8 GPM | 400 psi | -20°F to +200°F | 200°F | 3" | 150 µm | €543.42 | |
| FS-10798 25364 | 1/2" | 0.5 GPM | 20 GPM | 1000 psi | -20°F to +300°F | 300°F | 2" | 50 µm | €1,560.15 |
