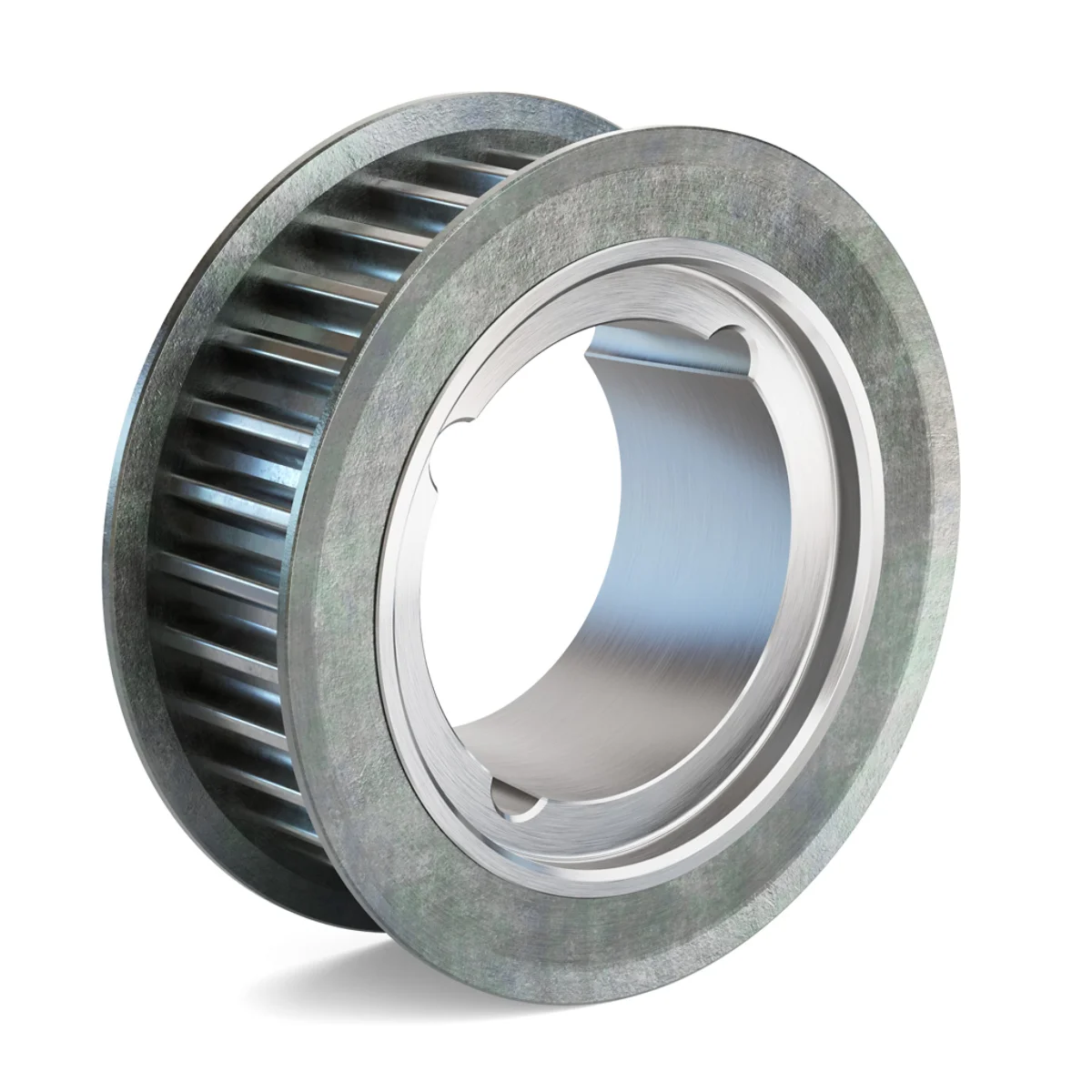

GATES F14MX-180S-37 Sprocket, 1.46 Inch Belt Width, 37mm Width
Get it by Tuesday, Aug 18
€1,731.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pulley |
| Belt Width | 1.46" |
| Bore Dia. | 7/8" to 3 1/4" |
| Bore Type | Taper Lock |
| Bushing Style | Taper Lock |
| Bushing Type | 3020 |
| Face Width | 2.06" |
| Hub Dia. | 6 1/4" |
| Material | Cast Iron |
| Max. Bore | 3 1/4" |
| Min. Bore | 7/8" |
| No. Of Grooves | 180 |
| Outside Dia. | 31.47" |
| Pitch | 14 mm |
| Pitch Dia. | 31.58" |
| Rim Speed | 33.02 mps , 6500 FPM |
| Series | 7719 Series |
| Suitable For Use With | 37 mm W Poly Chain Belt |
| Width | 37 mm |
Shipping Info:
| Ship weight (kg) | 54 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Pitch Dia. | Face Width | Material | Bore Dia. | Flange Dia. | Belt Width | No. Of Grooves | Bushing Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 37-IDL-SPRK | 5.236" | 2 1/16" | - | - | 5.15" | 1.46" | 30 | Taper Lock | €721.11 | |
| 20-IDL-SPRK | 5.263" | 1 3/8" | - | - | 5.15" | 0.78" | 30 | Taper Lock | €652.82 | |
| 125-IDL-SPRK | 5.965" | 5 5/8" | - | - | 5.86" | 4 23/25" | 34 | Taper Lock | €1,120.93 | |
| 68-IDL-SPRK | 5.965" | 3 11/32" | - | - | 5.86" | 2.67" | 34 | Taper Lock | €894.59 | |
| 14MX-28S-37 | 4 114/125" | 2.06" | Cast Iron | 1/2" to 2 1/8" | 5 2/5" | 1.46" | 28 | Taper Lock | €248.14 | |
| 90-IDL-SPRK | 5.965" | 4 1/4" | - | - | 5.86" | 3.54" | 34 | Taper Lock | €1,008.26 | |
| 14MX-35S-68 | 6.141" | 3.33" | Cast Iron | 7/8" to 3 1/4" | 6.82" | 2 17/25" | 35 | Taper Lock | €424.72 |
