GAST 87R647-VS101-N470X Vacuum Pump, 0.5 hp, 1 Phase, 115-120VAC, 28 Inch Heightg Max Vacuum, 4.8 cfm
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,586.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vacuum Pump |
| Amps Running @ 50 Hz | 5.1A |
| Amps Running @ 60 Hz | 6.2A |
| Current Rating | 5.1/6.2A |
| Duty Cycle | 100% |
| Electrical Connection | Screw Terminals |
| Engine Enclosure Material | Steel |
| Exhaust Location | Top |
| Free Air Flow Rate | 4.8 CFM |
| Frequency | 50/60 Hz |
| Hp | 1/2 hp |
| Inlet Gender | Female |
| Inlet Size | 1 1/4" |
| Inlet Type | NPT |
| Life Expectancy | 2000 hrs. |
| Lubrication Type | Oil Free |
| Max. Operating Temp. | 104°F |
| Max. Pressure | 28 in. hg |
| Max. Sound Level | 55 dBA |
| Max. Speed | 1725 RPM |
| Max. Speed @ 50 Hz | 1425 RPM |
| Max. Vacuum | 28 in. hg |
| Maximum Speed | 1725 RPM |
| Mfr. Series | 87R Series |
| Min. Operating Temp. | 41°F |
| Mount | Face, Foot |
| Mounting Style | Rigid Base |
| Number Of Cylinders | 2 |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Overall Height | 8.66" |
| Overall Width | 5" |
| Phase | Single |
| Piston Type | Rocking |
| Plug Type | Three Prong |
| Power Output | 1/2 hp |
| Power Source | Corded Electric |
| Product Datasheet | gast-87r647-vs101-n470x.pdf |
| Pump Type | Rocking Piston |
| Sound Level | 55 dBA |
| Stroke Length | 7/16" |
| Tank Style | Tankless |
| Thermal Protection | Yes |
| Valve Material | Stainless Steel |
| Valve Type | Relief Valve |
| Voltage | 115-120V |
Shipping Info:
| Ship weight (kg) | 8.6 |
| Ship height (cm) | 27.37 |
| Ship length (cm) | 24.83 |
| Ship width (cm) | 29.91 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Free Air Flow Rate | Inlet Size | Outlet Size | Max. Vacuum | Max. Continuous Pressure | Max. Intermittent Pressure | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

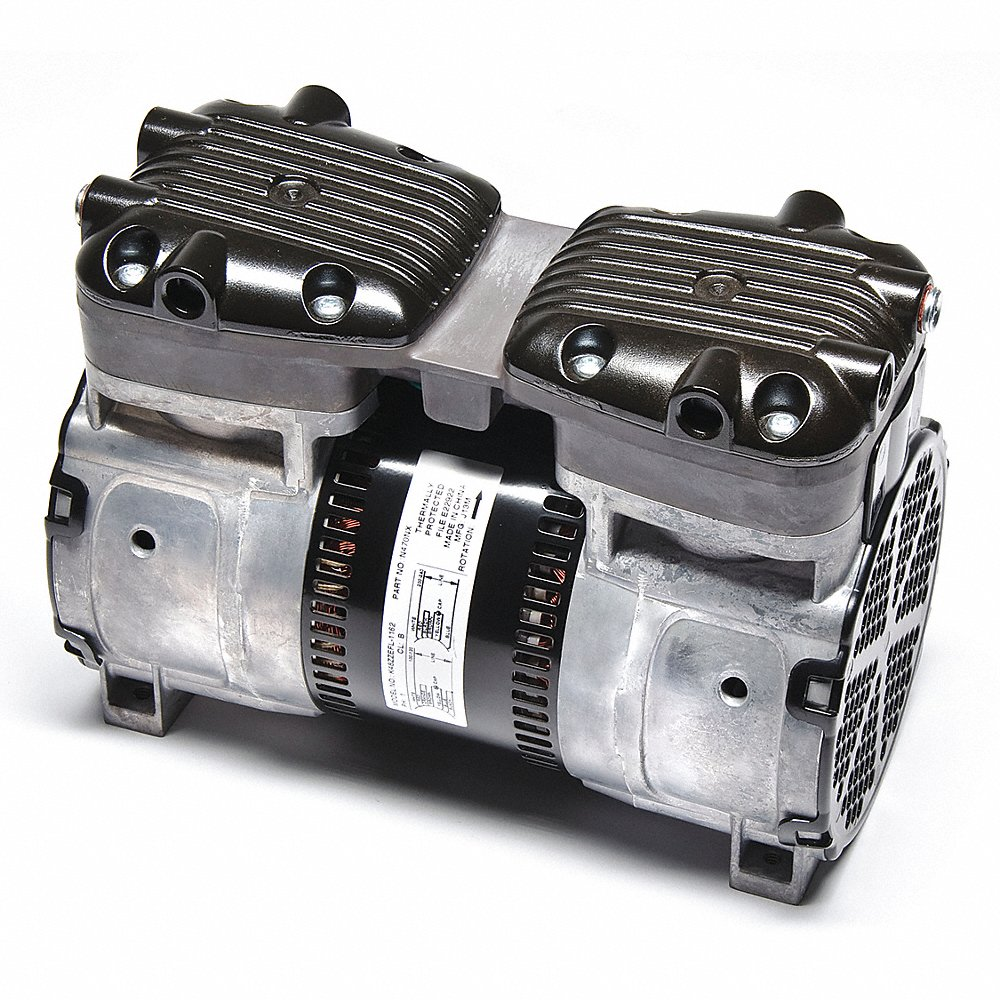

87R645-101-N470X | 4.6 CFM | 1/4" | 1/4" | 27.5 in. hg | - | - | 7 1/8" | 5 1/8" | €1,082.80 | |
 |

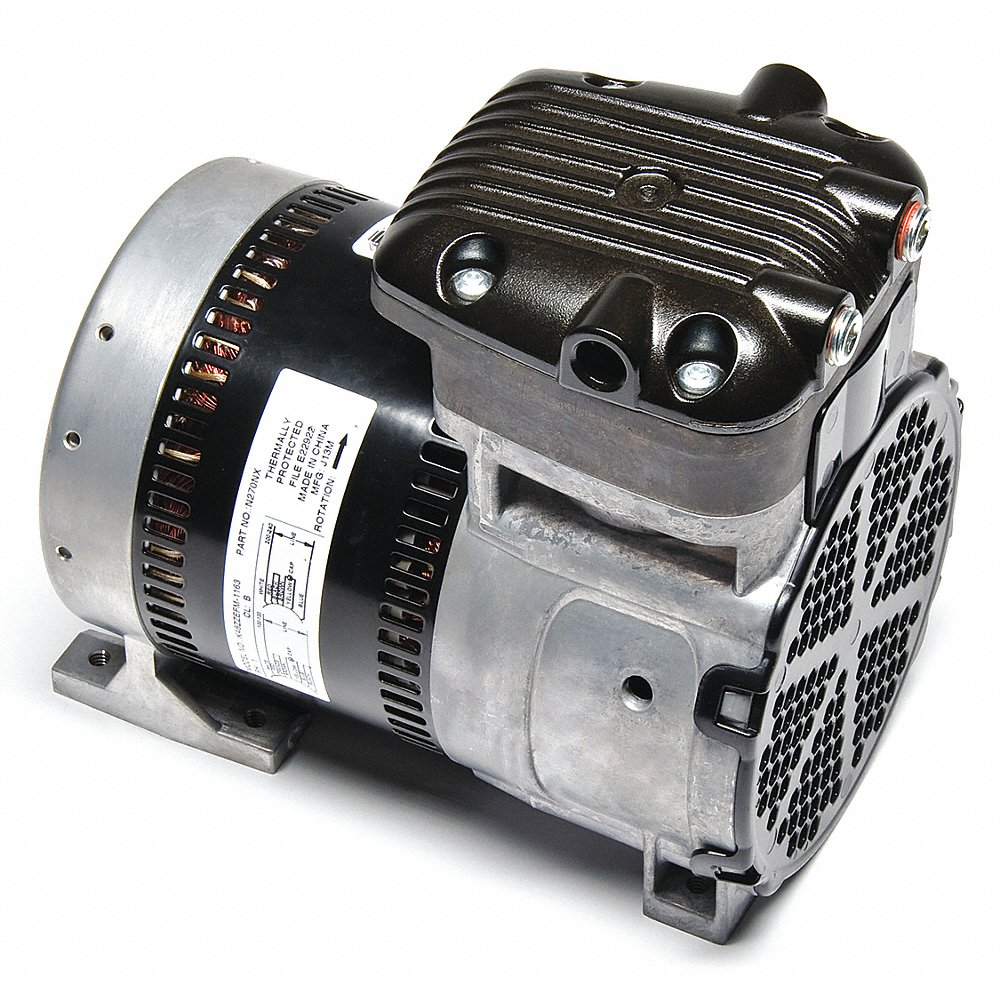

87R135-101-N270X | 2 CFM | 1/4" | 1/4" | 26.5 in. hg | - | - | 7 1/8" | 5 1/8" | €922.13 | |
|
87R642-101R-N470X | 4.3 CFM | 1/4" | 1/4" | 25 in. hg | - | - | 7 1/8" | 5 1/8" | €1,095.70 | |
 |
120R689-P101-N800NX | 12 SCFM | 3/8" | 3/8" | - | - | - | 12 3/5" | 10 1/2" | €4,832.87 | |
 |
87R555-V101-N470X | 2.6 CFM | 1/4" | 1/4" | - | - | - | 7.078" | 5.078" | €1,513.71 | |
 |
86R123-101-N170X | 1.1 CFM | 1/4" | 1/4" | - | - | - | 7.078" | 5" | €1,025.85 | |
|
86R142-P001B-N270X | 2 CFM | 1/4" | 1/4" | - | - | - | 7.078" | 7.312" | €1,125.04 |
