GAST 4LCB-46T-M450GX Piston Air Compressor, 0.5 hp, Horizontal, 20 gal Tank, 4.5 cfm, 50 psi Max Op Pressure
Get it by Friday, Aug 28
5.00% off
€4,614.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Piston Air Compressor |
| Air Tank Style | Horizontal |
| Asme Tank | Yes |
| Compressor/pump Enclosure Material | Aluminum, Plastic |
| Control Type | Pressure Switch |
| Cylinder Material | Aluminum |
| Duty Cycle | 100% |
| Electrical Connection | Screw Terminal |
| Enclosure Rating | IP20 |
| Enclosure Type | Clean Dust Free |
| Engine Enclosure Material | Steel |
| Exhaust Location | Side |
| Finish | Painted |
| Flow | 4.5 CFM |
| Free Air Cfm @ Max. Pressure | 4.5 CFM |
| Frequency | 60 Hz |
| Hp | 1/2 hp |
| Included | Pressure Switch |
| Inlet Gender | Female |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Input Voltage | 115/230V AC |
| Life Expectancy | 16000 hrs. |
| Lubrication Type | Oilless |
| Max. Intermittent Pressure | 50 psi |
| Max. Operating Pressure | 50 psi |
| Max. Operating Temp. | 104°F |
| Max. Pressure | 50 psig |
| Max. Speed | 1725 RPM |
| Mfr. Series | GAST |
| Min. Operating Temp. | 41°F |
| Motor Design | Capacitor Start |
| Motor Type | Capacitor Start |
| Mounting Hole Dia. | 0.056" , 17/25" |
| No. Of Cylinders | 2 |
| Outlet Gender | Female |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Overall Height | 26.69" |
| Overall Length | 33" |
| Overall Width | 32" |
| Phase | 1 |
| Piston Type | Reciprocating |
| Power Output | 1/2 hp |
| Power Source | Corded Electric |
| Product Datasheet | gast-4lcb-46t-m450gx.pdf |
| Pump Type | Piston |
| Series | GAST Series |
| Sound Level | 75 dBA |
| Stroke Length | 9/16" |
| Tank Size | 20 gal. |
| Tank Style | Horizontal |
| Thermal Protection | Yes |
| Valve Material | Stainless Steel |
| Valve Type | Reed |
Shipping Info:
| Ship weight (kg) | 53.1 |
| Ship height (cm) | 73.66 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 76.2 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Overall Height | Outlet Size | Voltage | Max. Pressure | Hp | Flow @ 60 Hz | Max. Intermittent Pressure | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3LBA-251-M300AX | 11 1/4" | 1/4" | 115V AC | - | 1/3 hp | - | 50 psi | 14 1/4" | - | RFQ
|
 |
4LCB-251-M450X | 8 7/8" | 1/4" | 115/230V AC | - | 1/2 hp | - | 50 psi | 12" | - | RFQ
|
 |
7LDE-46S-M750X | 12 1/2" | 1/4" | 115/208-130V | 50 psi | - | 10.5 CFM | 50 psi | 9 4/5" | €5,696.25 | |
 |
3LBA-32-M300AX | 8.11" | 1/4" | 115V | 50 psi | - | - | 50 psi | 11.35" | €2,357.13 | |
 |
4LCB-21-M450X | 8.94" | 1/4" | 115/230V | 50 psi | - | - | 50 psi | 13.14" | €2,762.42 | |
|
5LCA-22-M550NGX | 8.62" | 1/4" | 115/208-230V | 50 psi | - | - | 50 psi | 13.26" | €2,888.78 | |
 |

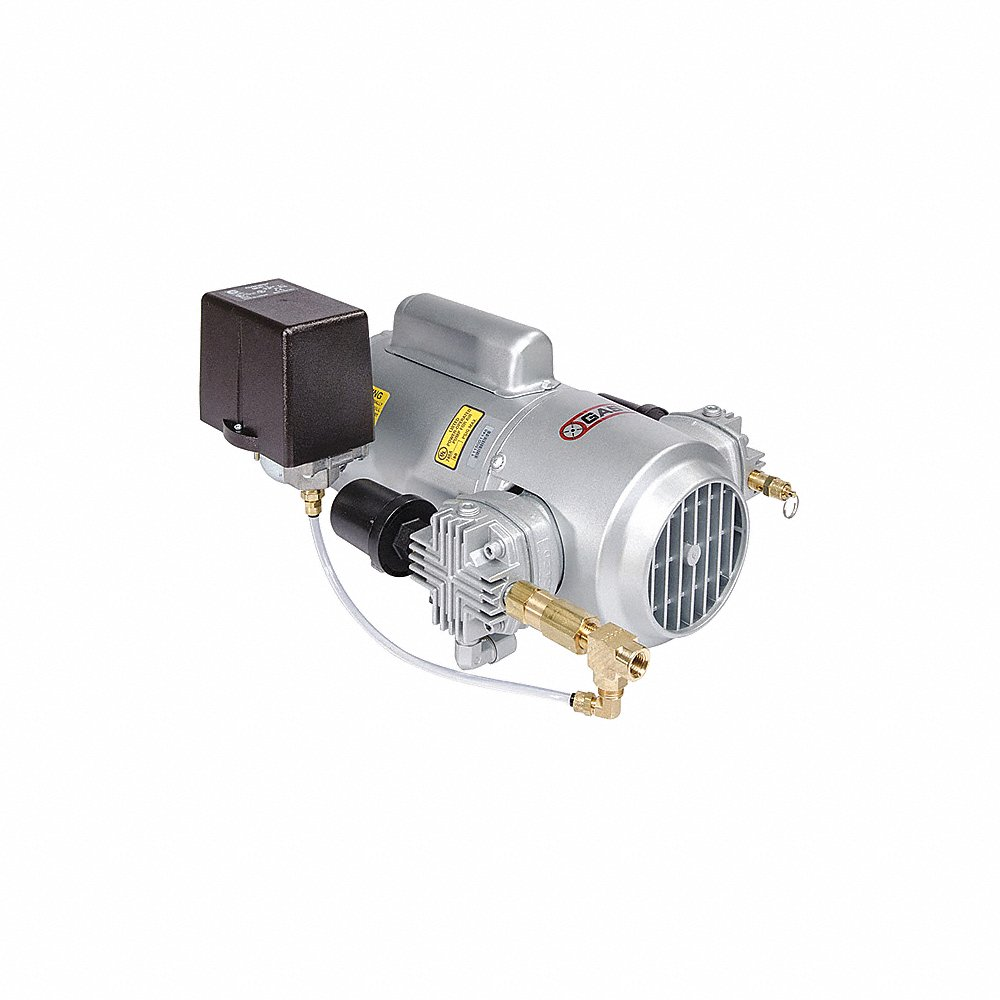

5LCA-46S-M550GX | 8.94" | 1/4" | 115/230V | 50 psi | - | - | 50 psi | - | €2,976.82 |
