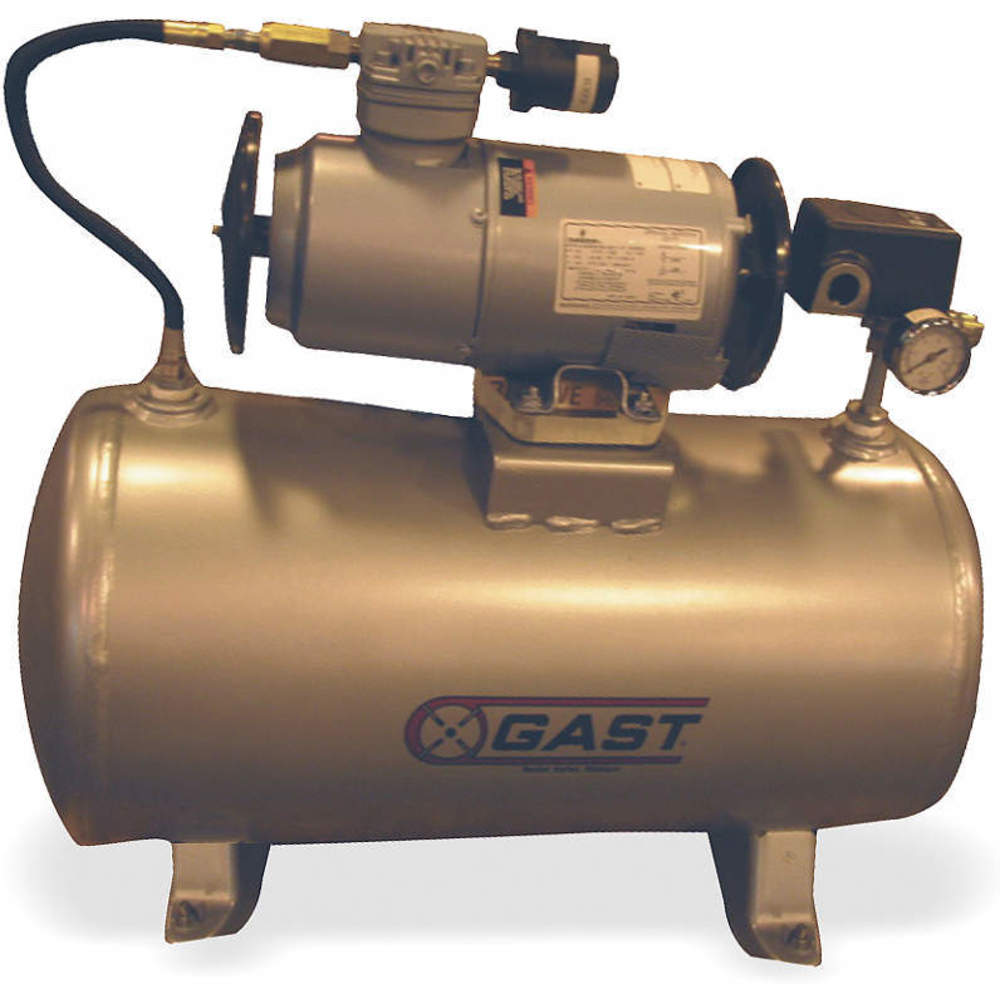

GAST 2LAF-246T-M200EX Electric Air Compressor Tank Mounted
Get it by Wednesday, Dec 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Air Compressor |
| (f)npt Outlet | 1/4" |
| Amps Rating | 5.8A |
| Asme Tank | Yes |
| Compressor Type | Tank Mounted |
| Control Type | Pressure Switch |
| Cylinder Material | Cast Iron |
| Duty Cycle | Continuous |
| Enclosure Type | Open Dripproof |
| Finish | Paint |
| Free Air Flow Rate @ Maximum Pressure | 1.5 CFM |
| Frequency | 60 Hz |
| Hp | 1/4 hp |
| Includes | Check Valve, Inlet Filters, Pressure Safety Valve, Pressure Switch, Tubing And Fittings |
| Inlet Size | 1/4" |
| Input Voltage | 120V AC |
| Lubrication Type | Oil Free |
| Lubrication Type | Oil-Less |
| Max. Pressure | 50 psi |
| Maximum Operating Pressure | 50 psi |
| Maximum Speed | 1750 RPM |
| Motor Type | Open Dripproof |
| Number Of Stages | 1 |
| Off Pressure Switch Setting | 50 |
| Off Pressure Switch Setting | 50 psi |
| On Pressure Switch Setting | 30 |
| On Pressure Switch Setting | 30 psi |
| Outlet Gender | Female |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/4 hp |
| Overall Height | 21" |
| Overall Length | 26" |
| Overall Width | 13" |
| Phase | 1 |
| Pump Location | Top Mount |
| Pump Rpm | 1750 RPM |
| Pump Rpm | 1750 |
| Pump Style | Simplex |
| Pump Type | Piston |
| Tank Size | 2 gal. |
| Tank Style | Hot Dog |
| Tank Type | Horizontal |
Shipping Info:
| Ship weight (kg) | 33.3 |
| Ship height (cm) | 75.69 |
| Ship length (cm) | 77.47 |
| Ship width (cm) | 43.94 |
| HS code | 8414801615 |
| Country of Origin | US |
Product Details:
- ASME Tank (Yes)
