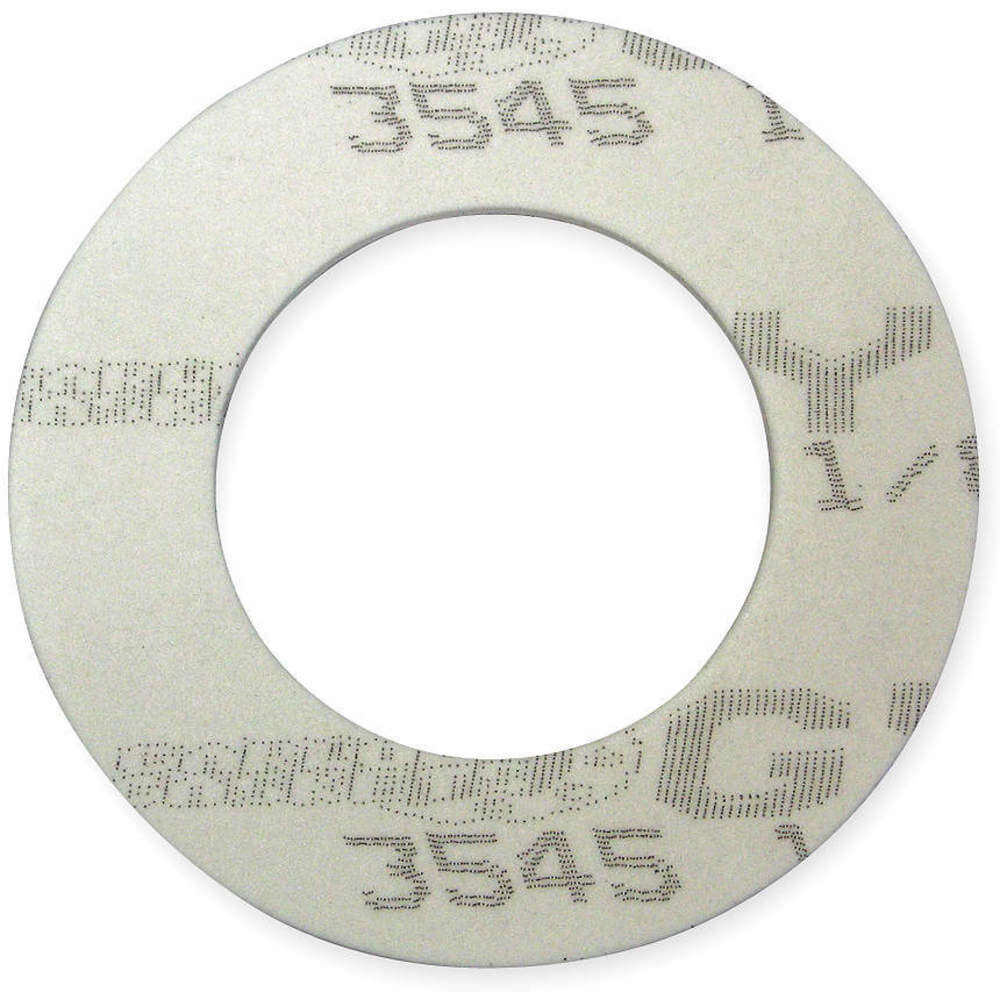

GARLOCK SEALING TECHNOLOGIES 37045-1102 Ring Gasket, 2 Inch Asme B16.5 Class 150, 0.125 Inch Thick
Item: AB3JTAModel: 37045-1102Cross Ref: 1TUX2
7 In Stock
1/8 in
Ships within 2 days via
10.00% off
€36.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Gasket |
| Color | White |
| Fda Approved | Yes |
| For Flange Ansi Class | Class 150 |
| For Fluid Type | Acids, Caustics, Chlorine, Cryogenics, Hydrocarbons |
| For Pipe Size | 2" |
| Gasket Material | PTFE |
| Gasket Type | Ring Gasket |
| Hardness | Not Rated |
| Includes Mounting Hardware | No |
| Inside Dia. | 2 3/8" |
| Material | PTFE |
| Max. Pressure | 1200 psi |
| Maximum Operating Pressure | 1200 psi |
| Maximum Operating Temperature | 500°F |
| Metal Detectable | No |
| Minimum Operating Temperature | -450°F |
| Outside Dia. | 4 1/8" |
| Reinforced | Yes |
| Reinforcement Material | Rigid PTFE |
| Resistance Properties | Chemical Resistant |
| Temp. Range | -450°F to +500°F |
| Type | Ring |
| X-ray Detectable | No |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.51 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 10.67 |
| HS code | 3926904590 |
| Country of Origin | US |
Product Variants
| Model | Inside Dia. | Outside Dia. | Gasket Type | For Pipe Size | Material | Color | Metal Detectable | X-ray Detectable | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 37045-0191 | 1.062" | 2 1/4" | Ring Gasket | 3/4" | PTFE | White | No | No | €6.46 | |
| 37045-0101 | 1.312" | 2 5/8" | Ring Gasket | 1" | PTFE | White | No | No | €8.47 | |
| 37045-0193 | 1.906" | 3 3/8" | Ring Gasket | 1 1/2" | PTFE | White | No | No | €14.44 | |
| 37045-0102 | 2 3/8" | 4.125" | Ring Gasket | 2" | PTFE | White | No | No | €21.06 | |
| 37045-0194 | 2 7/8" | 4.875" | Ring Gasket | 2 1/2" | PTFE | White | No | No | €28.27 | |
| 37045-0103 | 3 1/2" | 5 3/8" | Ring Gasket | 3" | PTFE | White | No | No | €35.67 | |
| 37045-0104 | 4 1/2" | 6 7/8" | Ring Gasket | 4" | PTFE | White | No | No | €58.97 |
