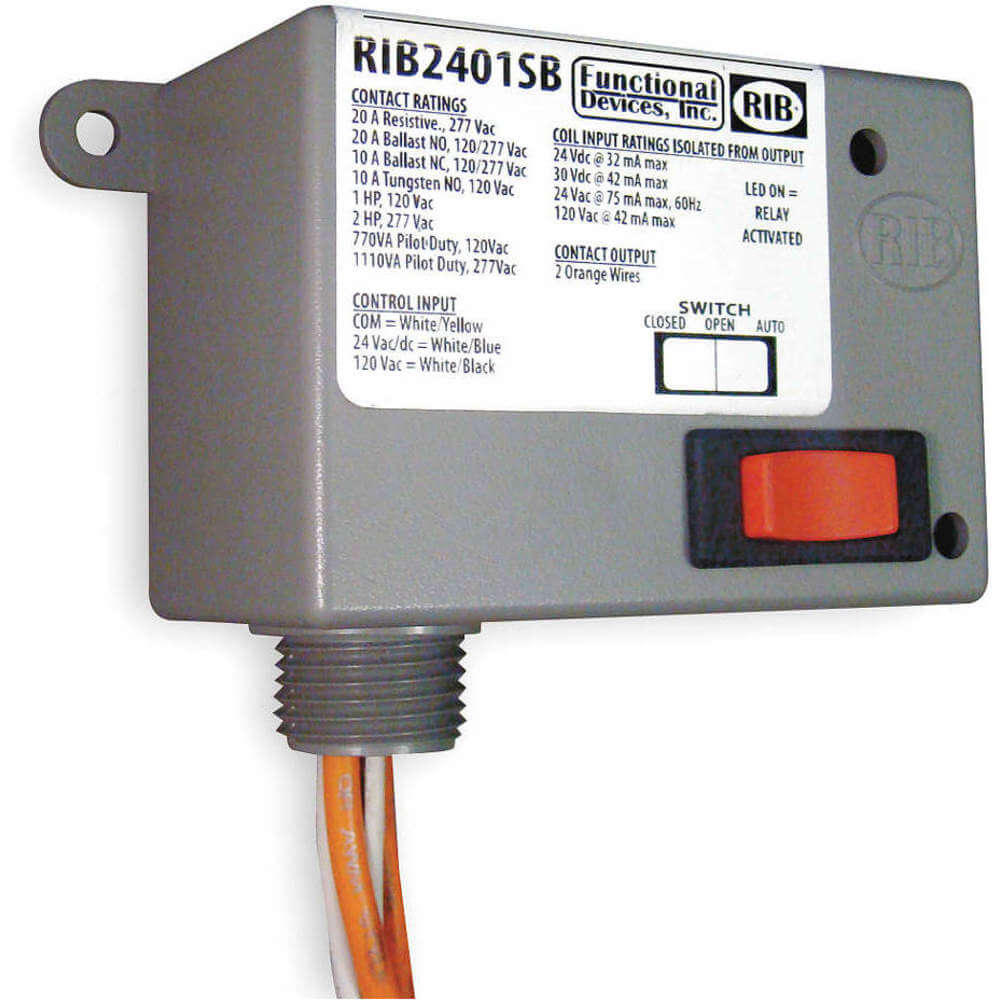

FUNCTIONAL DEVICES INC / RIB RIB2401SB Enclosed Pre-wired Relay, SPST, 20A at 277 VAC, Screw Terminal
Item: AB9QMCModel: RIB2401SBCross Ref: 2ETA7
7 In Stock
Ships within 2 days via
5.00% off
€67.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Pre-Wired Relay |
| Ac Contact Rating | 20A @ 277V |
| Amps | 20A |
| Application | Power |
| Body Depth | 1.8" |
| Body Height | 1.8" |
| Body Width | 3.2" |
| Coil Voltage | 24V AC/DC/120V AC |
| Contact Amps Rating (resistive) | 20A |
| Contact Form | SPST, NO |
| Contact Material | Silver Cadmium Oxide |
| Contact Rating (ac) | 10A @ 277V, 20A @ 277V |
| Contact Type | 1-SPST |
| Depth | 1 4/5" |
| Electrical Connection Type | Wire Lead |
| Enclosure Type | NEMA 1 |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Frequency | 50/60 Hz |
| Function Type | Enclosure |
| Height | 2.3" |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Indicator Type | LED |
| Lcd | Surface |
| Lead Length | 16" |
| Max. Operating Temp. | 140°F |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -30°F |
| Mount | Override Switch Mount |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Nema Rating | {n{n1}} |
| Nipple Size | 0.5" |
| Nipple Size Type | NPT |
| Overall Depth | 1 4/5" |
| Overall Height | 2.3" |
| Relay Mounting Style | Surface |
| Response Time | 18 ms |
| Sealing | Enclosed |
| Status Indicator | LED Indicator |
| Type | Plastic Box |
| Width | 3 1/5" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 6.6 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Details:
Functional Devices RIB RIB2401SB enclosed pre-wired relay is suitable for controlling high-voltage appliances using low-voltage signals. It is used for managing exhaust fans, vacuums and motors. This relay responds to input voltages, enabling them to open or close their contacts, thereby controlling loads' ON / OFF switching.
Features:
- This relay comes with wire lead electrical connections, providing a reliable and straightforward interface.
- It has a single-pole, single-throw, normally open contact form, allowing for versatile control configurations.
- This relay has a rapid response time of 18 milliseconds, ensuring prompt and efficient switching.
Frequently Asked Questions:
Q. What is the operating temperature of Functional Devices RIB2401SB enclosed pre-wired relay?
A. It operates within a temperature range of -30 to 140 degrees F.
Q. What is the mechanical operating durability of this device?
A. It has a mechanical operating durability of 10000000 operations.
Q. Does Functional Devices RIB21CDC enclosed pre-wired relay show the real-time status?
A. The equipped LED status indicator provides visual feedback, indicating the operational state of the relay.
Product Variants
| Product | Model | Coil Voltage | Hp @ 120v | Hp @ 240v | Overall Depth | Overall Height | Contact Form | Response Time | For Use With | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RIBU1C-N4 | 10-30V AC/DC/120V AC | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 1/2" | 1.7" | SPDT | 20 ms | Exhaust Fans, Motors, Vacuums | €58.97 | |
 |
RIBH1S | 10-30V AC/DC/208-277V AC | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 2.3" | SPST, NO | 20 ms | Exhaust Fans, Motors, Vacuums | €71.11 | |
 |
RIBU1S | 10-30V AC/DC/120V AC | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 2.3" | SPST, NO | 20 ms | Exhaust Fans, Motors, Vacuums | €62.04 | |
 |
RIBL3C | 10-30V AC/DC | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 4" | 3PST/NO | 20 ms | Exhaust Fans, Motors, Vacuums | €105.31 | |
 |
RIBL4C | 10-30V AC/DC | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 4" | SPDT/3PST/NO | 20 ms | Exhaust Fans, Motors, Vacuums | €141.41 | |
 |
RIB2401D | 24V AC/DC/120V AC | 1/2 hp, 1/3 hp | 1/2 hp, 1/3 hp | 1 1/2" | 1.7" | DPDT | 8 ms | Exhaust Fans, Motors, Vacuums | €50.35 | |
 |
RIB2402D | 24V AC/DC/208-277V AC | 1/3 hp | 1/2 hp, 1/3 hp | 1 1/2" | 1.7" | DPDT | 8 ms | Exhaust Fans, Motors, Vacuums | €58.61 |
