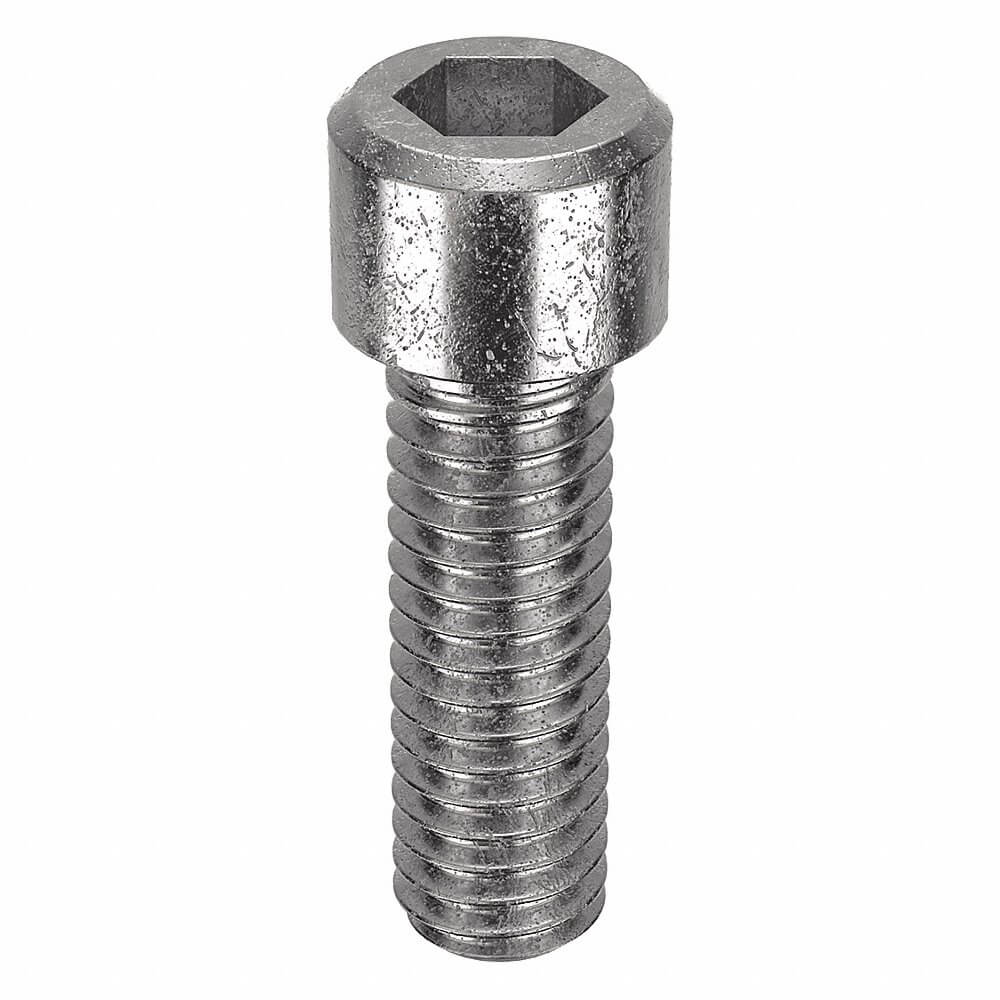

FOREVERBOLT FB3SCAPS516181P10 Socket Head Cap Screw, 5/16 In - 18 Thread Size, Socket, 1 In Lg.
Item: AH7CLJModel: FB3SCAPS516181P10Cross Ref: 36RK08
7 In Stock
Ships within 2 days via
€33.54 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | 18-8 Stainless Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 1/4" |
| Drive Type | Socket |
| Finish | NL-19 |
| Grade | Grade 316 |
| Hardness | Rockwell B70-B95 |
| Head Dia. | 0.468" |
| Head Height | 0.312" |
| Head Type | Standard |
| Length | 1" |
| Material | Stainless Steel |
| Material Grade | Grade 18-8 |
| Material Grade/class | 18-8 |
| Material Type | Stainless Steel |
| Max. Temp. | 300°F |
| Min. Temp. | -65°F |
| Min. Tensile Strength | 80000 psi |
| Min. Thread Length | 1" |
| Screw Length | 1" |
| System Of Measurement | Imperial |
| Tensile Strength | 80000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Size | 5/16"-18 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 7.87 |
| Ship width (cm) | 6.35 |
| Country of Origin | TW |
Product Details:
- Self-Locking Element : No
Product Variants
| Product | Model | Thread Size | Min. Thread Length | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Grade | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FBSCAPS63212P100 | #6-32 | 1/2" | 7/64" | 0.226" | 0.138" | 80000 psi | Rockwell B80-C32 | Grade 18-8 | 100 | €47.34 | |
 |
FBSCAPS83238P100 | #8-32 | 3/8" | 9/64" | 0.27" | - | 80000 psi | Rockwell B80-C32 | Grade 18-8 | 100 | €62.71 | |
 |
FBSCAPS83212P100 | #8-32 | 1/2" | 9/64" | 0.27" | 0.164" | 80000 psi | Rockwell B80-C32 | Grade 18-8 | 100 | €55.62 | |
 |
FBSCAPS83234P100 | #8-32 | 3/4" | 3/32" | 0.27" | - | 80000 psi | Rockwell B80-C32 | Grade 18-8 | 100 | €65.02 | |
 |
FBSCAPS102412P100 | #10-24 | 1/2" | 5/32" | 5/16" | 0.19" | 80000 psi | Rockwell B80-C32 | Grade 18-8 | 100 | €59.05 | |
 |
FBSCAPS102434P100 | #10-24 | 3/4" | 5/32" | 5/16" | 0.19" | 80000 psi | Rockwell B80-C32 | Grade 18-8 | 100 | €64.32 | |
 |
FBFTSCAPS103238P100 | #10-32 | 3/8" | 5/32" | 5/16" | 0.19" | 80000 psi | Rockwell B80-C32 | Grade 18-8 | 100 | €58.49 |
